USD

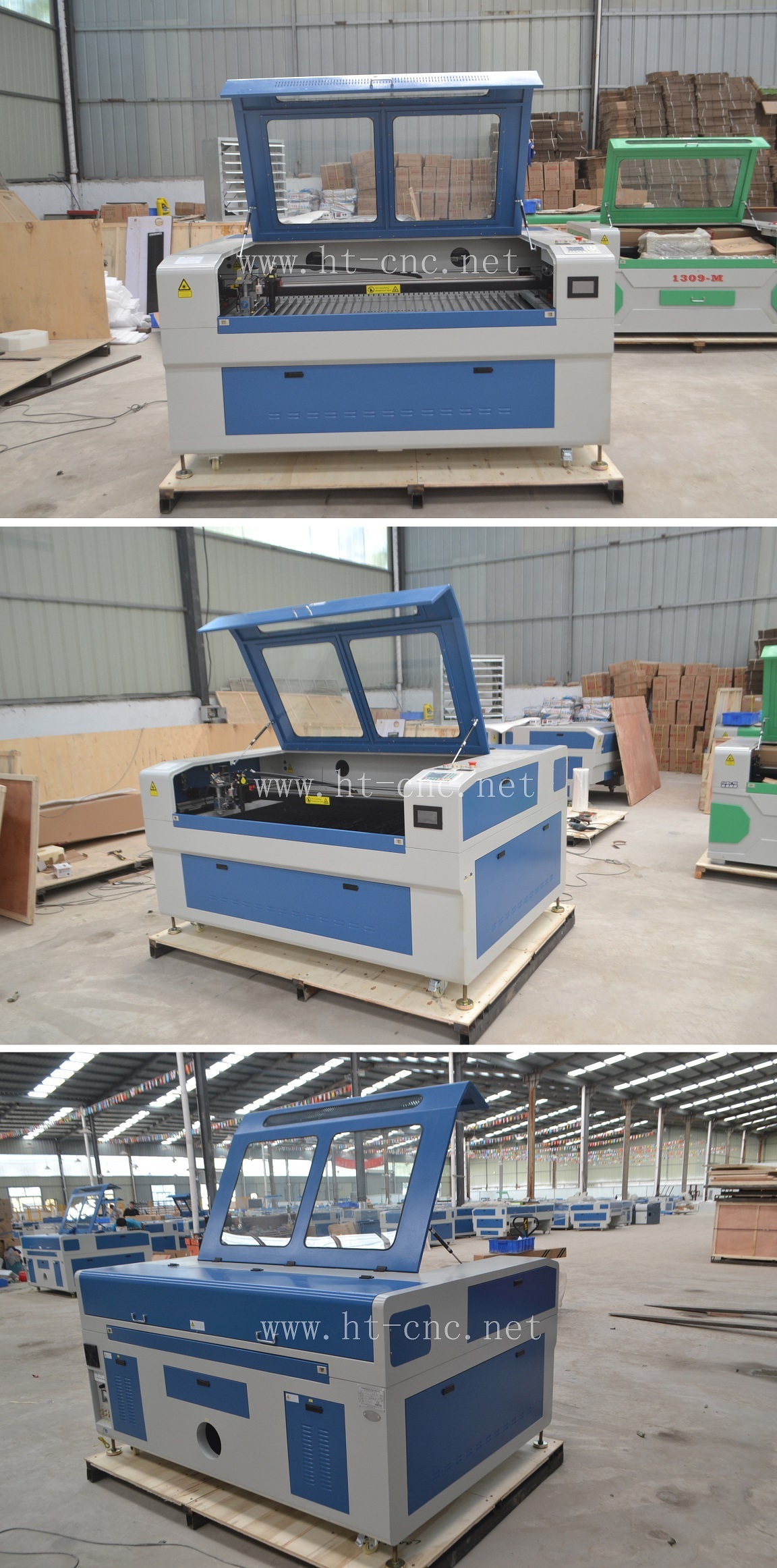

1390 double heads mixed laser cutting engraving machine for wood/metal
Characteristic
This double heads laser cutting machine is a kind of laser machine system equipped with two Co2 laser tube and two heads,the metal head used to cut Metal and nonmetal such as acrylic, PVC, rubber sheet, plastic, wood, bamboo, leather, cloth, double-color board, etc,the small head used for engraving nonmetal material.
Performance parameter
Model | Laser cutting machine(HT-1390) |
Working area | 130cm*90cm / 47in*35in |
Equipment Dimension | 175cm*131cm*107cm69in*52in*42in(L*W*H) |
Laser power | 150W/180/200W/260W |
Laser type | CO2 sealed laser tube,water-cooled |
Engraving speed | 0-6000cm/min |
Cutting speed | 0-5000cm/min |
Power supply | 220V/50HZ,110V/60HZ |
Graphic format supported | BMP, PLT, DST, DXF, AI |
Software supported | CorelDraw, PhotoShop, AutoCAD,TAJIMA |
Driving system | stepper motor |
Net Weight | 400kg |
Optional parts | UP-down worktble,Rotary axis |
Applicable material | Acrylic, crystal, glass, ceramic, marble, metal coating, cloth, fabric, wood ,metal,etc. |
Power and cutting thickness
| W6(150W) | W8(180W) | Yongli 280W | Yongli 300W |
acrylic | 20mm | 25mm | 30mm | 30mm |
plywood | 15mm | 20mm | 20mm | 20mm |
MDF | 10mm | 15mm | 20mm | 20mm |
stainless steel | 1mm | 2mm | 3mm | 3mm |
carbon steel | 1.5mm | 2mm | 3mm | 3mm |
Producing Process：
Company Profile：
Jinan Hopetool CNC Equipment Co.Ltd. is located in Jinan, Shandong Province, China. The company integrates production and trade, and has ten years of production experience. Its main products include CNC routes, laser machines, fiber laser cutting machines, etc. Our products have complete CE, ISO, SGS, high tech company certificate and other certificates, and we have export certificates, which can be sold all over the world.
Certificate：
Customer Photos：
FAQ：
Q1.How to get the most suitable machine and best price
Please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2.What is the payment?
The payment is 30% or 50% T/T or Alibaba trade assurance in advance, balance after machine finished.
Q3.What is the producing time after order?
The proucing time is about 10-20 days depend on different machines.
Q4.If we don't know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q5.How about your after-sales service?
we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.
Q6. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory.
The testing video and pictures will be available before delivery.
