Hopetool CNC router and laser machine
7%OFF
  • 4*8 wood cnc router with pressure wheel 4*8 wood cnc router with pressure wheel wood cnc router,cnc router 1325,wood engraving machine
  • 4*8 wood cnc router with pressure wheel 4*8 wood cnc router with pressure wheel wood cnc router,cnc router 1325,wood engraving machine

4*8 wood cnc router with pressure wheel

stars, based on ( 0 )reviews
$2497.03now$2330.56 unit
95items available
4*8 wood cnc router with pressure wheel 4*8 wood cnc router with pressure wheel wood cnc router,cnc router 1325,wood engraving machine
Characteristic:
1.Water or air cooling spindle,high precision,long life time,steady working,easy to start up.
2.thicken square pipe stucture ,well welded, no distortion for whole structure high precision ,and long life time.
3.DSP controller system with USB interface,working without connecting with computer during working and easy to control.
4.Software:CAD/CAM designing software such as type3/artcam/castmate/weitai etc.
5.auto oilling system ,easy to operate by pressing one key.
6.seperated control system makes operation easily.
7.Adopt high speed stepper motor and drivers,and two motors for Y axis.max speed is 25mm/min.
8.The vacuum table holds tightly the carving materials which makes operating more reliable and convenient.

Performance parameter:
Description
parameter
XYZ working area
1300*2500*200mm
Table size
1310*3000mm
XYZ travel positioning accuracy
±0.01mm
XYZ repositioning positioning accury
±0.01mm
Table surface
Bakelite sheet
Grantry
steel
Drive system X-Y axis
rack
Drive system Z axis
Ball screw
Spindle power
3/5.5KW
Max velocity
50m/min
Max working speed
25m/min
Spindle speed
0-24000rmp
Work mode
step(optional servo)
Working voltage
AC220V/380V
Command language
G code
Interface
USB
Operating system
DSP/Mach3/Ncstudio
Flash memory
128
X-Y resolution
0.025mm
Software environment
Wentai type3 artcam
Running environment
Temperature:0-45°C
Paking size
3300*1900*1900mm
Net weight
1000 kg
Gross weight
1200 kg
4*8 wood cnc router with pressure wheel 4*8 wood cnc router with pressure wheel wood cnc router,cnc router 1325,wood engraving machine
4*8 wood cnc router with pressure wheel 4*8 wood cnc router with pressure wheel wood cnc router,cnc router 1325,wood engraving machine
4*8 wood cnc router with pressure wheel 4*8 wood cnc router with pressure wheel wood cnc router,cnc router 1325,wood engraving machine
4*8 wood cnc router with pressure wheel 4*8 wood cnc router with pressure wheel wood cnc router,cnc router 1325,wood engraving machine
4*8 wood cnc router with pressure wheel 4*8 wood cnc router with pressure wheel wood cnc router,cnc router 1325,wood engraving machine

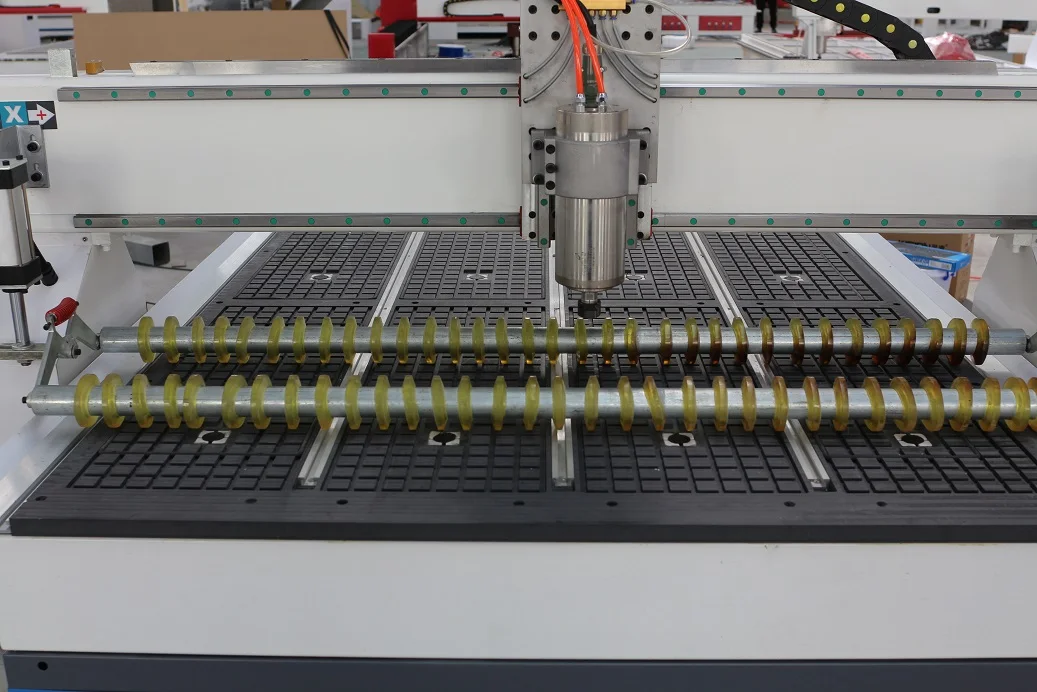

Details Images
4*8 wood cnc router with pressure wheel 4*8 wood cnc router with pressure wheel wood cnc router,cnc router 1325,wood engraving machine



The machine bed with many tubes, it ensure the table don’t sink.




The strip steel for guide with many small tripod ,it ensure the guide don’t bend.
4*8 wood cnc router with pressure wheel 4*8 wood cnc router with pressure wheel wood cnc router,cnc router 1325,wood engraving machine
4*8 wood cnc router with pressure wheel 4*8 wood cnc router with pressure wheel wood cnc router,cnc router 1325,wood engraving machine




High quality guide Hiwin brand,make sure with high accuracy.





Use famous Leashine driver,it with longtime life .
4*8 wood cnc router with pressure wheel 4*8 wood cnc router with pressure wheel wood cnc router,cnc router 1325,wood engraving machine
4*8 wood cnc router with pressure wheel 4*8 wood cnc router with pressure wheel wood cnc router,cnc router 1325,wood engraving machine




With automatic lubrication system, so it can lubricate more easily.




All connection with mark, so it is easy to maintacne the electrical parts
4*8 wood cnc router with pressure wheel 4*8 wood cnc router with pressure wheel wood cnc router,cnc router 1325,wood engraving machine
4*8 wood cnc router with pressure wheel 4*8 wood cnc router with pressure wheel wood cnc router,cnc router 1325,wood engraving machine




With filter, to reduce electronic magenic interference,so the machine with high perfomance.





With foot cushions,it can adjust the planeness easily.
4*8 wood cnc router with pressure wheel 4*8 wood cnc router with pressure wheel wood cnc router,cnc router 1325,wood engraving machine
4*8 wood cnc router with pressure wheel 4*8 wood cnc router with pressure wheel wood cnc router,cnc router 1325,wood engraving machine

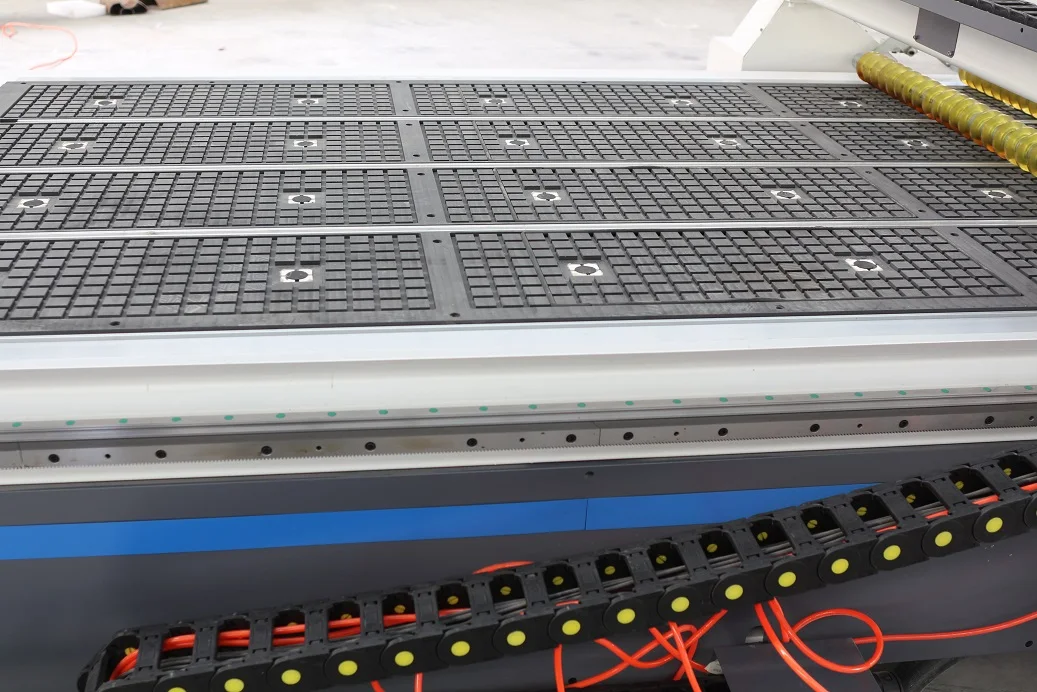

Vacuum table with T solt ,It can fix material use both vacuum table and mechanical plate.
Main Parts
4*8 wood cnc router with pressure wheel 4*8 wood cnc router with pressure wheel wood cnc router,cnc router 1325,wood engraving machine
4*8 wood cnc router with pressure wheel 4*8 wood cnc router with pressure wheel wood cnc router,cnc router 1325,wood engraving machine
Working Samples
4*8 wood cnc router with pressure wheel 4*8 wood cnc router with pressure wheel wood cnc router,cnc router 1325,wood engraving machine
Producing Process
4*8 wood cnc router with pressure wheel 4*8 wood cnc router with pressure wheel wood cnc router,cnc router 1325,wood engraving machine
4*8 wood cnc router with pressure wheel 4*8 wood cnc router with pressure wheel wood cnc router,cnc router 1325,wood engraving machine
4*8 wood cnc router with pressure wheel 4*8 wood cnc router with pressure wheel wood cnc router,cnc router 1325,wood engraving machine
