Cnc Router Of Metal Mold And Stone 6090

• ●Gantry structure: Cnc Router Of Metal Mold And Stone 6090 machine is composed of a welded steel pipes  bed, two side columns and a top crossbeam (gantry) , forming a rigid and stable frame that does not deform after long-term use.
• ●Guide rails: The X/Y/Z axes use Hiwin linear square rails to ensure high precision, high rigidity and long life. The Z axis uses double guide rails to enhance stability.
• ●Screw drive: The X-Y-Z axis usually uses Taiwan TBI precision-ground ball screws to ensure transmission accuracy.
• ●Servo motor: AC servo motors have faster response speed and higher precision when working.
• ●Spindle: 5.5kw water-cooled variable frequency spindle, which can automatically change tools, has fast processing speed, greater power, better heat dissipation, is suitable for long-term heavy cutting, and has relatively low noise.
• ●Speed ​​range: Usually 6000 - 24000 RPM. High speed is suitable for fine processing and small tool engraving; low speed is suitable for cutting and heavy cutting (such as hardwood and aluminum plates).

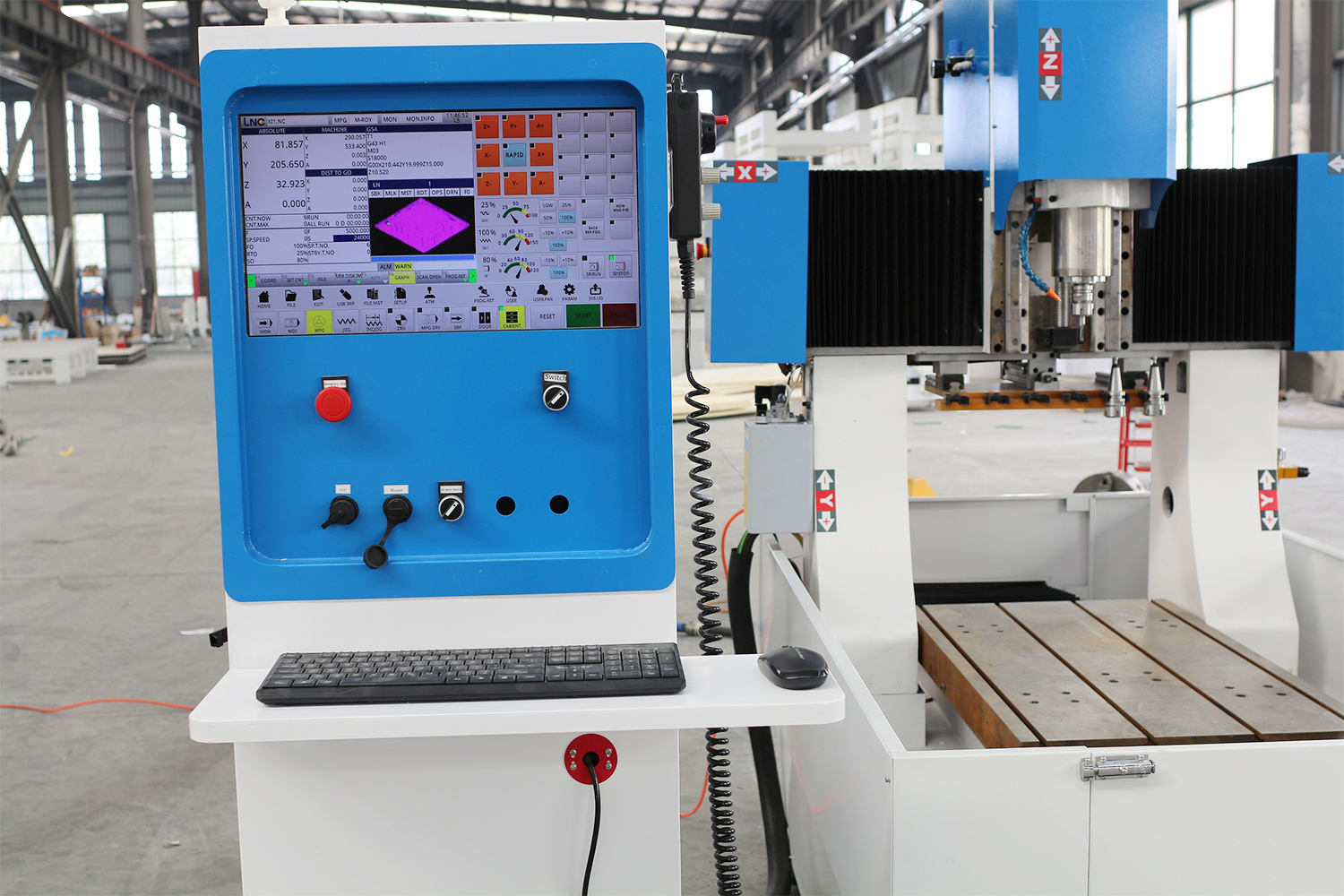

• ●Control system: LNC numerical control system, powerful functions, can be operated online.

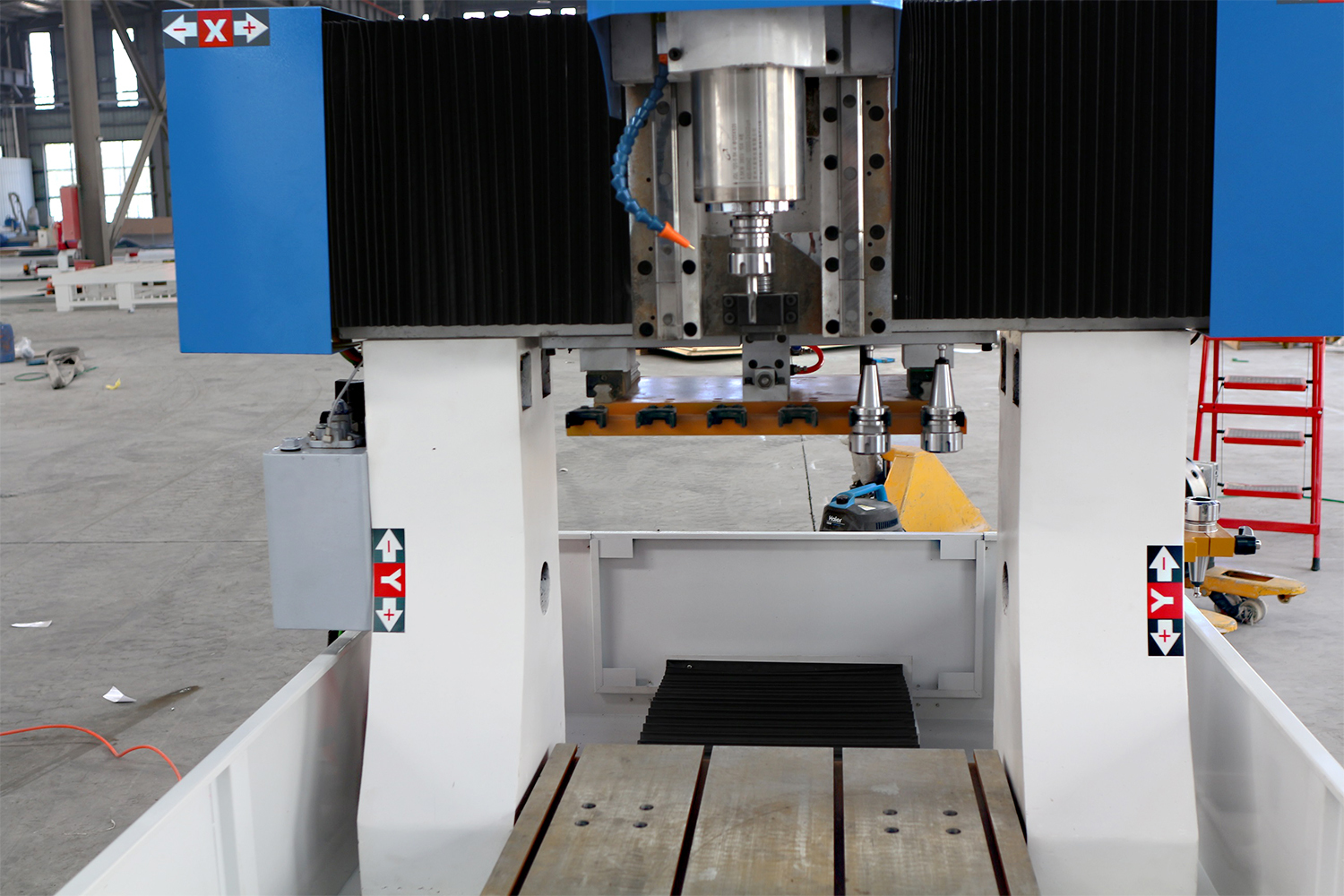

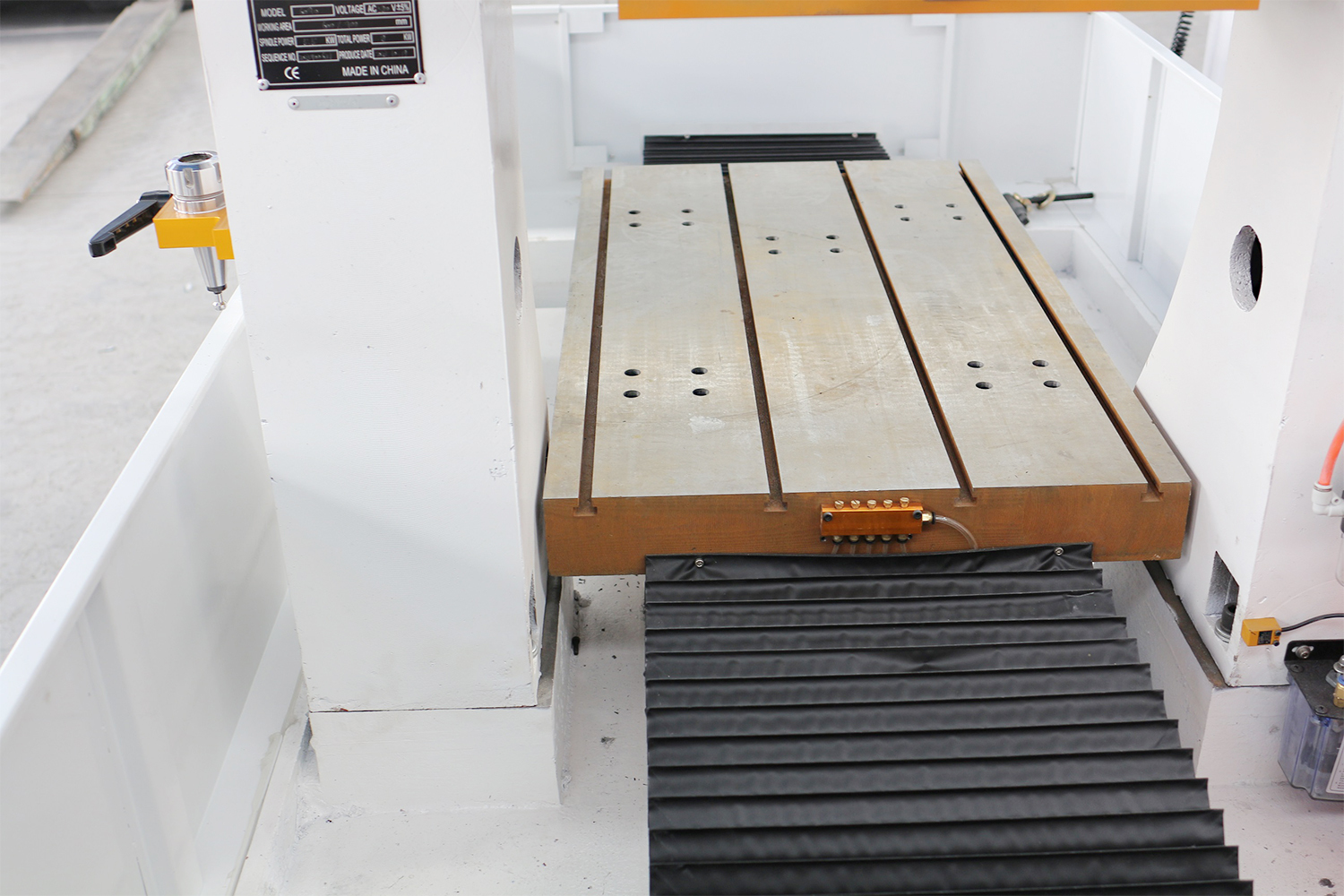

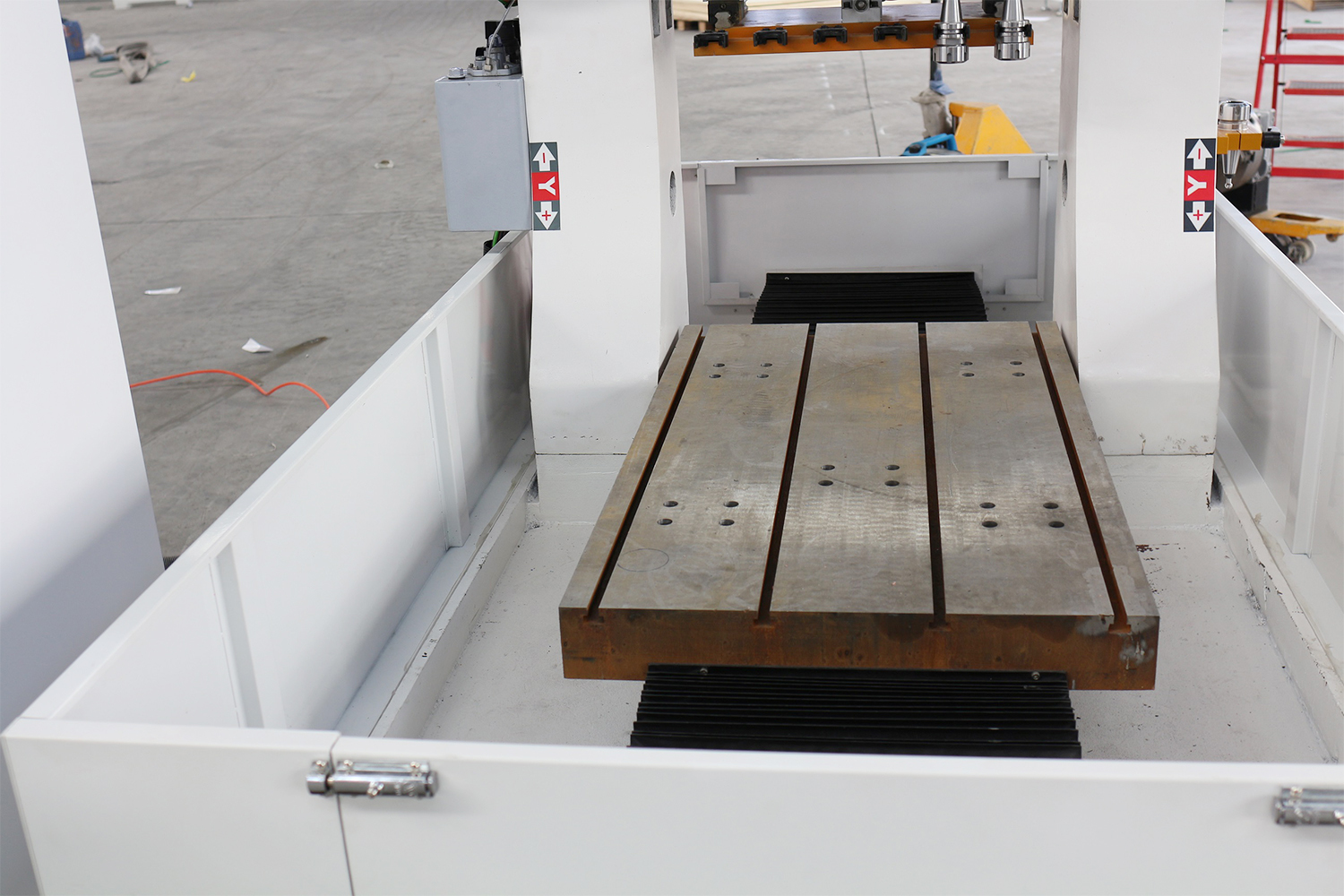

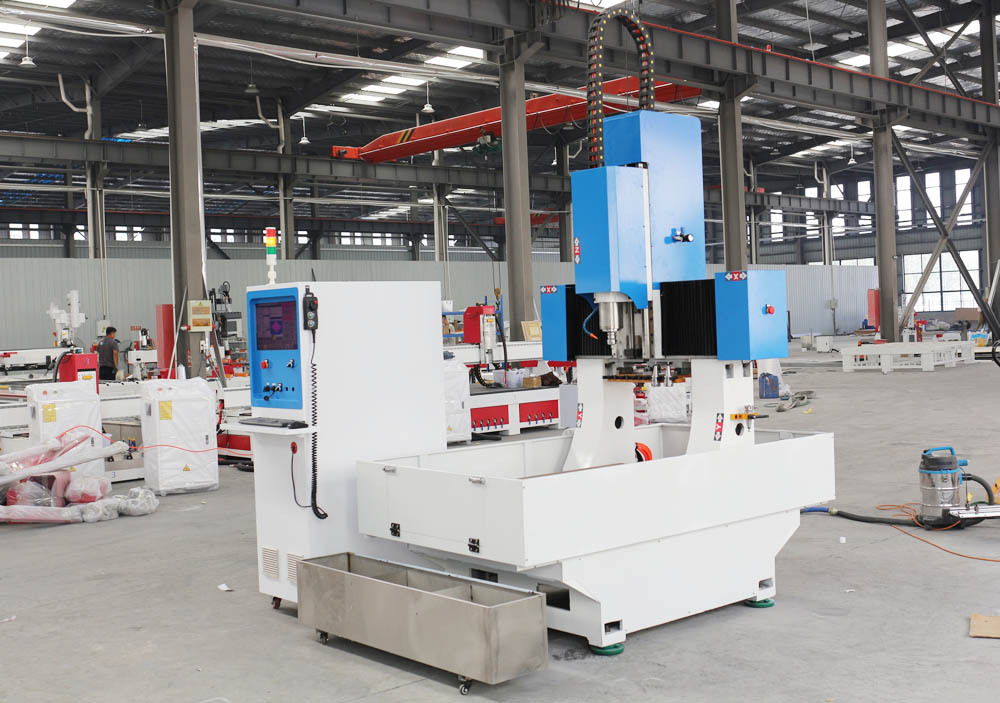

1. Product Pictures
2.

3.

4.

5.

6.

7. Product Parameters
8. XYZ working area:600*900*350mm
9. Z axis: 400mm/500mm/600mm
10. XYZ travel positioning accuracy:≤0.01mm
11. XYZ repositioning positioning accury:≤0.025mm
12. Table surface:Aluminum Tslot +PVC
13. Grantry: Steel tube welded
14. Drive systemX-Y-Z axis:Ball screw
15. Spindle power:5.5KW with ATC tool changer
16. Max velocity:50m/min
17. Max working speed:25m/min
18. Spindle speed:0-24000rmp
19. Work mode: Servo
20. Working voltage:AC220V/380V
21. Command language:G code
22. Operating system:LNC (optional Weihong or SYNTEC) system
23. X-Y resolution:0.025mm
24. Software environment:Wentai type3 artcam. etc.
25. Paking size:2550*2050*1750mm
26. Net weight: 900kg
27. Gross weight:1100 kg
28.

29. Application

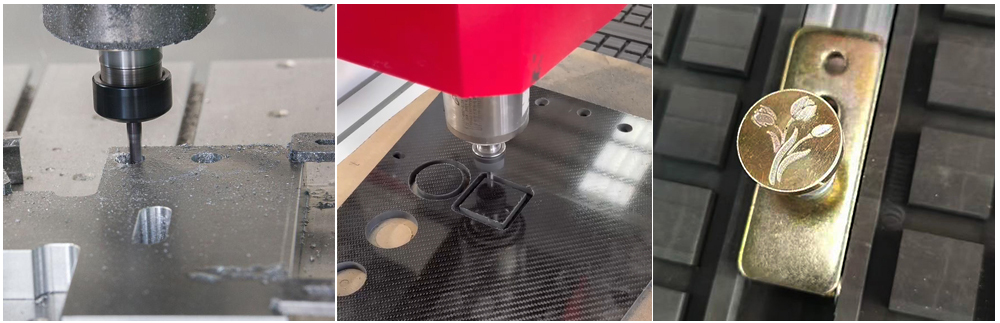

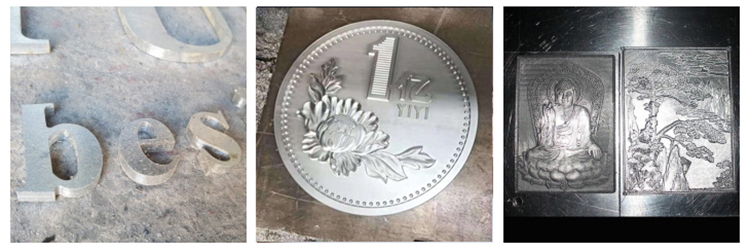

30. Metal engraving CNC routers are used in many industries, such as advertising, personalized customization, art, decoration, mold and parts processing. It is mainly suitable for processing soft metals such as aluminum, brass, copper, etc.
31. ●Advertising industry: making company names, logos, house numbers, etc.
32. ●Customization industry: engraving fine patterns, text or textures on metals (such as silver, brass, aluminum), engraving pendants, bracelets, belt buckles, etc.
33. ●Decoration industry: creating relief paintings or decorative patterns of varying depths on metals.
34. ●Mold industry: making metal prototype parts or models, etc.
35.

36.

37.

38.

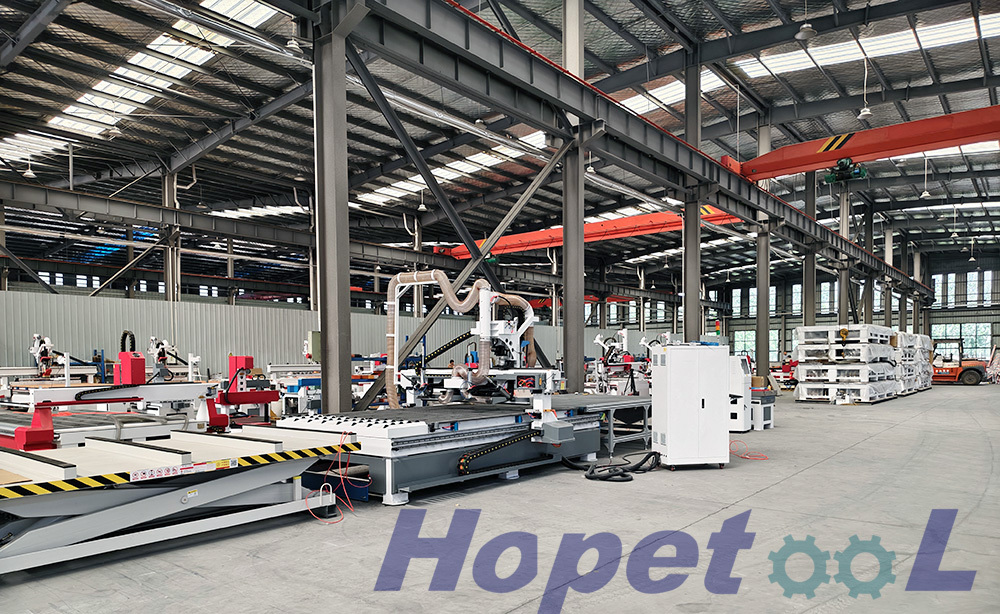

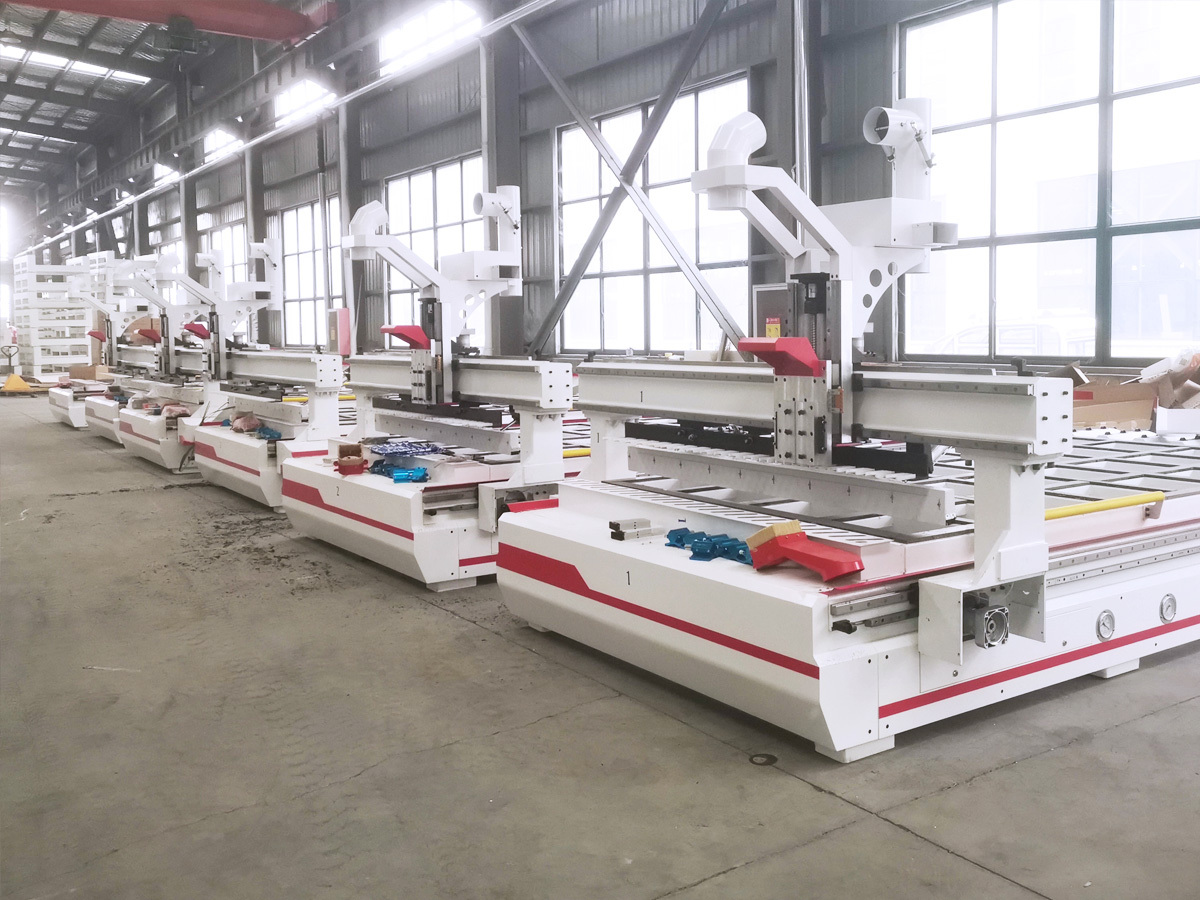

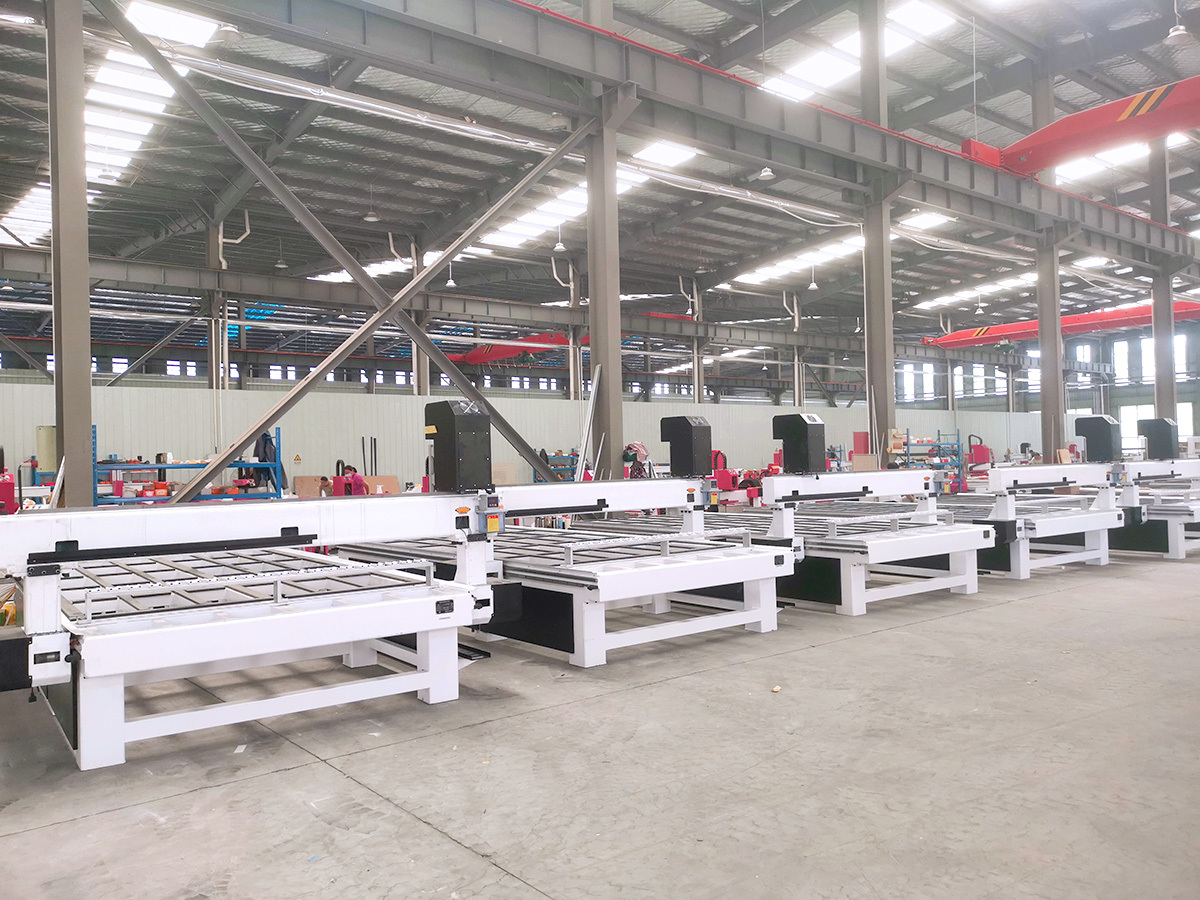

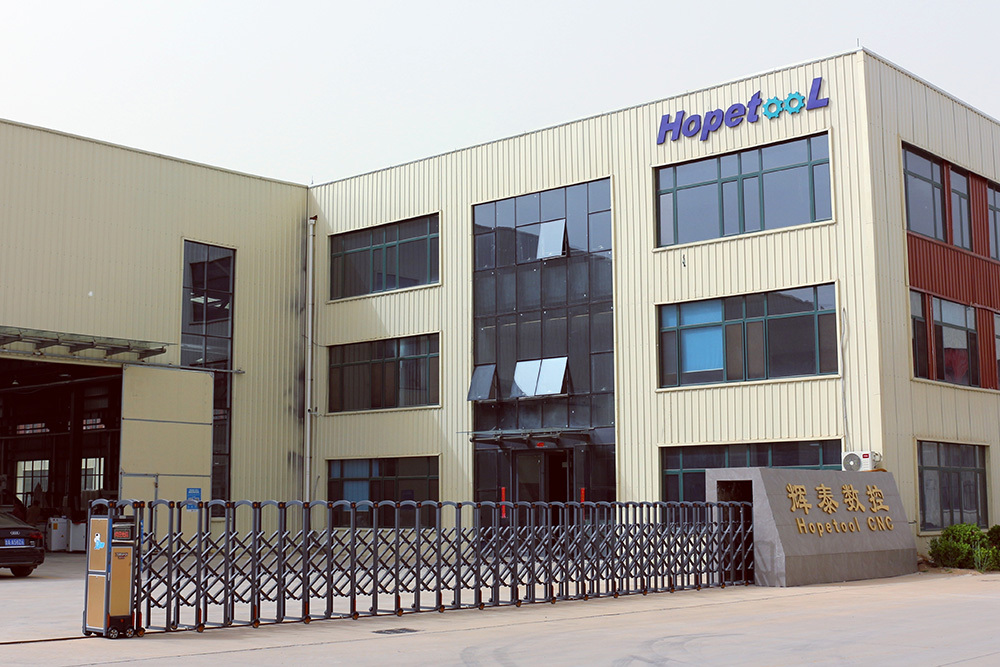

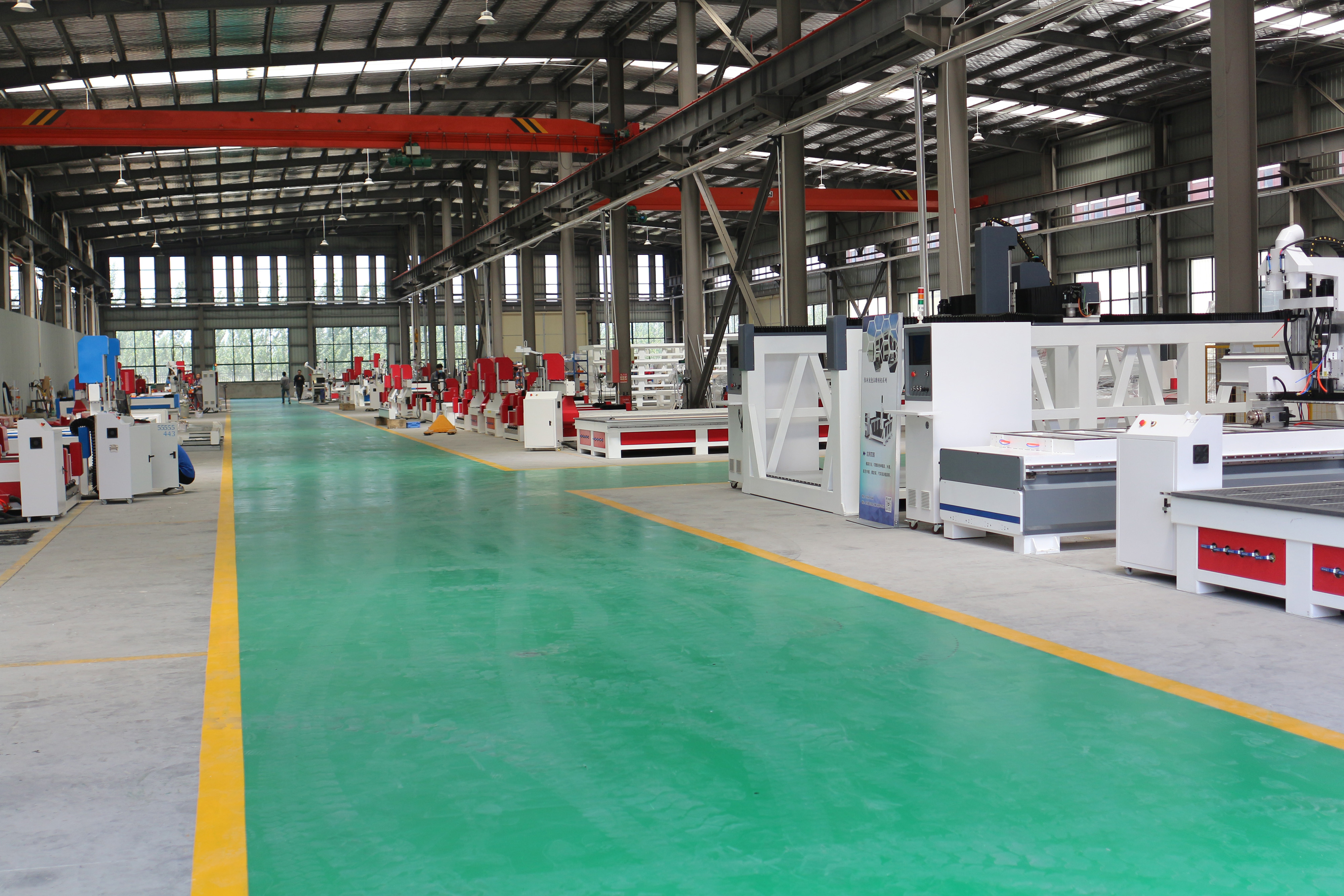

39. Our factory
40. Our factory was established in 2011, mainly produces and sells CNC routers,Small stonecnc carving machine laser cutting engraving machines, laser cutting
41. machines, vibration knife cutting machines and other CNC equipment, our factory has 14 years of production experience, our products are sold to more than 80
42. countries and cities around the world.

FAQ

Q1.Are you a factory or a trading company?

A1. Our factory is located in Qihe Industrial Park,Shandong, China, we produce and sell products, we also provide customized services.

Q2.What machines can you provide?

A2. Our main machines are CNC routers, laser cutting machines, edge banding machines,vibration knives, etc., which are widely used in panel furniture

production, advertising industry, mold industry, etc.

Q3.What are the payment terms?

A3.T/T 30% in advance, balance paid before shipment, L/C or negotiated.

Q4.What is the delivery time?

A4.7-15 days for regular machines,15-30 days for customized machines.

Q5.What are the guarantees?

A5. The whole machine is under warranty for 24 months. Under normal use and maintenance, if there is a problem with the machine within 12 months, you will

get spare parts for free. More than 12 months, you will get spare parts at cost price. You will also get lifetime technical support and services.

Q6. Can you support pre-sale service before confirming the order?

A6. Yes, you will get experienced pre-sales engineer support.
