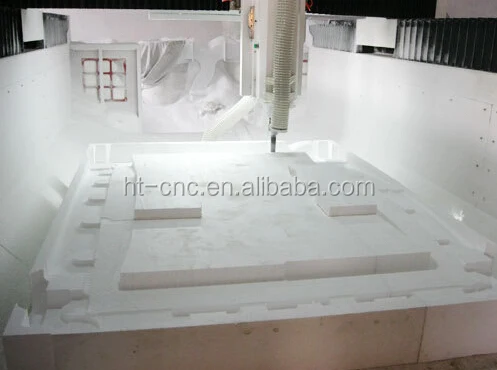

  • Stone cnc router with rotating shaft 4*8 Stone cnc router with rotating shaft 4*8 cnc router,stone cnc router,stone cnc router 4*8
  • Stone cnc router with rotating shaft 4*8 Stone cnc router with rotating shaft 4*8 cnc router,stone cnc router,stone cnc router 4*8
  • Stone cnc router with rotating shaft 4*8 Stone cnc router with rotating shaft 4*8 cnc router,stone cnc router,stone cnc router 4*8

Stone cnc router with rotating shaft 4*8

stars, based on ( 0 )reviews
$7200.00now$6981.33 unit
100items available
Stone cnc router with rotating shaft 4*8 Stone cnc router with rotating shaft 4*8 cnc router,stone cnc router,stone cnc router 4*8

Characteristic

his machine is specially for 4D engraving, the spindle(A axis) can rotate +/- 90 degree, can make multi-kinds of surface which we can design with Software.
With this machine, you can make different surface carving, arc-surface milling, bend surface machining for 4D jobs, like special shaped arts, bended doors or cabinets.
With hard steel structure, it can work on MDF, Acrylic, wood, and some soft metal, cutting and engraving on Rosewood for
furniture, indoor decoration.
Performance Parameter
NO.
Description
Parameter
1
X,Y,Z Working Area
1300x2500x(300-700mm)*±180°
2
Table Size
1310×3000mm
3
X,Y,Z Traveling Positioning Accuracy
±0.02/300mm
4
X,Y,Z Repositioning Accuracy:
±0.02mm
5
Table Surface
T slot table(optional vacuum table)
6
Frame
Big Steel Tube Structure
7
X, Y Structure
Helical rack gear , HIWIN Linear guide
8
Z Structure
Imported Ball Screw , HIWIN Linear guide
9
Max. Power Consumption
(Without Spindle) 4.2Kw
10
Max. Rapid Travel Rate
50000mm/min
11
Max. Working Speed
25000mm/min
12
Spindle Power
3/5.5KW
13
Spindle Speed
0-24000RPM
14
Drive Motors
Stepper motor(Optional servo motor)
15
Working Voltage
AC380V/50/60Hz,3PH (Option: 220V)
16
Command Language
G Code
17
Operating System
DSP A18/Stntec
18
Computer Interface
USB
19
Flash Memory
512M
20
Collet
ER25
21
X,Y Resolution
<0.02mm
22
Software Compatibility
UG , Power mill
23
Running Environment Temperature
0 - 45 Centigrade
24
Relative Humidity
30% - 75%
25
Packing Size
4.1*2.3*2.6m
26
N.W.
1600KG
27
G.W.
1800KG
28
Optional Parts
Dust Collector/ Dust Hoods for three Axis
Vacuum Pump
Rotary System
Mist-cooling System
SIEMENS/DELTA/ Panasonic Servo Motors
Colombo Spindle
X:2m, Y:4m, Z:1m
Main Parts
Stone cnc router with rotating shaft 4*8 Stone cnc router with rotating shaft 4*8 cnc router,stone cnc router,stone cnc router 4*8
Working Samples
Stone cnc router with rotating shaft 4*8 Stone cnc router with rotating shaft 4*8 cnc router,stone cnc router,stone cnc router 4*8
Stone cnc router with rotating shaft 4*8 Stone cnc router with rotating shaft 4*8 cnc router,stone cnc router,stone cnc router 4*8
Stone cnc router with rotating shaft 4*8 Stone cnc router with rotating shaft 4*8 cnc router,stone cnc router,stone cnc router 4*8
Producing Process
Stone cnc router with rotating shaft 4*8 Stone cnc router with rotating shaft 4*8 cnc router,stone cnc router,stone cnc router 4*8
Stone cnc router with rotating shaft 4*8 Stone cnc router with rotating shaft 4*8 cnc router,stone cnc router,stone cnc router 4*8
Stone cnc router with rotating shaft 4*8 Stone cnc router with rotating shaft 4*8 cnc router,stone cnc router,stone cnc router 4*8
Company Profile
Stone cnc router with rotating shaft 4*8 Stone cnc router with rotating shaft 4*8 cnc router,stone cnc router,stone cnc router 4*8

Jinan Hopetool CNC equipment Co.ltd. is a professional company specializing in developing and manufacturing CNC router , co2 laser machine,fiber laser cutting machine.After 10 years’ hard work, our machines have been exported to more than 80 countries, and we have established regular business relationships with many distributors from many countries.
Stone cnc router with rotating shaft 4*8 Stone cnc router with rotating shaft 4*8 cnc router,stone cnc router,stone cnc router 4*8
Customer Photos
Stone cnc router with rotating shaft 4*8 Stone cnc router with rotating shaft 4*8 cnc router,stone cnc router,stone cnc router 4*8
FAQ
Q1.How to get the most suitable machine and best price
Please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)

Q2.What is the payment?
The payment is 30% or 50% T/T or Alibaba trade assurance in advance, balance after machine finished.

Q3.What is the producing time after order?
The proucing time is about 10-20 days depend on different machines.

Q4.If we don't know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.

Q5.How about your after-sales service?
we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.

Q6. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to
make sure they can work very well before being out of factory.
The testing video and pictures will be available before delivery.
Customer Photos
Stone cnc router with rotating shaft 4*8 Stone cnc router with rotating shaft 4*8 cnc router,stone cnc router,stone cnc router 4*8
FAQ
Q1.How to get the most suitable machine and best price
Please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)

Q2.What is the payment?
The payment is 30% or 50% T/T or Alibaba trade assurance in advance, balance after machine finished.

Q3.What is the producing time after order?
The proucing time is about 10-20 days depend on different machines.

Q4.If we don't know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.

Q5.How about your after-sales service?
we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.

Q6. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to
make sure they can work very well before being out of factory.
The testing video and pictures will be available before delivery.
