Two spindles Cnc Router 1825

stars, based on ( 0 )reviews
$4734.56now$4485.37 unit
100items available
Products Description

Hopetool 1825 double spindle cnc router 2d 3d engraving machine wood engraving cnc routers machine cnc router ncstudio

Two spindles Cnc Router 1825 Two spindles Cnc Router 1825 Two spindles Cnc Router,wood cnc router,cnc router 1825
Two spindles Cnc Router 1825 Two spindles Cnc Router 1825 Two spindles Cnc Router,wood cnc router,cnc router 1825
Two spindles Cnc Router 1825 Two spindles Cnc Router 1825 Two spindles Cnc Router,wood cnc router,cnc router 1825
Two spindles Cnc Router 1825 Two spindles Cnc Router 1825 Two spindles Cnc Router,wood cnc router,cnc router 1825
Two spindles Cnc Router 1825 Two spindles Cnc Router 1825 Two spindles Cnc Router,wood cnc router,cnc router 1825
Characteristic:
1.Two spindles can use two different tools for three different processing at the same time, which is similar with an economical
auto-tool changer cnc machine center with two tools.
2.the vacuum pump holds tightly the carving materials which makes operating more reliable an convenient.
3.leading rack rotation with high speed and strength.air speed can be 50m/min,when working in wave board also can be 25m/min.
4.our software is compatible with type3/artcam/castmate/weitai and so on .
5.advanced USB connection with DSP operating system,fast &smooth processing,our routers can completely work off-line.
6.the whole welding structure is shaped through tempeing treatment,making it solid and long lasting.


Performance parameter:
number
Description
parameter
1
XYZ working area
1800*2500*400mm
2
Table size
1310*3000mm
3
XYZ travel positioning accuracy
±0.01mm
4
XYZ repositioning positioning accury
±0.01mm
5
Table surface
Bakelite sheet
6
grantry
steel
7
drive system X-Y axis
Rack actuation
8
drive system Z axis
Ball screw
9
Spindle power
3/4.5KW
10
Max velocity
50m/min
11
Max working speed
25m/min
12
Spindle speed
0-24000rmp
13
work mode
step(optional servo)
14
Working voltage
AC220V
15
Command language
G code
16
Interface
USB
17
Operating system
DSP
18
Flash memory
128
19
X-Y resolution
0.025mm
20
Software environment
Wentai type3 artcam
21
Running environment
Temperature:0-45°C
22
Paking size
3300*1900*1900mm
23
Net weight
1000 kg
24
Gross weight
1200 kg
Two spindles Cnc Router 1825 Two spindles Cnc Router 1825 Two spindles Cnc Router,wood cnc router,cnc router 1825

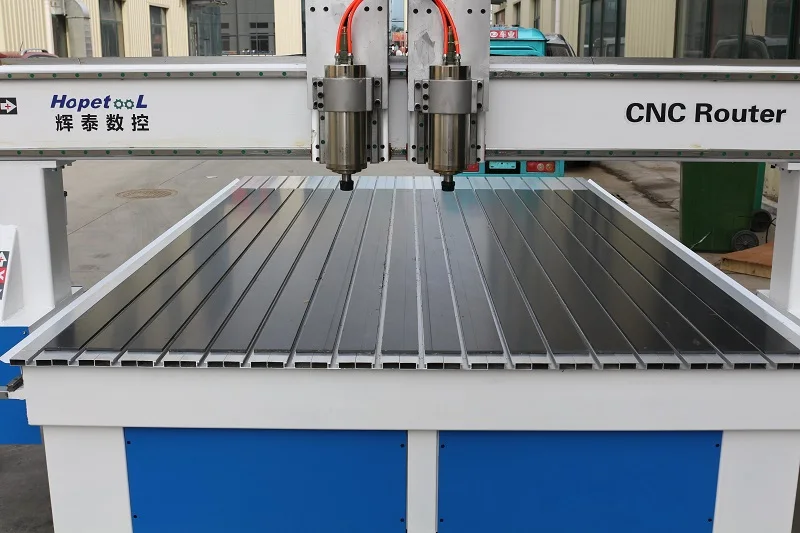

Main Parts
Two spindles Cnc Router 1825 Two spindles Cnc Router 1825 Two spindles Cnc Router,wood cnc router,cnc router 1825
Two spindles Cnc Router 1825 Two spindles Cnc Router 1825 Two spindles Cnc Router,wood cnc router,cnc router 1825

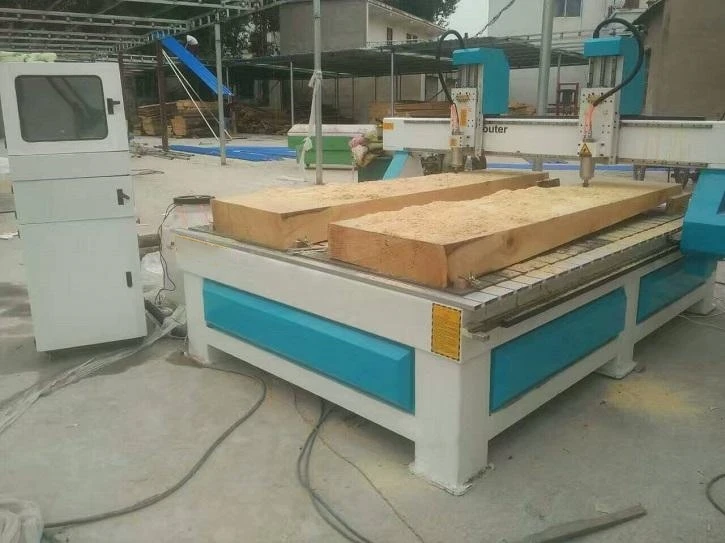

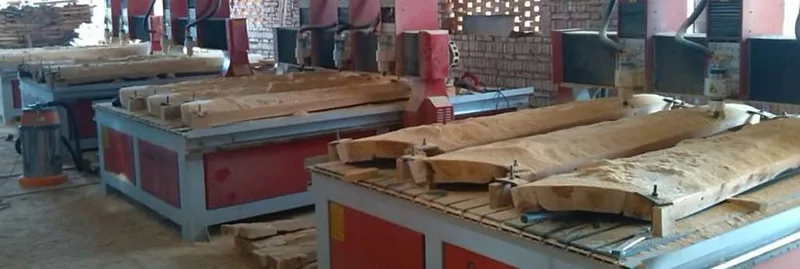

Working Samples
