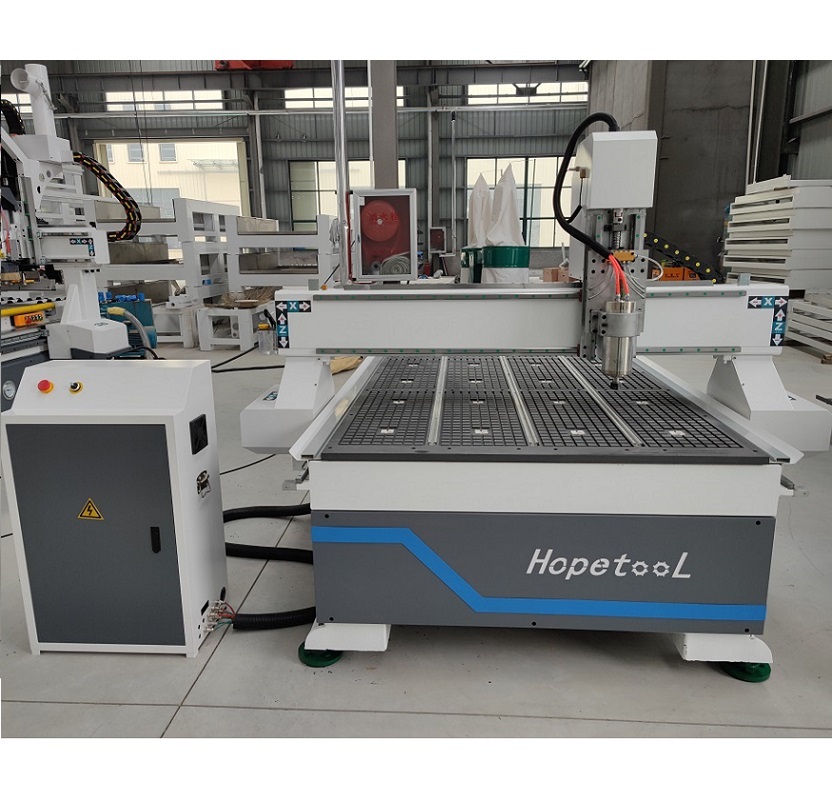

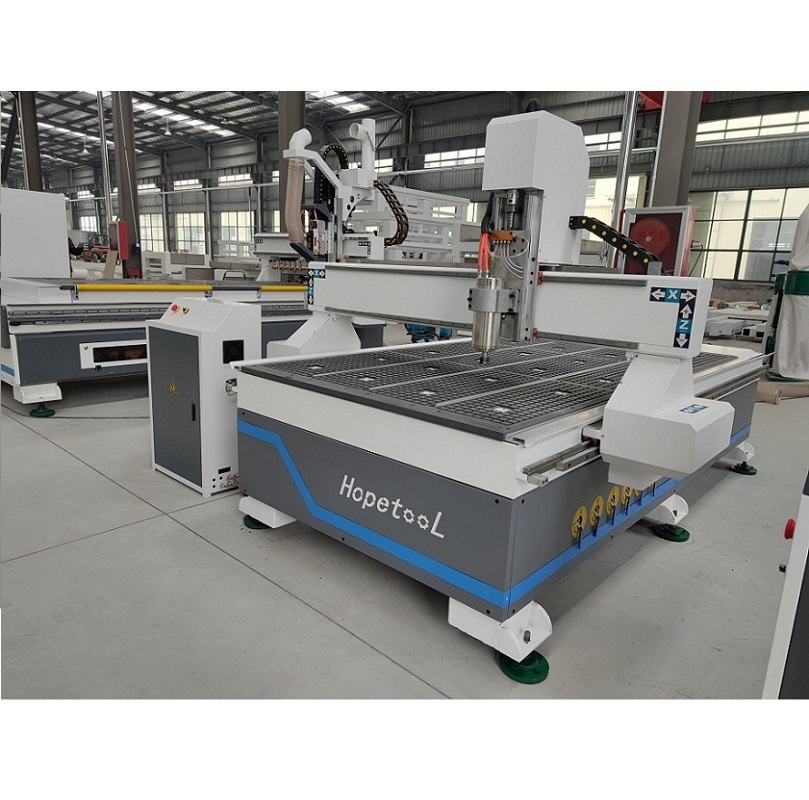

Vacuum table cnc router machine for woodworking

CNC router machine

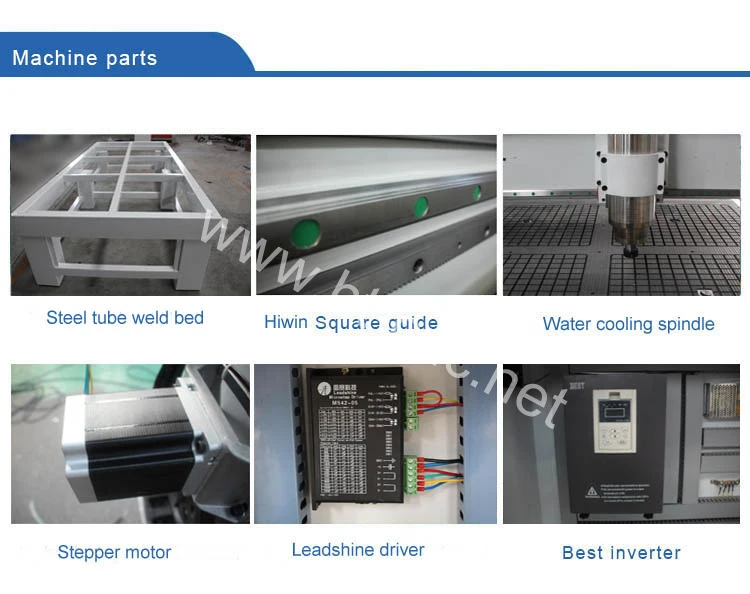

   characteristic:

1. This CNC router machine is CNC router 1325,Water cooling spindle,high precision,long life time,steady working,easy to start up. Woodworking CNC router machine

2.thicken square pipe stucture ,well welded, no distortion for whole structure high precision ,and long life time.Woodworking CNC router machine

3.DSP controller system with USB interface,working without connecting with computer during working and easy to control.

4.Software:CAD/CAM designing software such as type3/artcam/castmate/weitai etc.

5.auto oilling system ,easy to operate by pressing one key.

6.seperated control system makes operation easily.

7.Adopt high speed stepper motor and drivers,and two motors for Y axis.max speed is 25mm/min.Woodworking CNC router machine

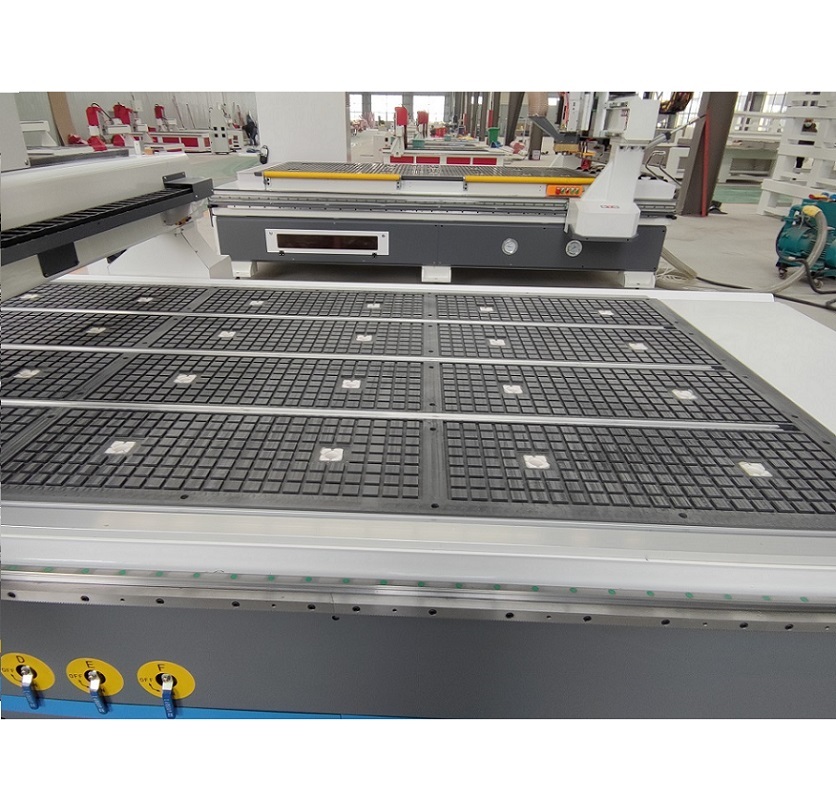

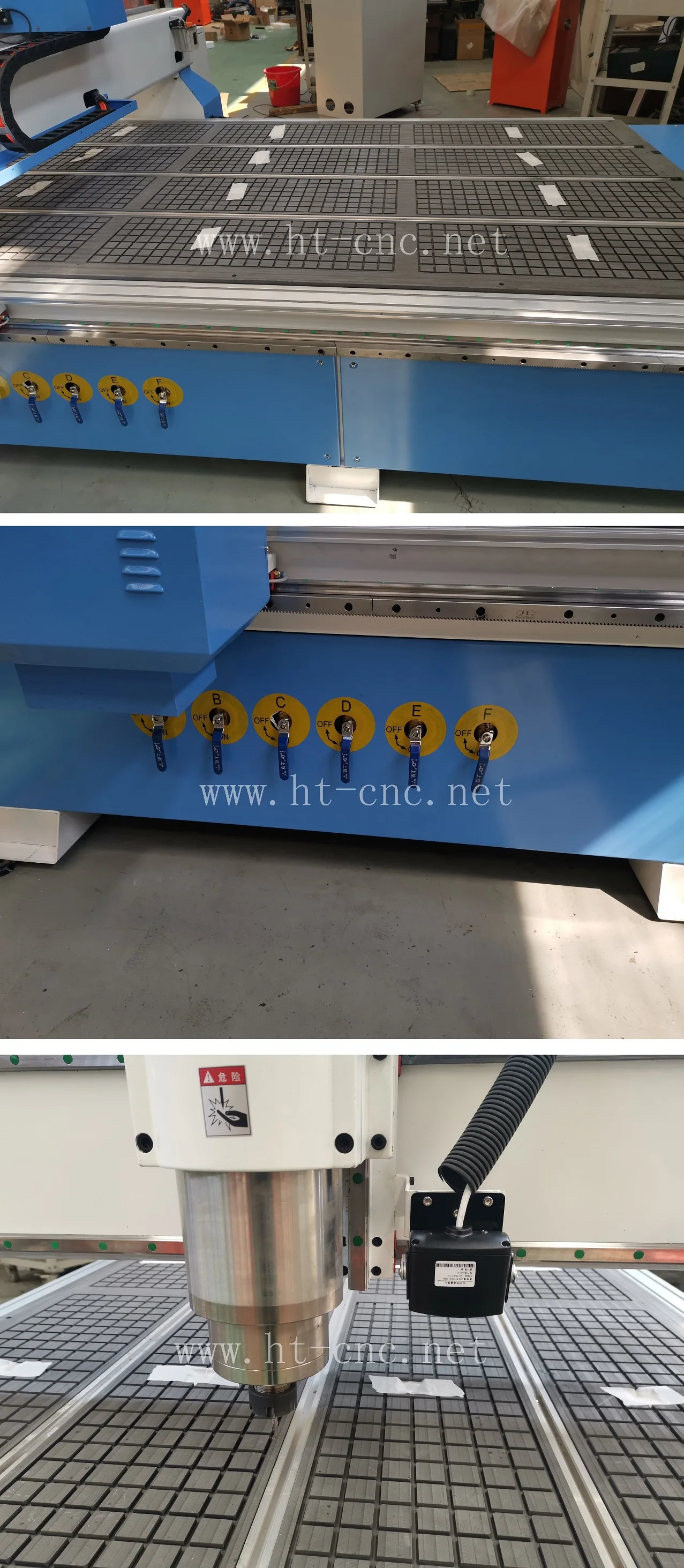

8.The vacuum table holds tightly the carving materials which makes operating more reliable and convenient.

  performance parameter:

XYZ working area ：1300*2500*200mm
Table size ：1310*3000mm
XYZ travel positioning accuracy：±0.01mm
XYZ repositioning positioning accury：±0.01mm
Table surface：Bakelite sheet
Gantry：steel
drive system X-Y axis：Rack actuation

drive system Z axis：Ball screw
Spindle power：3/4.5KW
Max velocity：50m/min
Max working speed：25m/min
Spindle speed：0-24000rmp
work mode：Step(optional servo)
Working voltage：AC220/380V
Command language：G code
Interface：USB  or parallel port
Operating system：DSP
Flash memory：128
X-Y resolution：<0.025mm
Software environment ：Wentai type3 artcam
Running environment：Temperature:0-45℃
Packing size：3300*1900*1900mm

Net weight ：1000kg
Gross weight：1200kg

Producing Process：

Company Profile：

Jinan Hopetool CNC Equipment Co.Ltd. is located in Jinan, Shandong Province, China. The company integrates production and trade, and has ten years of production experience. Its main products include CNC routes, laser machines, fiber laser cutting machines, etc. Our products have complete CE, ISO, SGS, high tech company certificate and other certificates, and we have export certificates, which can be sold all over the world.

Certificate：

Customer Photos：

FAQ：

Q1.How to get the most suitable machine and best price

Please tell the material you want to working on ?

How to working on it ? Engraving ? Cutting ? Or other ?

What’s the MAX size of these material ?( length ? Width ? Thickness ?)

Q2.What is the payment?

The payment is 30% or 50% T/T or Alibaba trade assurance in advance, balance after machine finished.

Q3.What is the producing time after order?

The proucing time is about 10-20 days depend on different machines.

Q4.If we don't know how to use the machine,can you teach us?

Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if

you are busy ,we will have the special engineer to your country,but you need to bear some fee,like

tickets and hotel and meal.

Q5.How about your after-sales service?

we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.

Q6. Quality Control:

The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory.

The testing video and pictures will be available before delivery.
