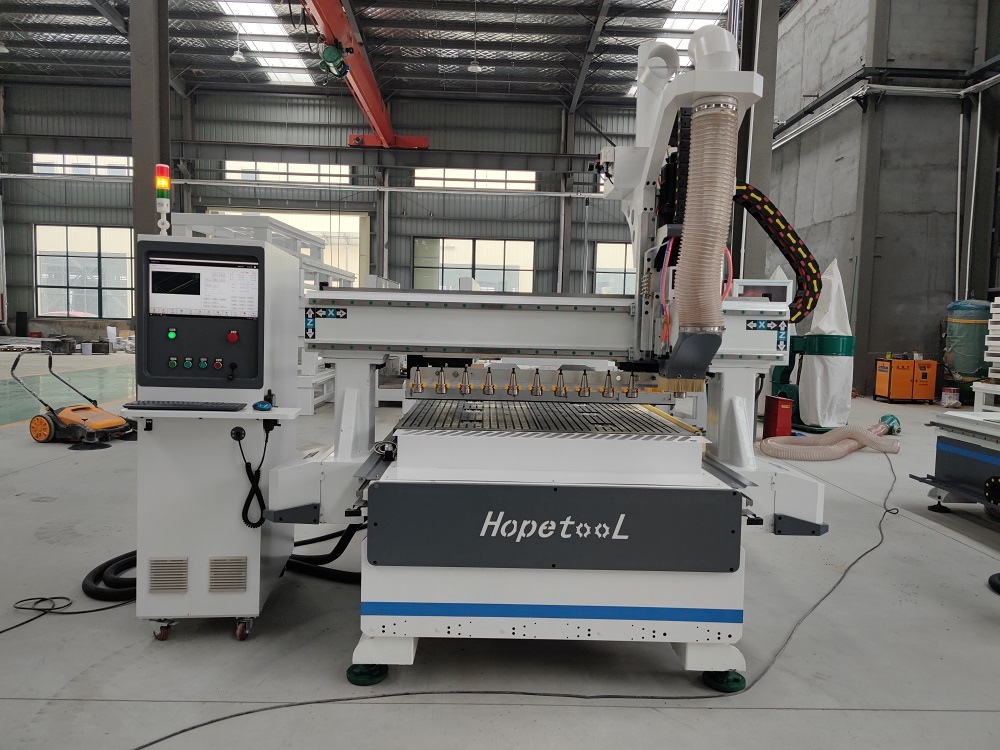

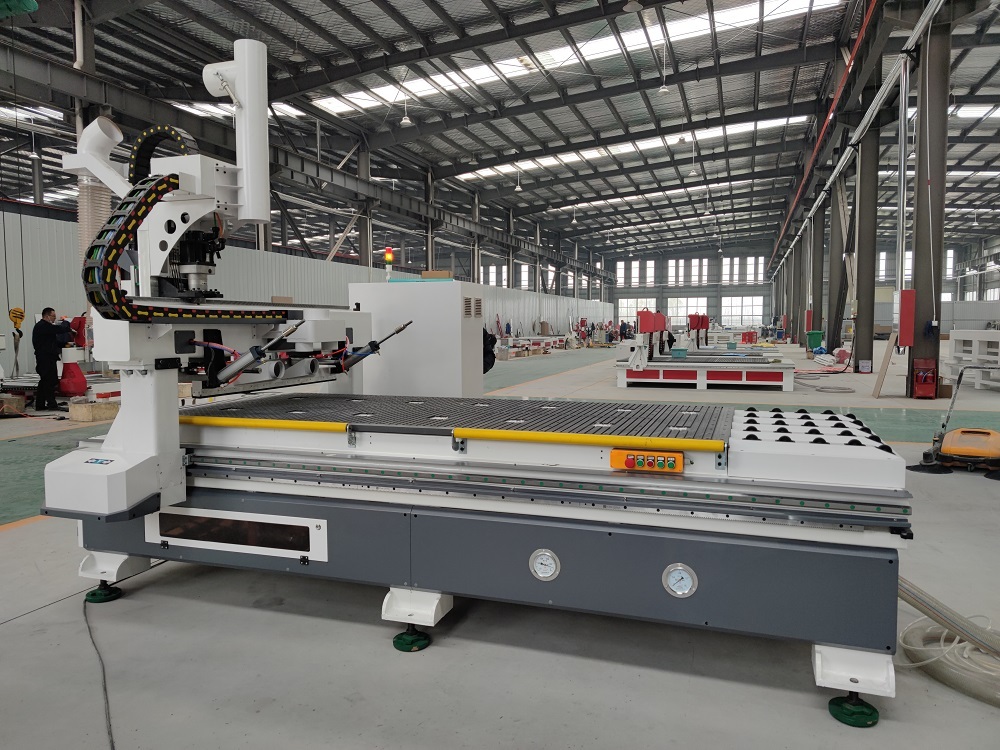

Top quality ATC CNC router 1325 HT-1325L
ATC CNC router
characteristic:
1)This 1325 CNC router is linear Auto tool change machine, X,Y axises adopt gear-wheel, speed is fast. It adopts domestic no oil vaccum pump with high efficiency.
2)Adopt Japan yaskawa servo motor ,built-in encoder,It can stop automatically when graunch happens,so can avoid accidents .
3)ATC CNC router with Italy air cooling spindle or China water cooling spindle with tool change, high power , imported tool holders with high precision and long lifetime.
4)Whole machine is welded with seamless steel structure, the regidity is good , not easy to be deformed.The gantries adopt steel structure.1325 cnc router machine
5)All adopt imported square oribit, heavy loading, stable working , high precision and long lifetime. Imported ballscrew , high precision.
6)ATC CNC router machine 1325 with Taiwan leading control system: The embedded numerical control system based on windows platform can upgrade the functions infinitively. Anti-interference design of the hard and soft ware synchronistically make sure of the reliable operation. Advance 3D space curve prediction algorithm can make sure of the evenness of polyline and the speed and precision of curve lines. Advanced file pretreatment function can correct the error in the files and is compatible with the process codes of multiple national and international software. (such as Mastercam,Typ3,UG,Artcam,Caxa).
7)6 zones vaccum table, it is a professional wood door making and furniture making machine.1325 cnc router machin
performance parameter:
NO. | Discription | Parameter |
1 | X,Y,Z Working Area | 1300X2500X200mm |
2 | Table Size | 1440X3040mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
4 | X,Y,Z Repositioning Positioning Accuracy | ±0.05mm |
5 | Lathe Structure | Welded Strucutre |
6 | X, Y Structure | Gear Wheel Transmission, Shaft Linear Bearings |
7 | Z Structure | Ball Screw, Shaft Linear Bearings |
8 | Max.Consume power | 20KW |
9 | Max.Speed | 0-60000mm/min |
10 | Max.Working Speed | 0-25000mm/min |
11 | Spindle Power Motor | 6/9KW HSD Spindle ATC or Chinese spindle |
12 | Spindle Speed | 0-24000RPM |
13 | Working Mode | Servo system |
14 | Working Voltage | AC380V/50/60Hz , 3PH |
15 | Command | G Code, *uoo, *mmg, *plt |
16 | Operating System | SYNTEC System |
17 | Interface | Internet line |
18 | Flash Memory | 512M |
19 | Collet | ER32 |
20 | X,Y Working Delicacy | <0.01mm |
21 | Software | Type3 software, Wentai software,Artcam software |
22 | Running circumstance | Temperature: 0°C~45°C, |
23 | Packing Size | 4000x2150x2200 mm |
24 | Net Weight | 2000KG |
25 | Gross Weight | 2300KG |
Training and Use
1. We will supply with the ATC CNC router machine 1325 operation manual in English version for installing and operation.1325 cnc router machin
2.Customer can come to our factory training .
3.Our engineer can go to customer's factory training.
Warranty and After service
1. Our warranty of ATC CNC router machine 1325 is 2 years counting from the date when the Machine arrives at the port of destination. 1325 cnc router machin
2. We will supply after service 24 hours,customer can contact us any time.
3.When some problems can’t be solved by customers, our engineer can go to door to help.
Questions and answer:
Q1.how to get the most suitable machine and best price
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2.What is the payment of ATC CNC router machine 1325?
The payment is 30% or 50% T/T or Alibaba trade assurance in advance, balance after machine finished.1325 cnc router machin
Q3.What is the producing time after order?
The proucing time is about 10-20 days depend on different machines.
Q4.If we don't know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like tickets and hotel and meal.
Q5.How about your after-sales service of ATC CNC router machine 1325?
we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.
Q6. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The
complete machine will be tested to make sure they can work very well before being out of factory.
The testing video and pictures will be available before delivery.
