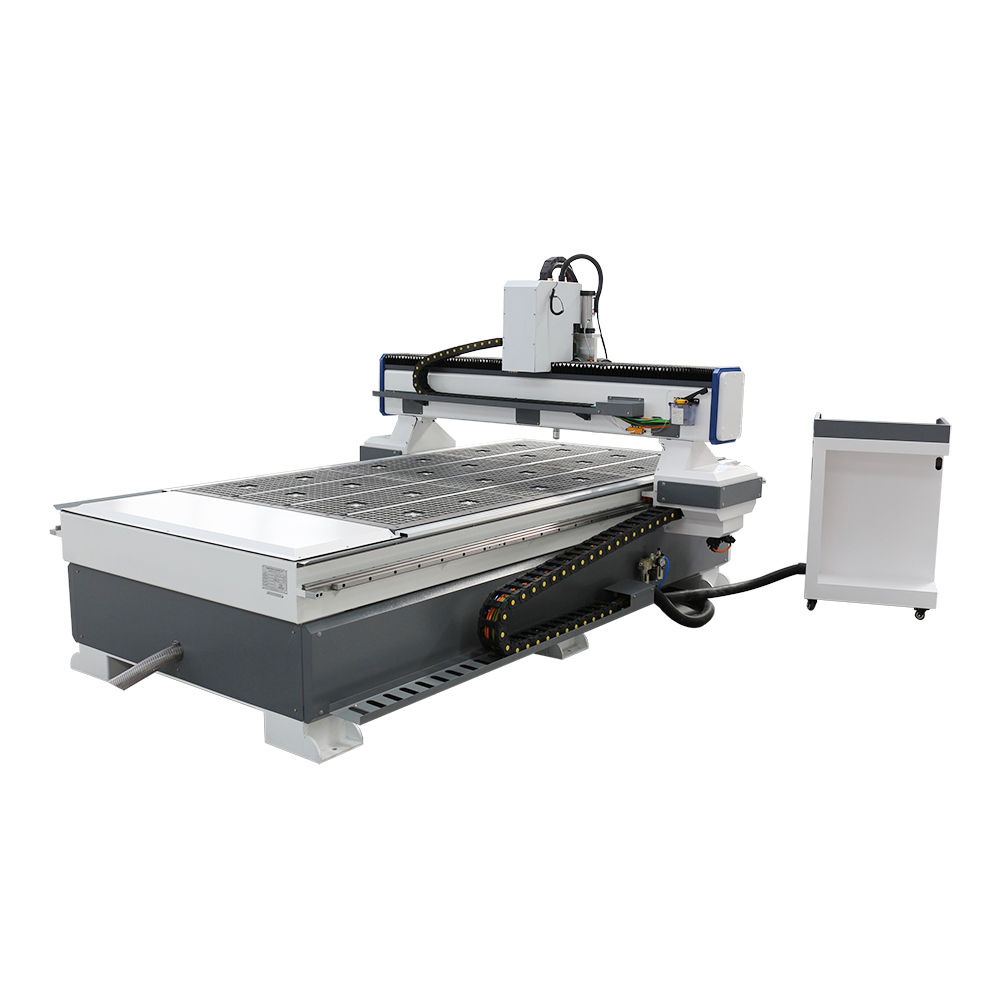

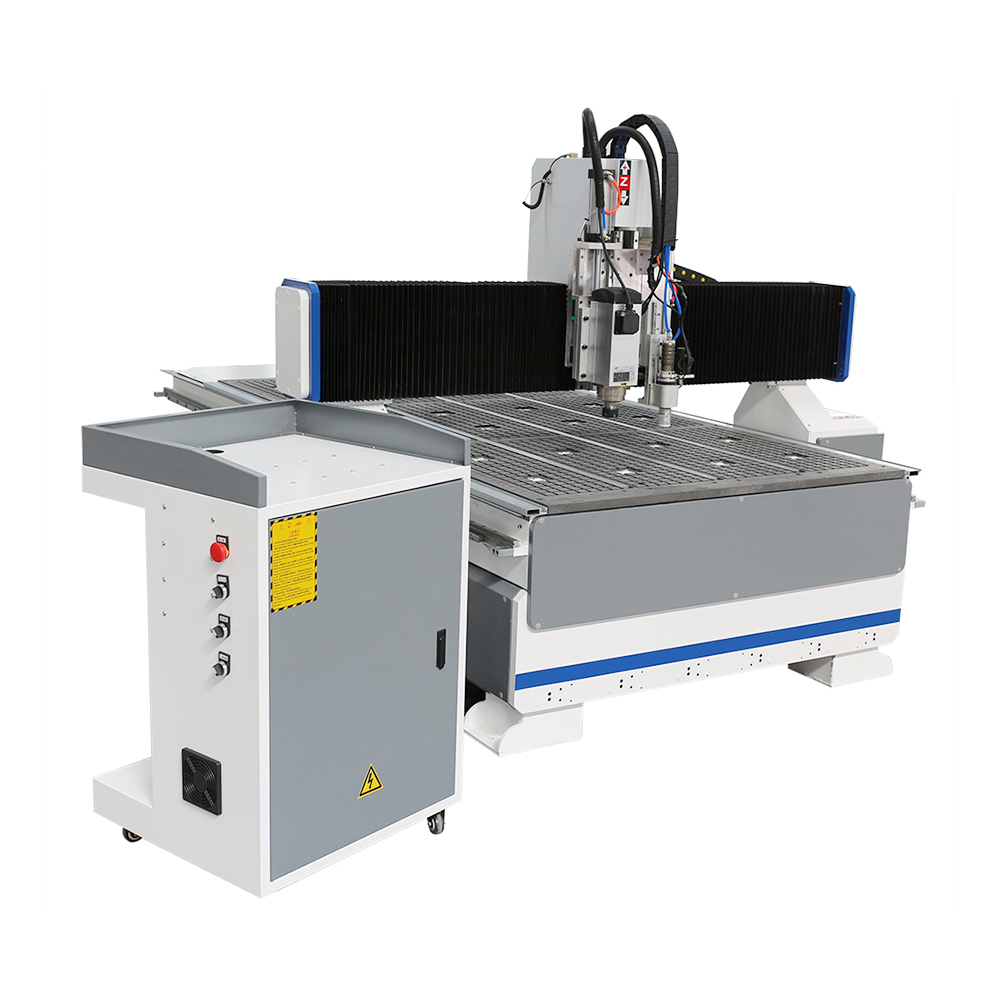

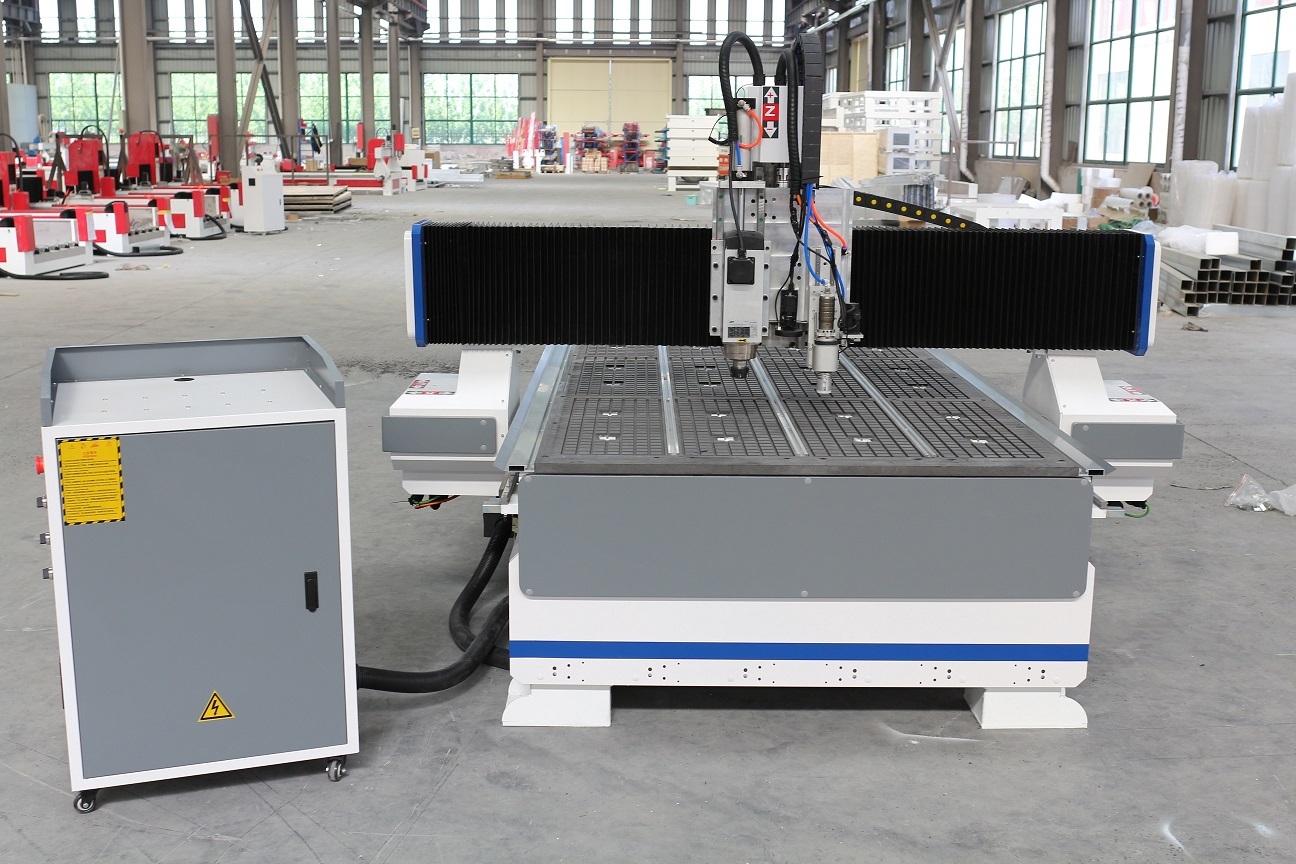

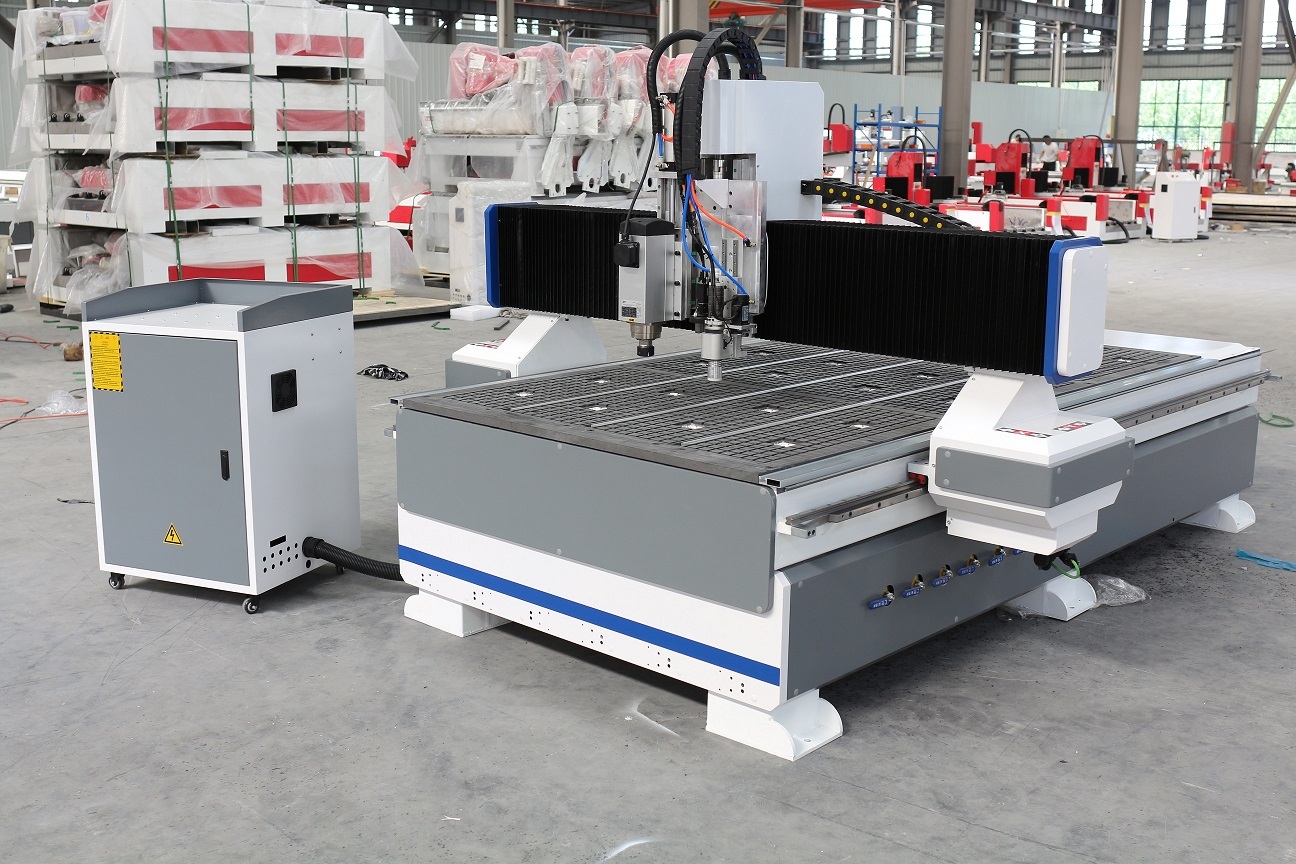

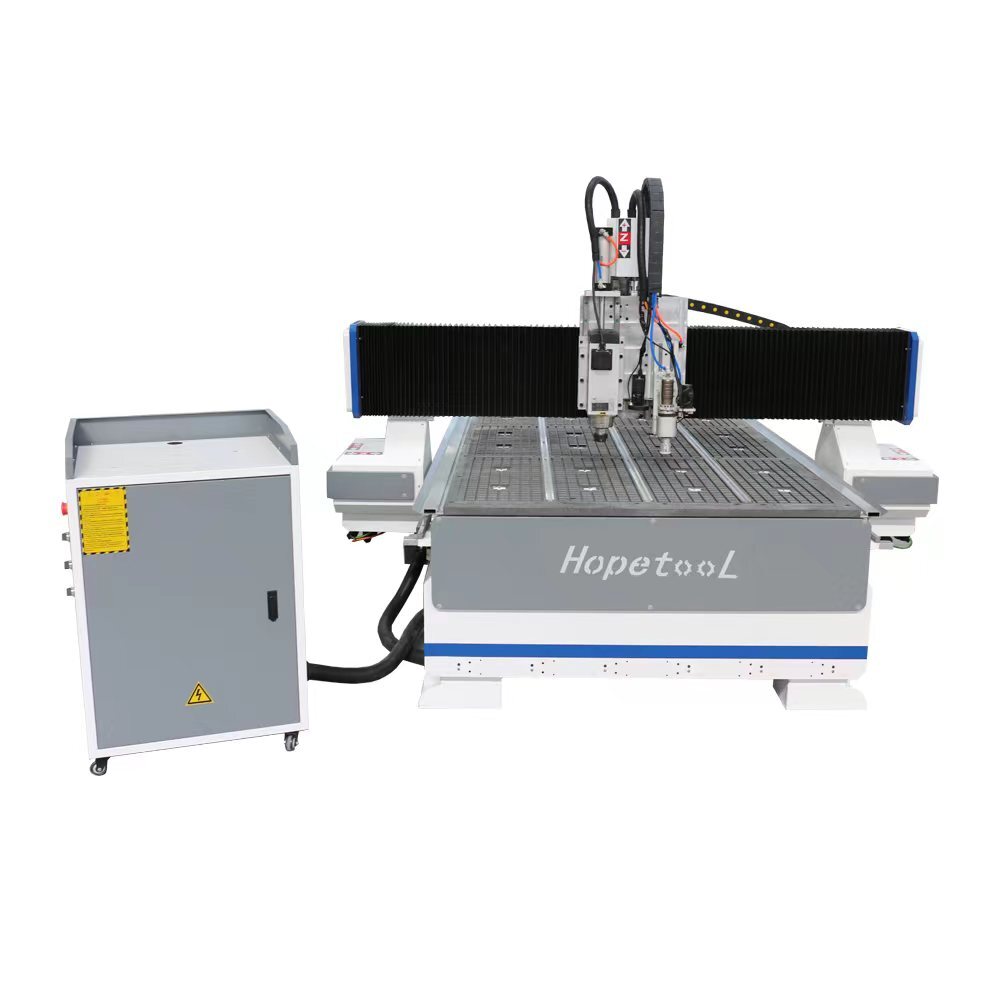

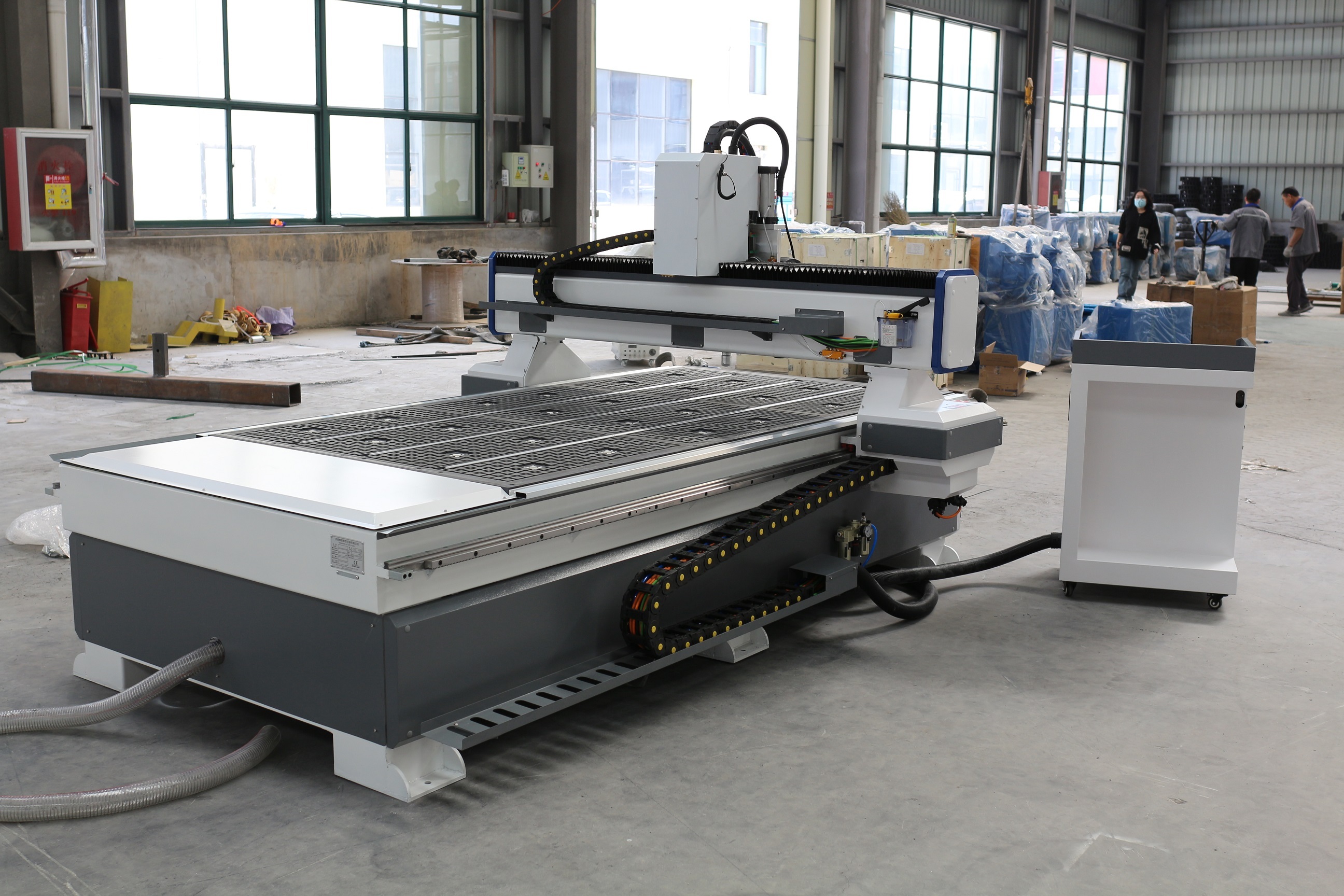

cnc oscillating knife cutting machine
Product Description:
1. The cnc oscillating knife cutting machine with oscillating knife
2. Adopting computer control system to ensure high-speed and high-precision machining of the machine tool, meeting the requirements of precision machining.
3. The cnc oscillating knife cutting machine tool is welded from thick walled steel pipes, providing a rigid and stable processing platform that increases its service life and accuracy.
4. cnc oscillating knife cutting machine with 3.5kw air-cooled spindle, the high-power spindle meets the processing needs of different materials.

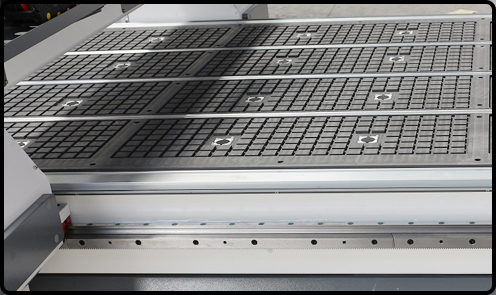

5. The six zone vacuum adsorption table can effectively adsorb plates of different sizes, improving processing efficiency.
|
|
Product Parameters：
| Description | Parameter |
| XYZ working area | 1300*2500*300mm/2000*3000*300mm/2100*3000*300mm/ |
| XYZ travel positioning accuracy | ±0.01 |
| XYZ repositioning positioning accury | ±0.02mm |
| Table surface | Vacuum table |
| Drive system X-Y axis | Rack actuation |
| Max velocity | 0-60000mm/min |
| Max working speed | 0-25000mm/min |
| Work mode | Stepper motor |
| Working voltage | AC220V or 380V |
| Operating system | Mach3 (optional LNC,Weihong ) control system |
| X-Y resolution | <0.02mm |
| Gross weight | 1200kg |
This cnc oscillating knife cutting machine has multiple sizes to choose . Our factory produces CNC router machine，and exported to more than 80 countries and cooperate with sales representatives from multiple countries. We can provide OEM and ODM.
Main accessories：
|
|

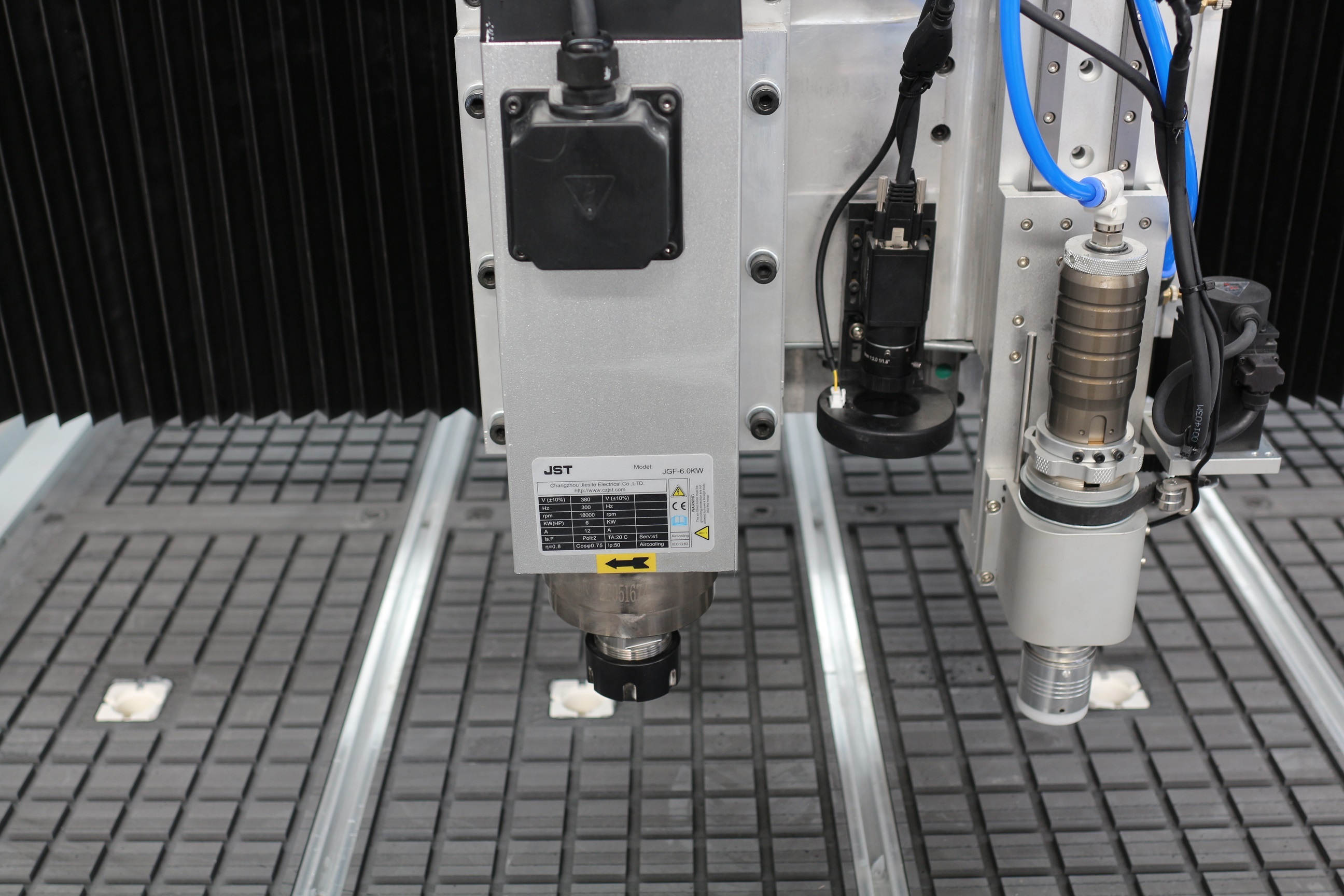

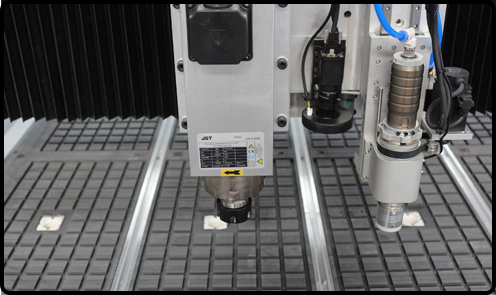

3.5KW air cooled spindle,with high precision and high power | High stability double-layer lathe |
|
|

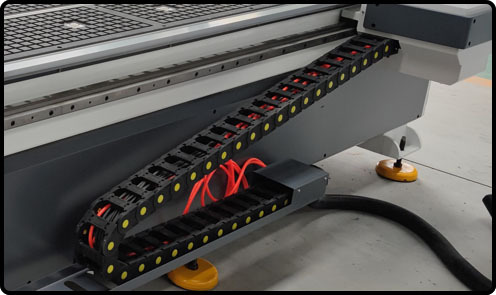

Yako hybrid servo motor, Can carving high-precision samples | High quality closed drag chain，Can ensure the safety of machines and staff |
|
|
Taiwan guide,it has bearing gravity, smooth operation and high precision. | Vacuum table can absorb different sizes and different shaped materials tightly. |
Working samples:
1. Woodworking industry: processing density boards, surfboards, high heels, marble processing, cabinets and furniture, etc,
2. Advertising industry: In the advertising industry, woodworking CNC engraving machines are used to produce advertising signs, signage, acrylic cutting, molding system modules, and various materials for advertising decoration products.
3. Mold industry: carving metal molds such as copper, aluminum, and iron, as well as non-metallic molds such as artificial marble, sand, plastic boards, PVC pipes, and wooden boards.
4. The swinging knife is used to cut flexible materials such as PVC, KT board, thick foam, aluminum plastic composite board, polypropylene hollow board, foot pad and leather

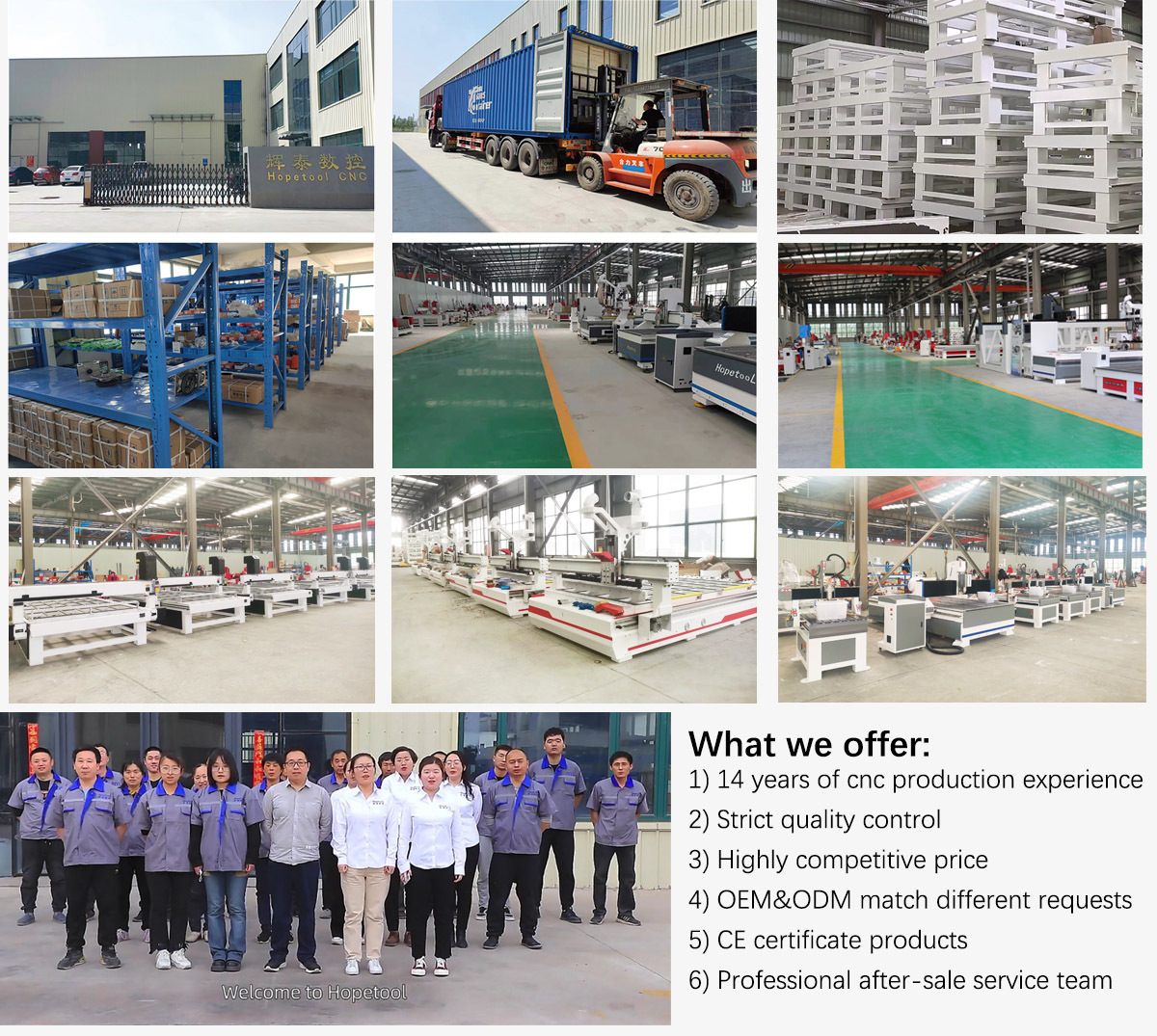

Our factory:
- Name:
- cnc oscillating knife leather
- Table Surface:
- Vacuum Table
- Xyz Working Area:
- 1300*2500*200/2000*3000*200/2100*4000*200mm
- Table Size:
- Work Mode:
- Stepper motor
- Spindle Power:
- 3.5kw air cooled spindle
- Spindle Speed:
- 0-24000rmp
- Max.Working Speed:
- 0-25000mm/Min
- Working Voltage:
- AC220V or 380V
- Operating System:
- DSP/Mach3/Ncstudio control system
- Weight (Kg):
- 1200kg
