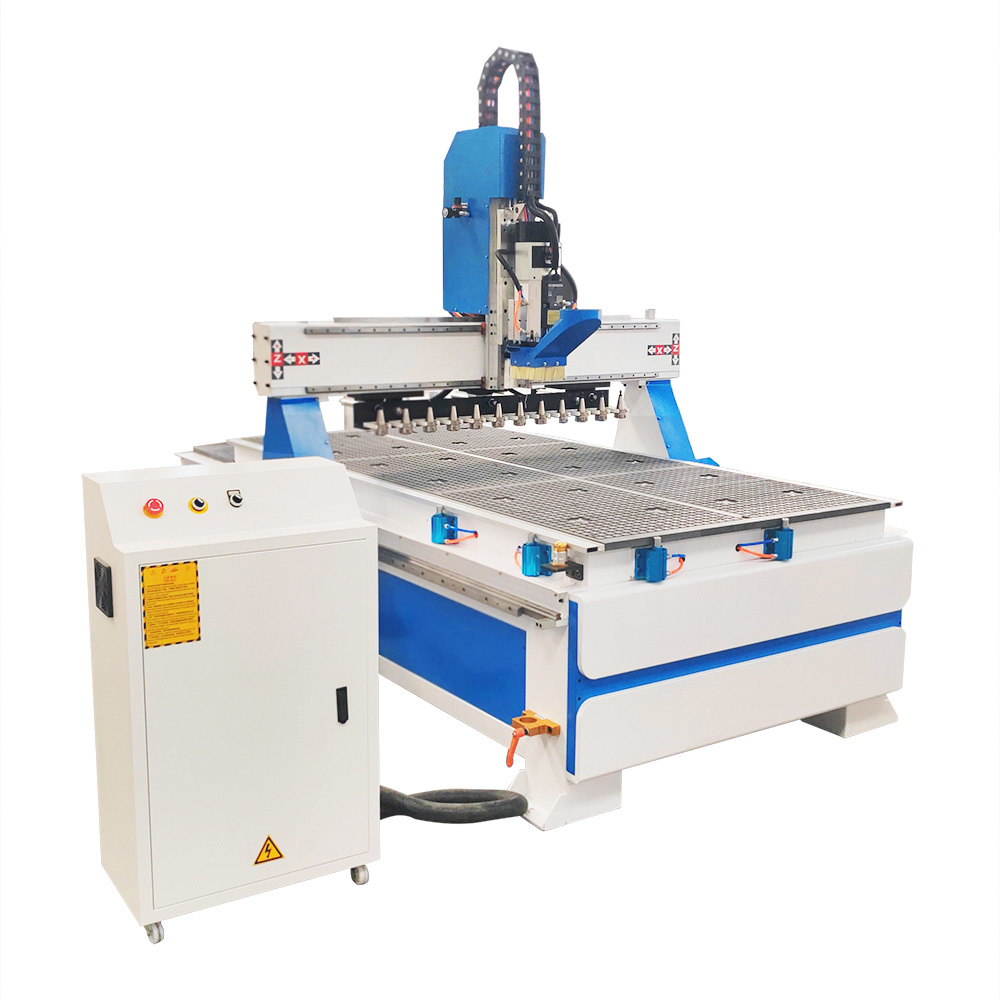

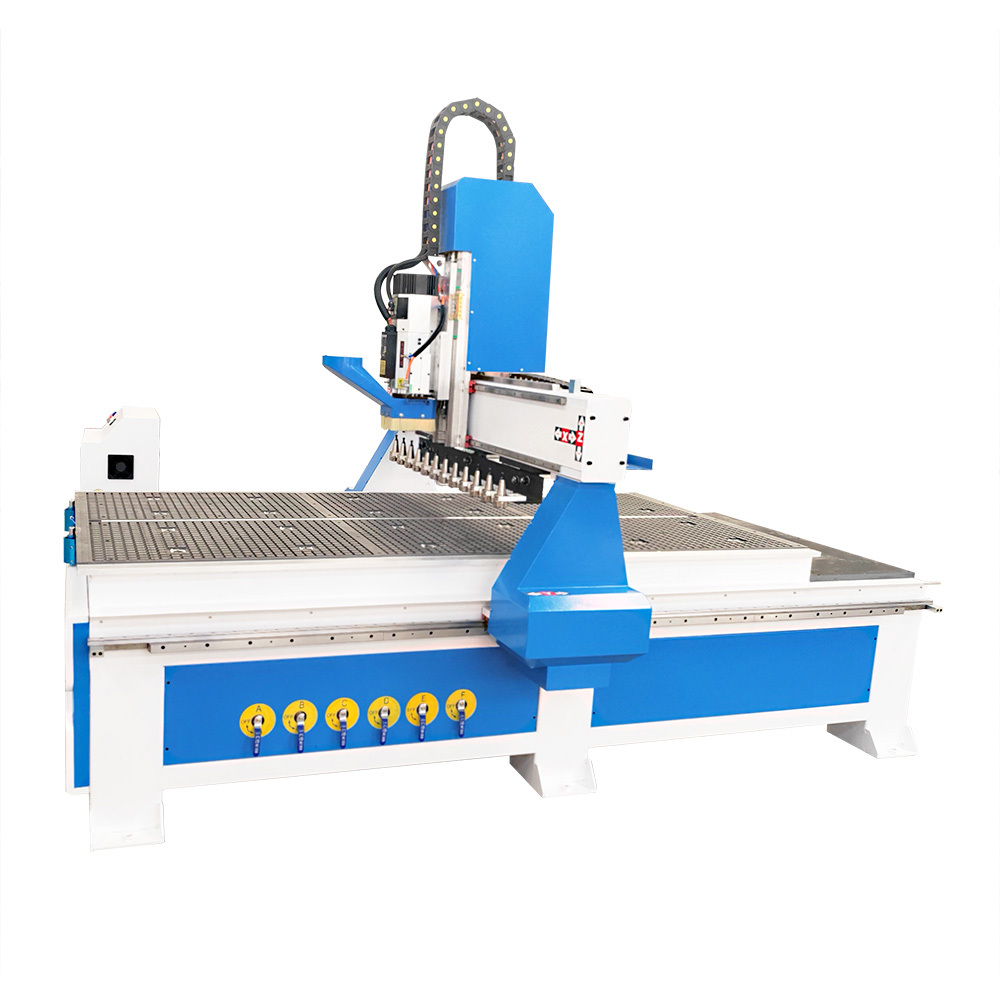

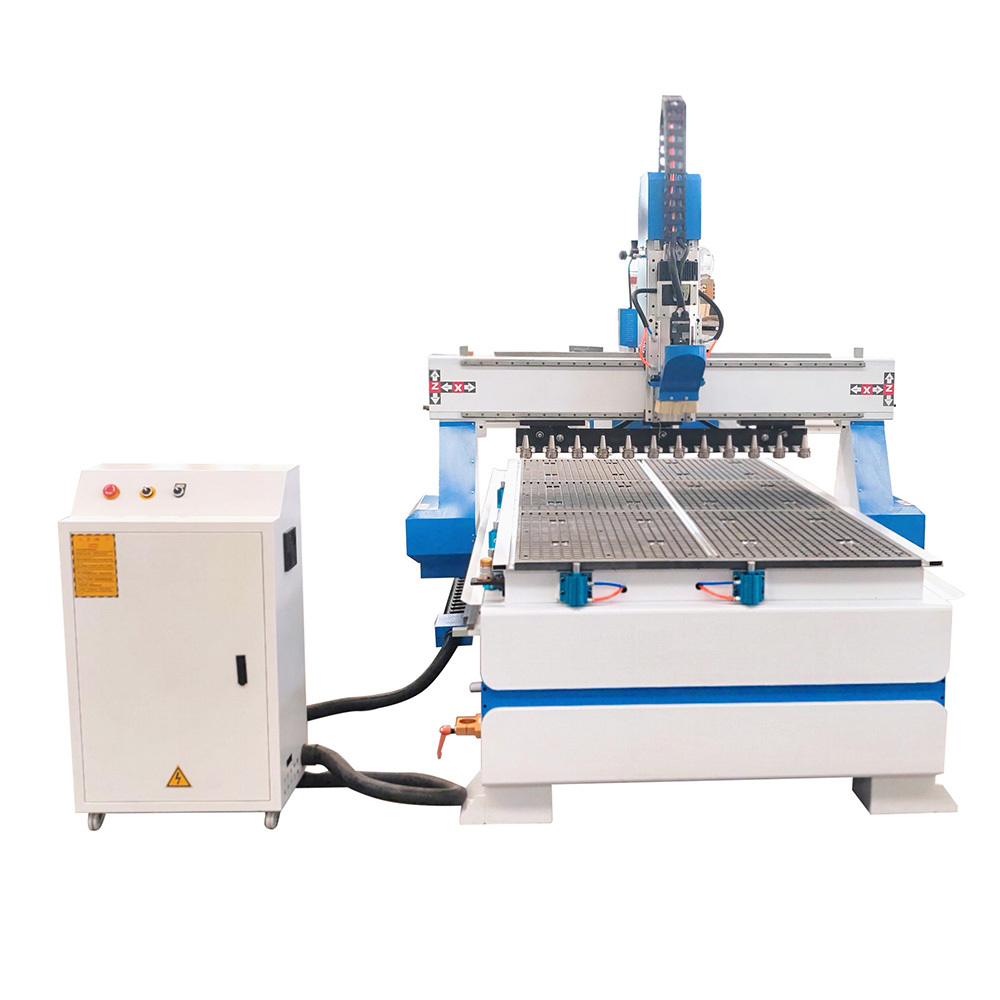

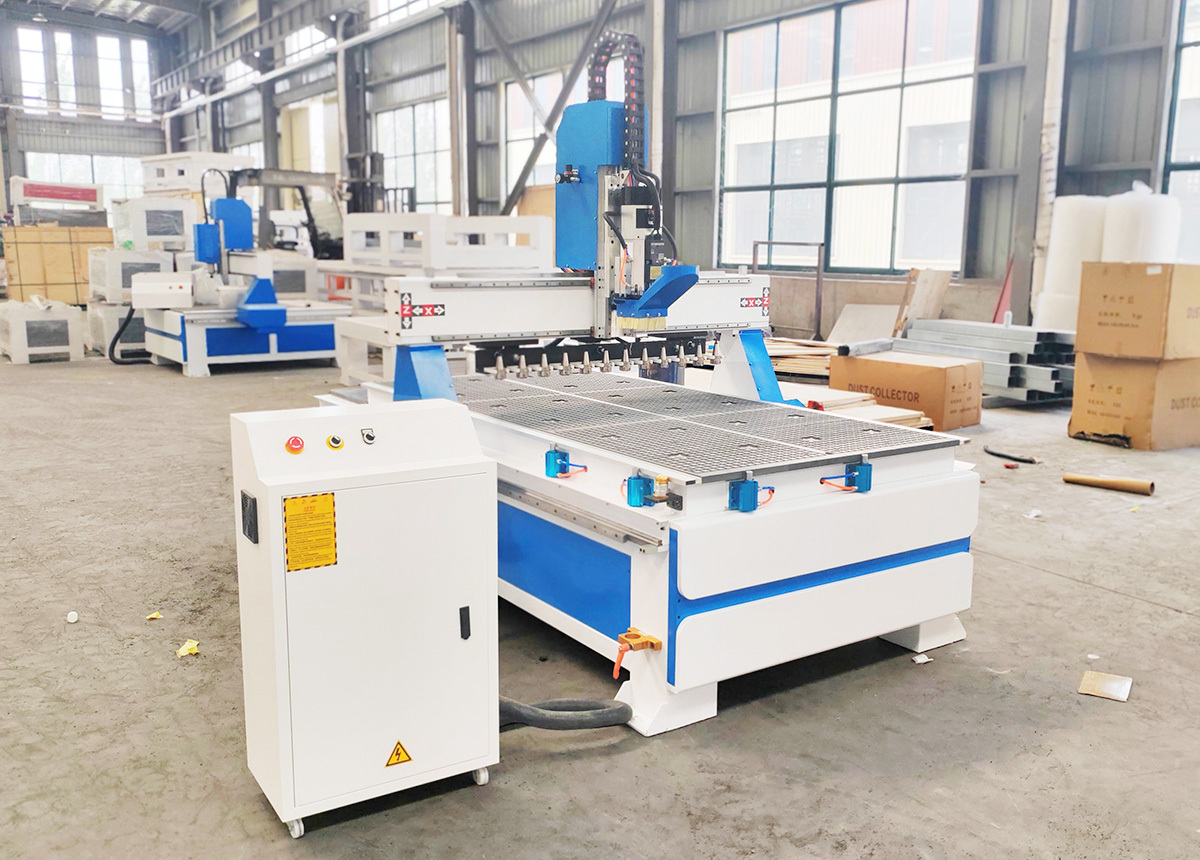

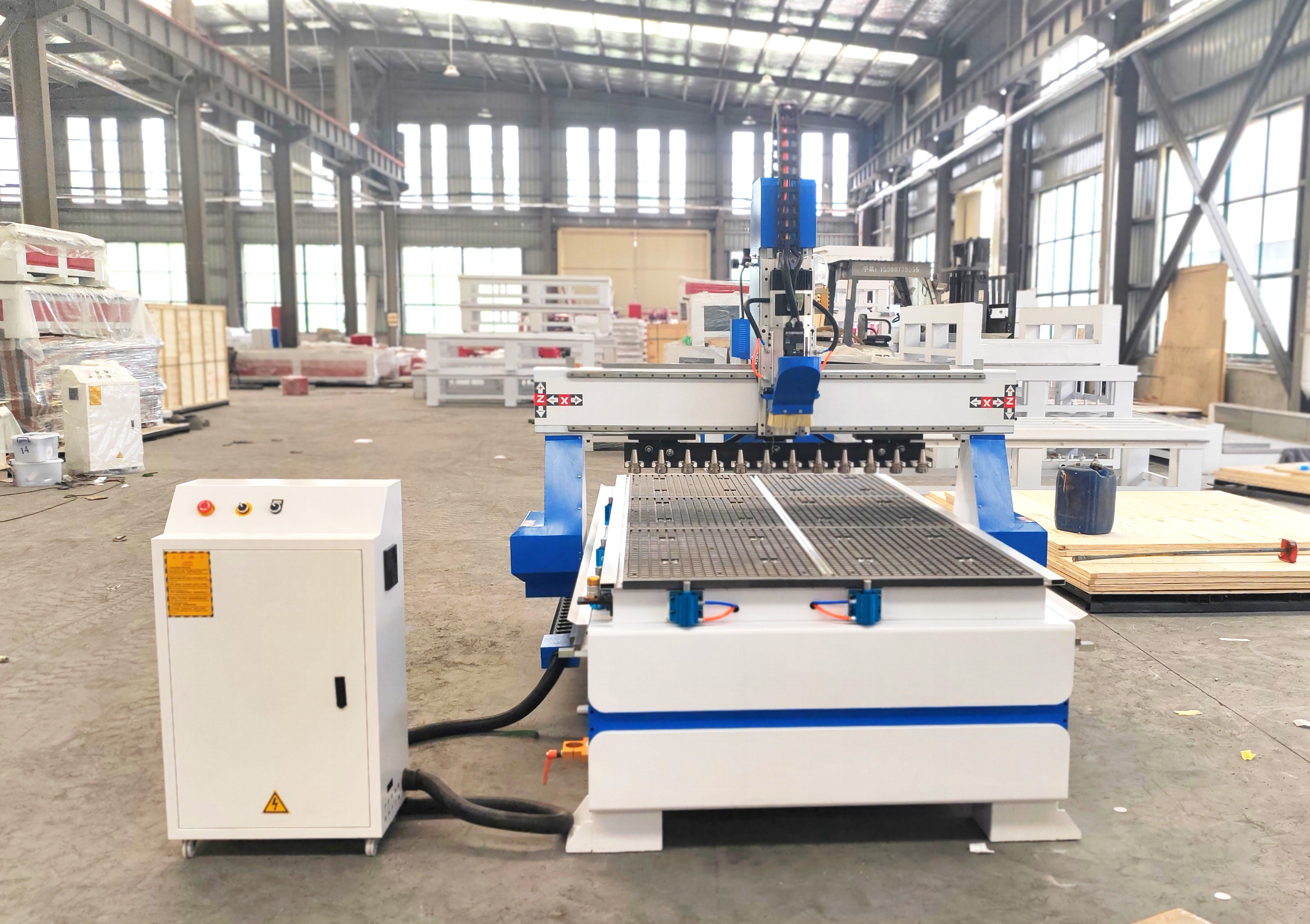

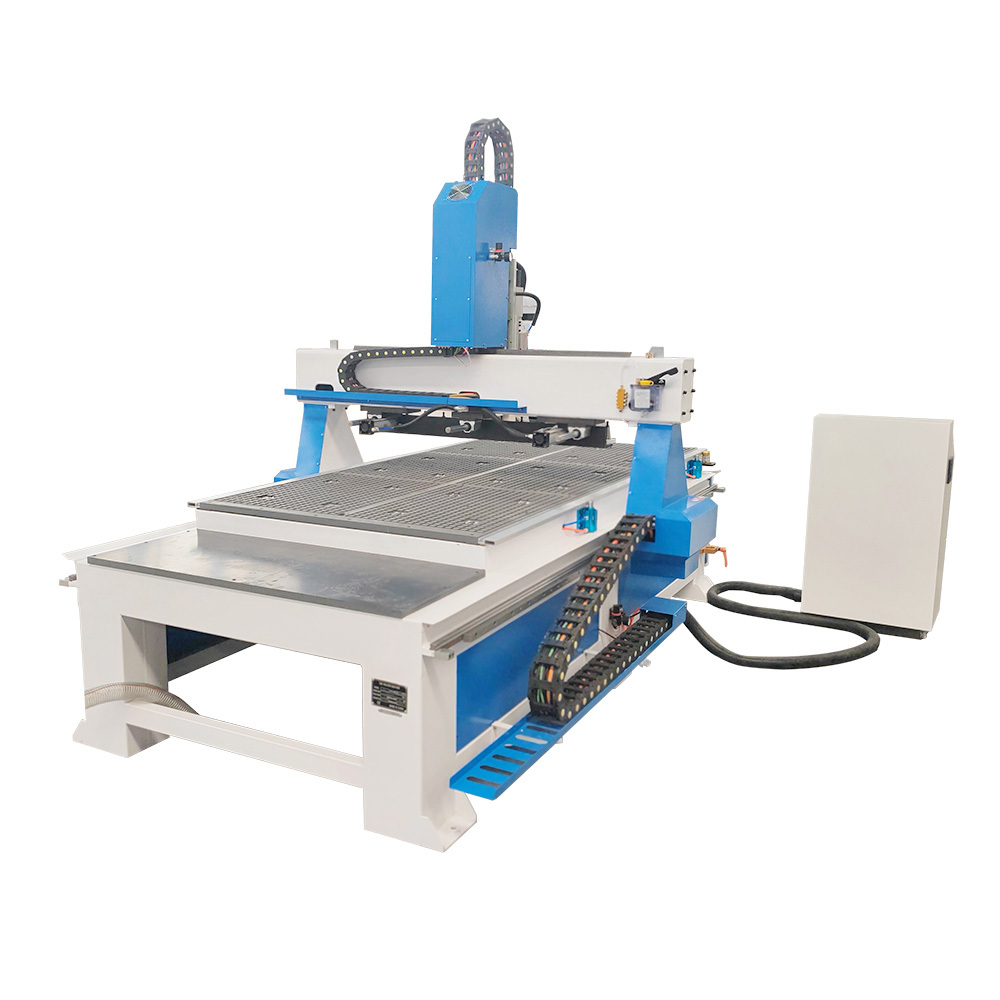

cnc router 1325 atc
Product Description:

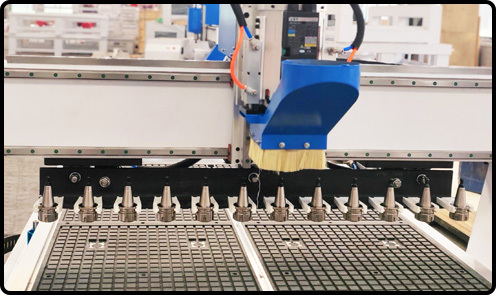

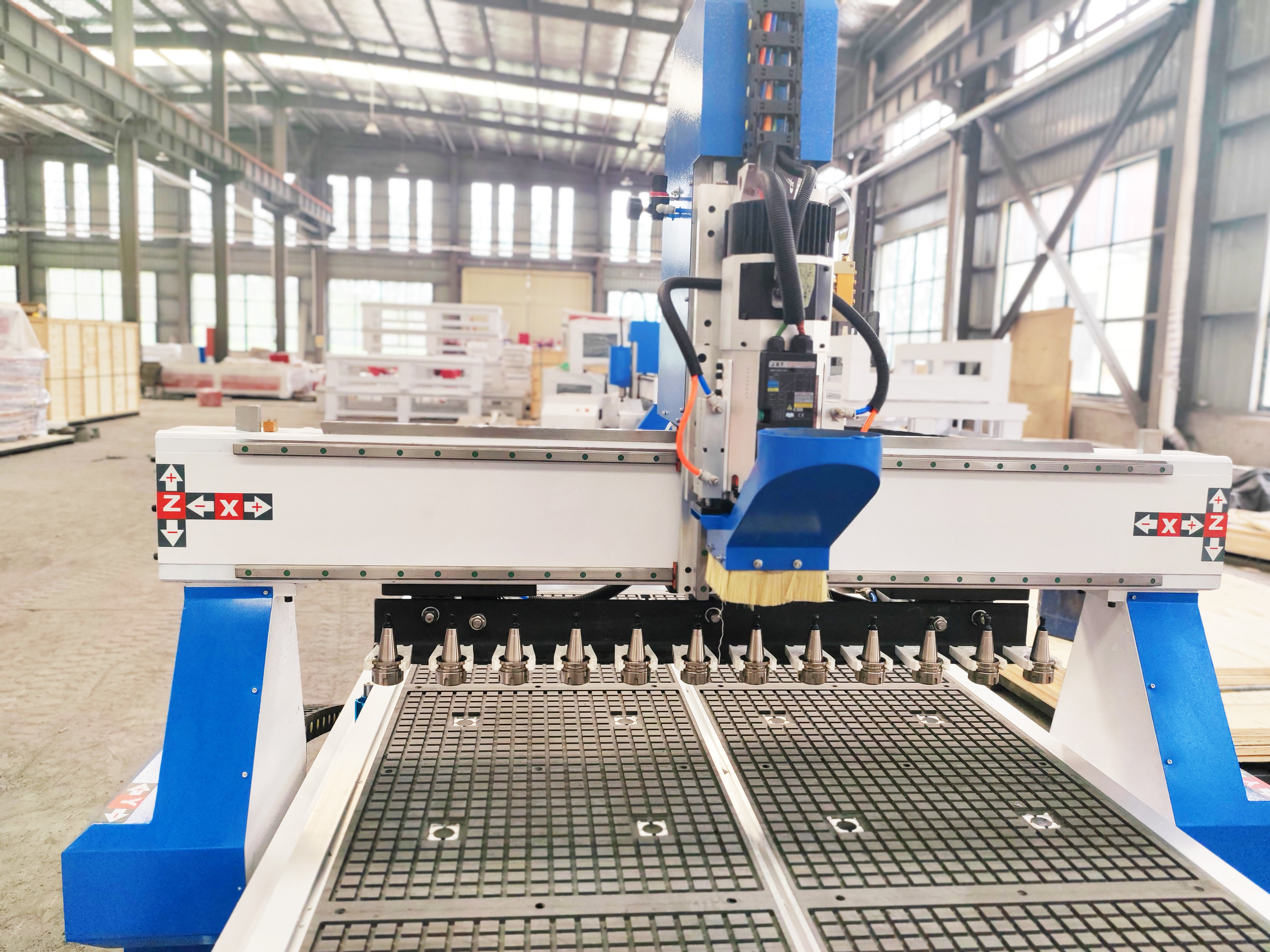

1. The cnc router 1325 atc machine with atc tool changing system and 12 tools, which are controlled by CNC system to quickly change tools for sample processing.
2. Adopting computer control system to ensure high-speed and high-precision machining of the machine tool, meeting the requirements of precision machining.

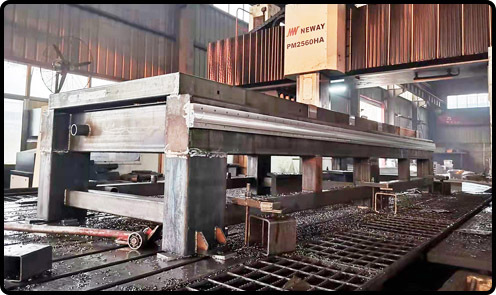

3. The cnc router 1325 atc machine tool is welded from thick walled steel pipes, providing a rigid and stable processing platform that increases its service life and accuracy.
4. cnc router 1325 atc machine with 9kw air-cooled spindle, the high-power spindle meets the processing needs of different materials.

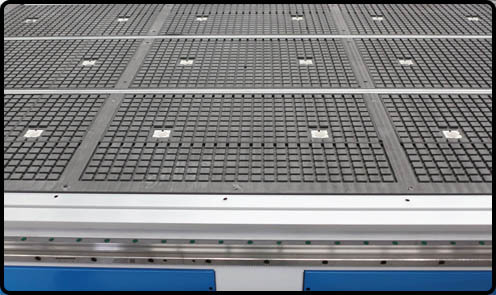

5. The six zone vacuum adsorption table can effectively adsorb plates of different sizes, improving processing efficiency.
Product Parameters:
| Description | Parameter |
| XYZ working area | 1300*2500*300mm/2000*3000*300mm/2100*3000*300mm/ |
| XYZ travel positioning accuracy | ±0.03/300mm |
| XYZ repositioning positioning accury | ±0.02mm |
| Table surface | Vacuum table |

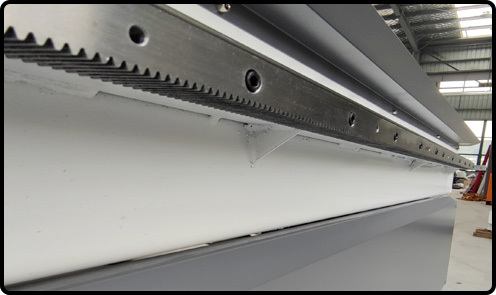

| Drive system X-Y axis | Rack actuation |
| Max velocity | 0-60000mm/min |
| Max working speed | 0-25000mm/min |
| Work mode | Hybrid servo motor |
| Working voltage | AC220V or 380V |
| Operating system | Mach3 (optional LNC,Weihong ) control system |
| X-Y resolution | <0.02mm |
| Gross weight | 2000kg |
This cnc router 1325 atc machine has multiple sizes to choose . Our factory produces CNC router machine,and exported to more than 80 countries and cooperate with sales representatives from multiple countries. We can provide OEM and ODM.
Main accessories:


|
|
9KW air cooled spindle,with high precision and high power | High stability double-layer lathe |
|
|

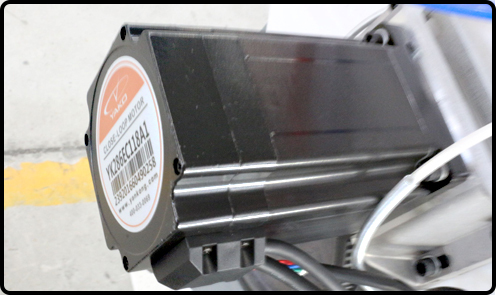

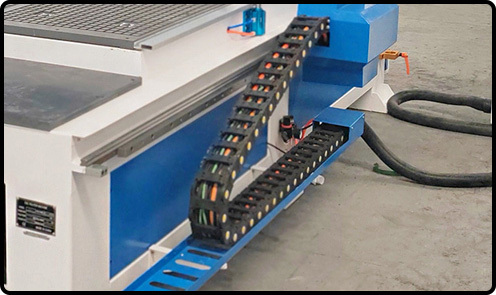

Yako hybrid servo motor, Can carving high-precision samples | High quality closed drag chain,Can ensure the safety of machines and staff |
|
|
Taiwan guide,it has bearing gravity, smooth operation and high precision. | Vacuum table can absorb different sizes and different shaped materials tightly. |
|
|

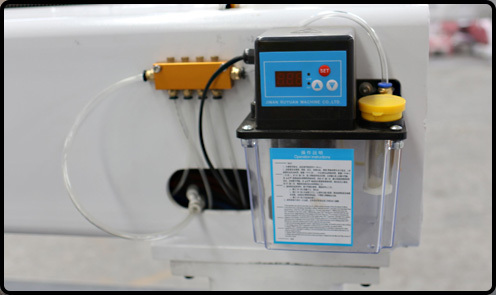

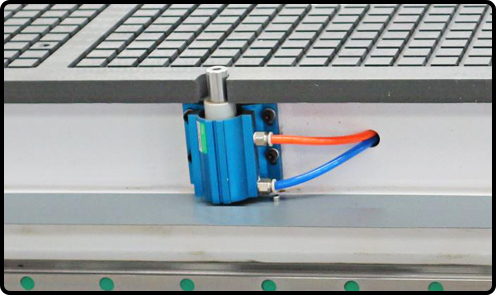

Positioning cylinders can effectively locate material | Automatic lubrication system, so it can lubricate more easily. |
Working samples:

The cnc router 1325 atc machine can carve and cut various wooden materials, including PVC, gypsum, two-color panels, aluminum-plastic panels, organic glass, acrylic, copper, iron, aluminum and other metals, as well as various hard plastics.
Woodworking industry: furniture manufacturing, musical instrument manufacturing, wooden crafts, artworks, decorations, gifts, models, etc
Advertising industry: carving and cutting of acrylic, two-color board, PVC, ABS board, aluminum board, billboards, signs, copper, etc.
Mold industry: It can carve various molds, wood molds, letter molds, aviation wood molds, building models, foam molds, etc.

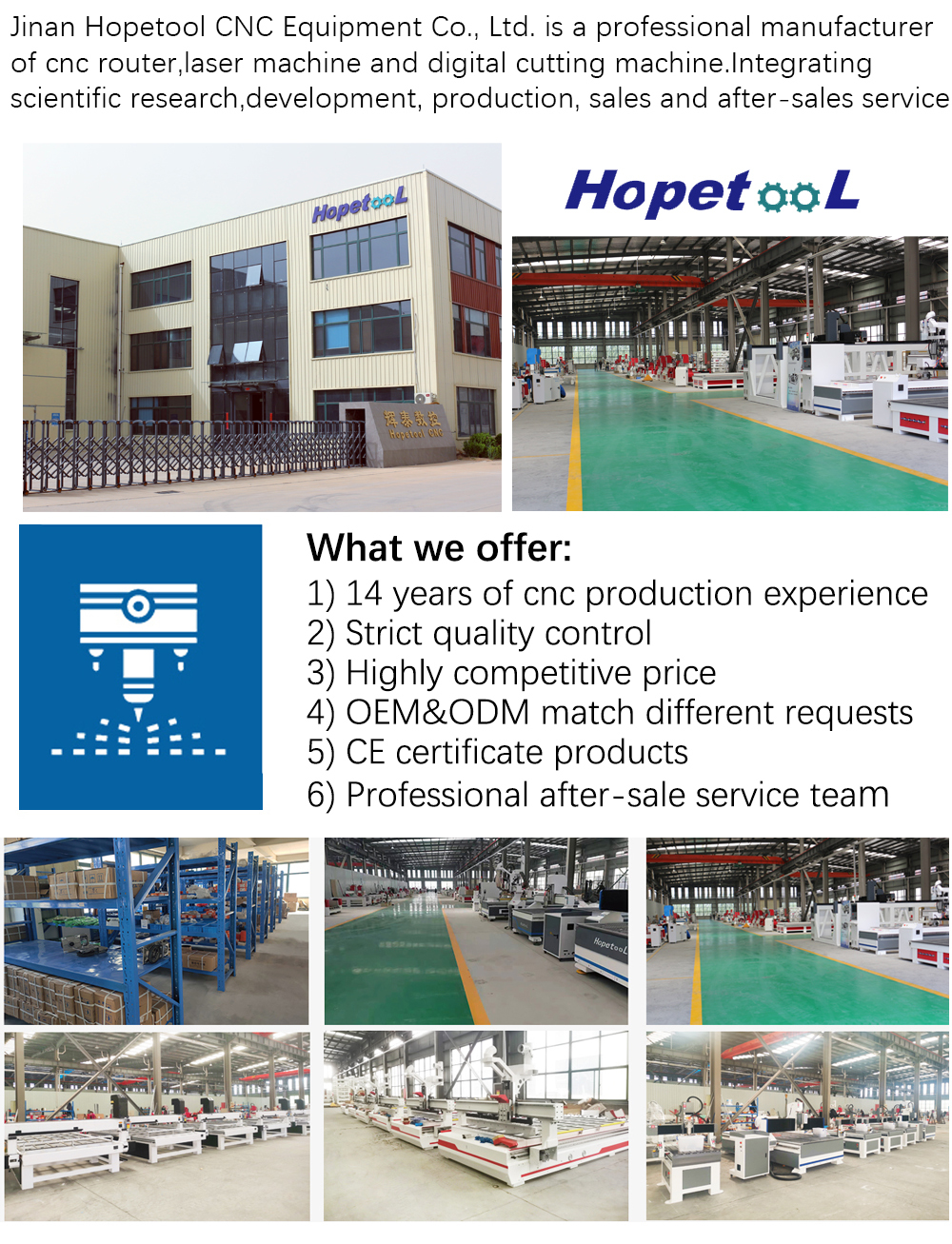

Our factory:
What we can offer?
1. We will supply with the machine operation manual in English version for installing and operation.
2.Customer can come to our factory training .
3.Our engineer can go to customer's factory training.
4.Our warranty is 2 years counting from the date when the Machine arrives at the port ofdestination.
5.We will supply after service 24 hours,customer can contact us any time.
6.When some problems can't be solved by customers, our engineer can go to door to help.
- Name:
- cnc router 1325 atc
- Table Surface:
- Vacuum Table
- Xyz Working Area:
- 1300*2500*300/2000*3000*300/2100*4000*300mm
- Table Size:
- Work Mode:
- Hybrid servo motor
- Spindle Power:
- 9 Kw JST or HQD ATC air cooled spindle
- Spindle Speed:
- 0-24000rmp
- Max.Working Speed:
- 0-25000mm/Min
- Working Voltage:
- AC220V or 380V
- Operating System:
- DSP/Mach3/Ncstudio control system
- Weight (Kg):
- 1500kg
