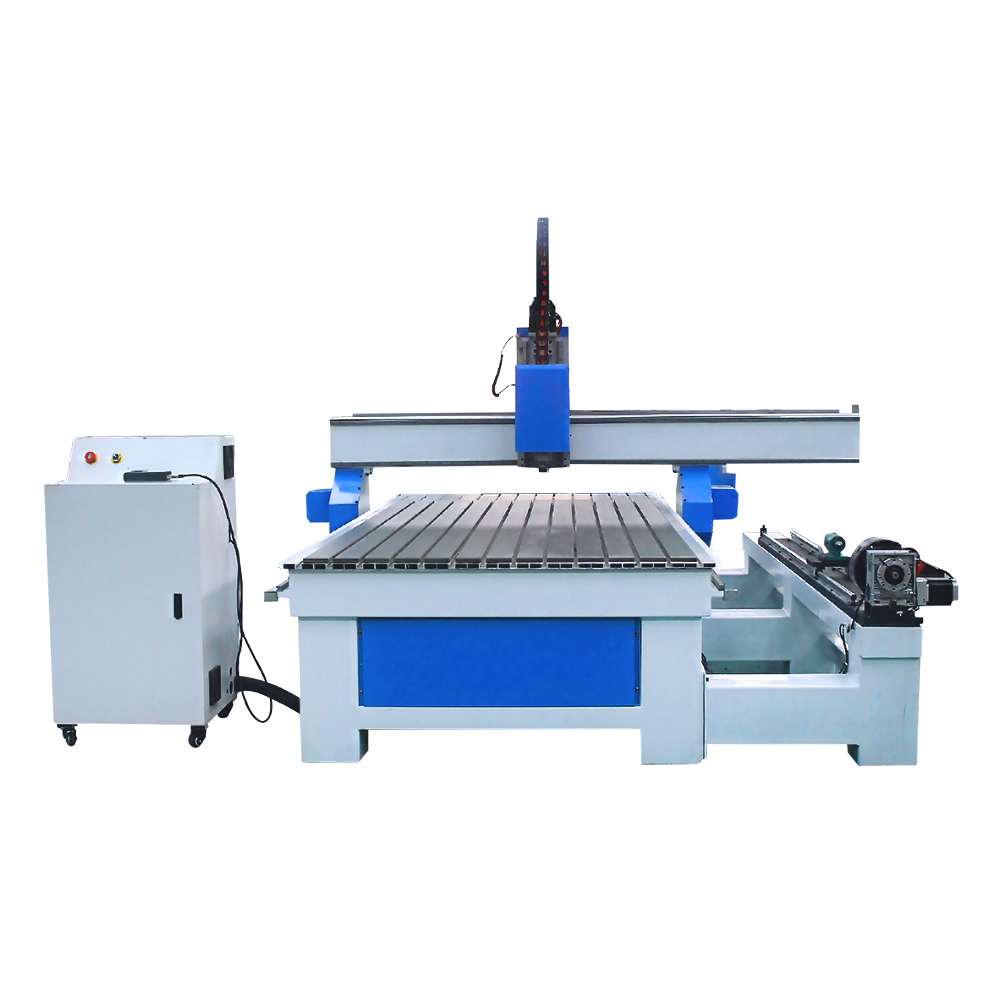

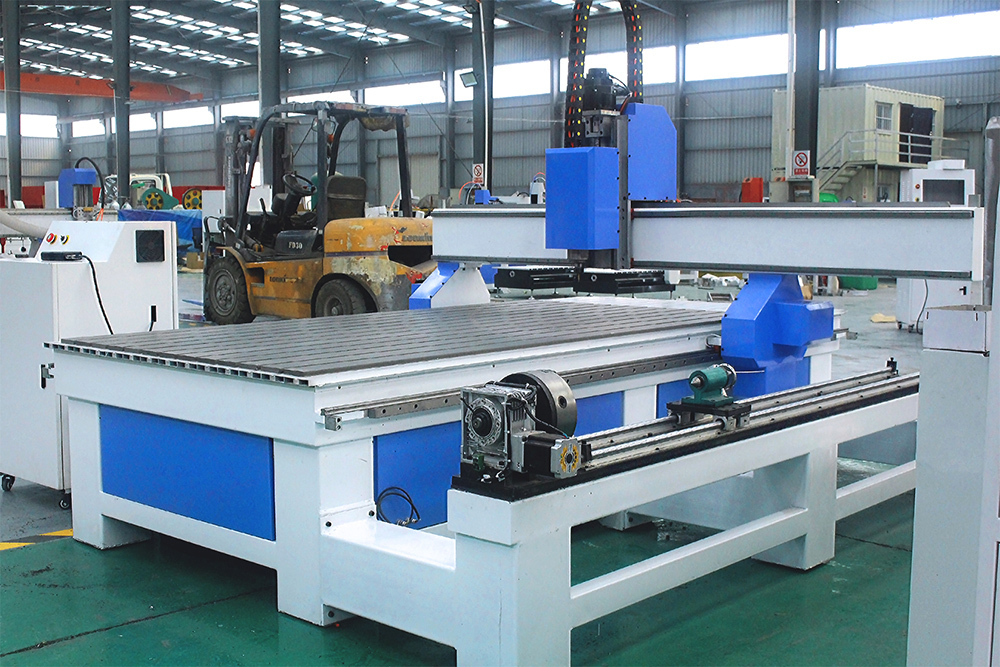

cnc router with 4th axis
Product Description:
*The cnc router with 4th axis table size (1300m * 2500mm) can optional 1500*3000mm,2000*3000mm,2100*3000mm,and others .and the rotary axis can carve the cylindrical 。
*The machine adopts Taiwanese linear guide rails and racks, with high precision and stable operation,
*Automatic lubrication system, easy to operate and maintain
*3.2kw water cooling spindle,fast speed, low noise。
*The bed lathe is made of thickened square tubes welded together, which is sturdy, durable, and can improve accuracy.
*Y-axis dual motor drive, fast and stable speed.
*Extra long warranty period (24 months)
Product Parameters：
| Description | Parameter |
| XYZ working area | 1300*2500*200mm |
| XYZ travel positioning accuracy | ±0.02 |
| XYZ repositioning positioning accury | ±0.025mm |
| Table surface | Aluminium T slot table |
| Drive system X-Y axis | Rack actuation |
| Max velocity | 0-50000mm/min |
| Max working speed | 0-25000mm/min |
| Work mode | Stepper motor and driver |
| Working voltage | AC220V or 380V |
| Operating system | DSP (optional Mach3 or weihong) control System |
| X-Y resolution | <0.02mm |
| Table size | 1320MM*3010MM |
| Gross weight | 1200kg |
This cnc router with 4th axis has multiple sizes to choose . Our factory produces CNC router machine，and exported to more than 80 countries and cooperate with sales representatives from multiple countries. We can provide OEM and ODM.
Application
The machine can be applied to various materials, such as wood, density board, fiberboard, acrylic acid, PVC, foam, resin, PTFE board, etc. In addition, there are some soft metals that can be processed, such as copper, aluminum, etc.
Main accessories：
|

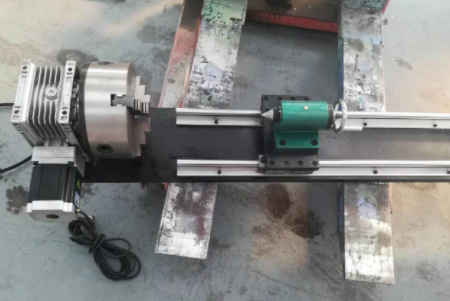

The rotation axis can achieve local rotation carving. If you need to carve 3D sample of cylinder, you need to add another rotation axis |
| 3.2KW water cooling spindle Dust proof for X axis and spindle Z-axis ball screw transmission |

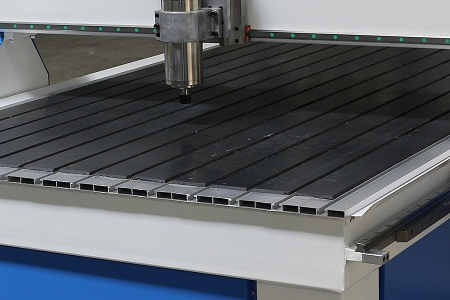

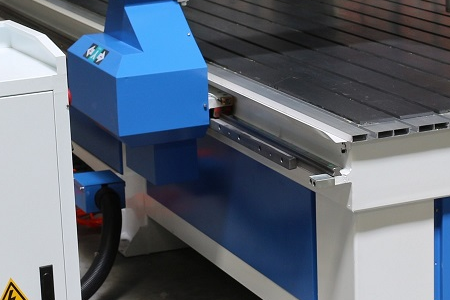

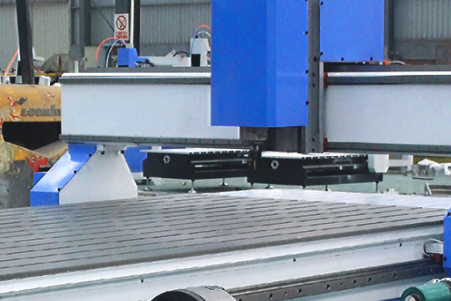

| Aluminium T slot table Two Y-axis motors drive, stable operation |
| cnc router with 4th axis with high precision helical gear rack and guide rail |

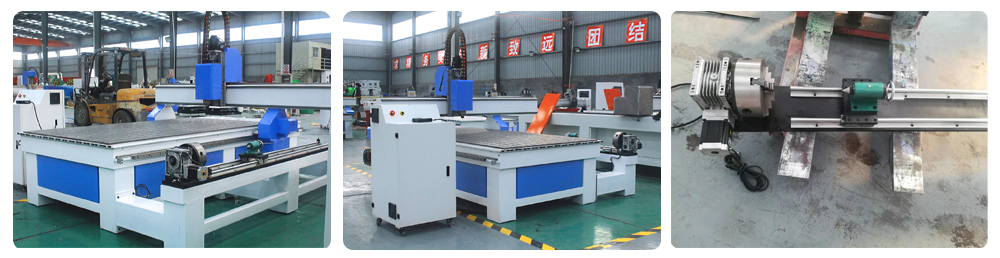

Our factory:
- Name:
- cnc router with 4th axis
- Table Surface:
- Aluminium T slot table
- Xyz Working Area:
- 1300*2500*200mm
- Table Size:
- Work Mode:
- Stepper motor（optional servo motor and driver）
- Spindle Power:
- 3.2 KW water cooling spindle
- Spindle Speed:
- 0-24000rmp
- Max.Working Speed:
- 0-25000mm/Min
- Working Voltage:
- AC220V or 380V
- Operating System:
- DSP/Mach3/Ncstudio control system
- Weight (Kg):
- 1300kg
