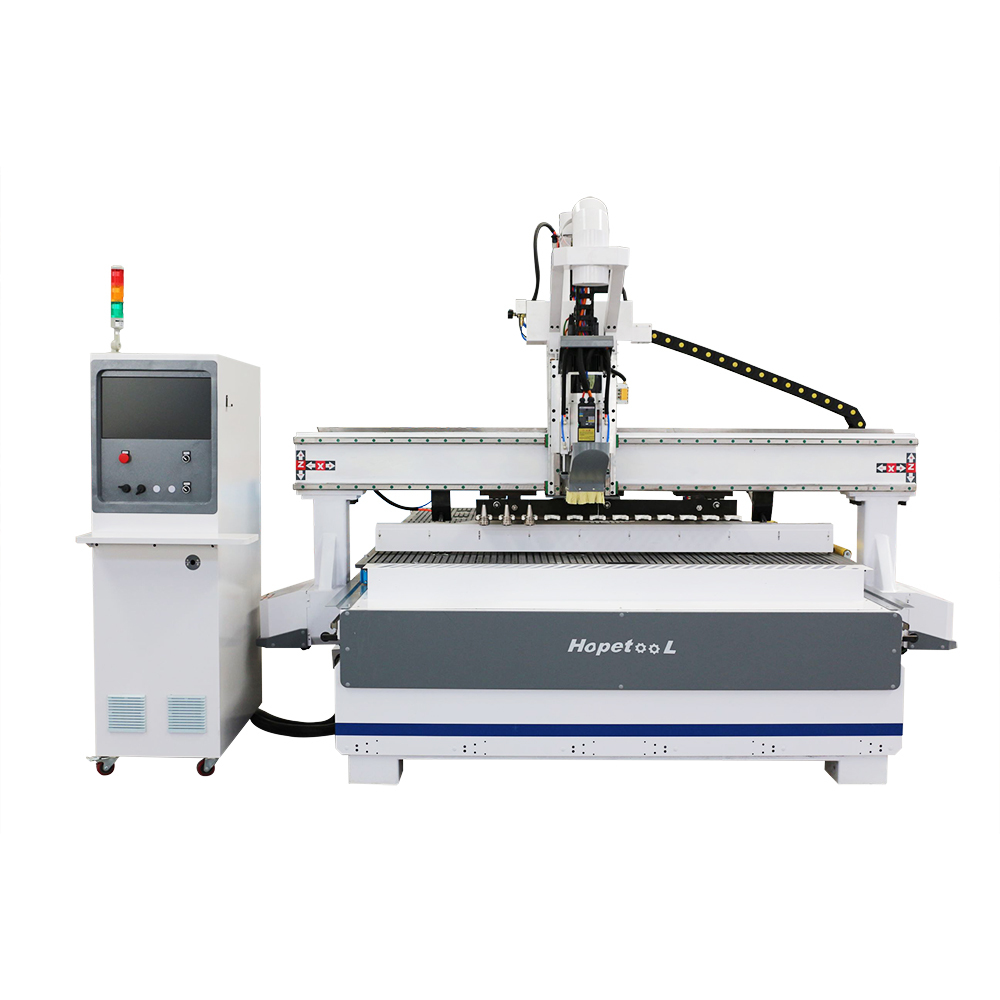

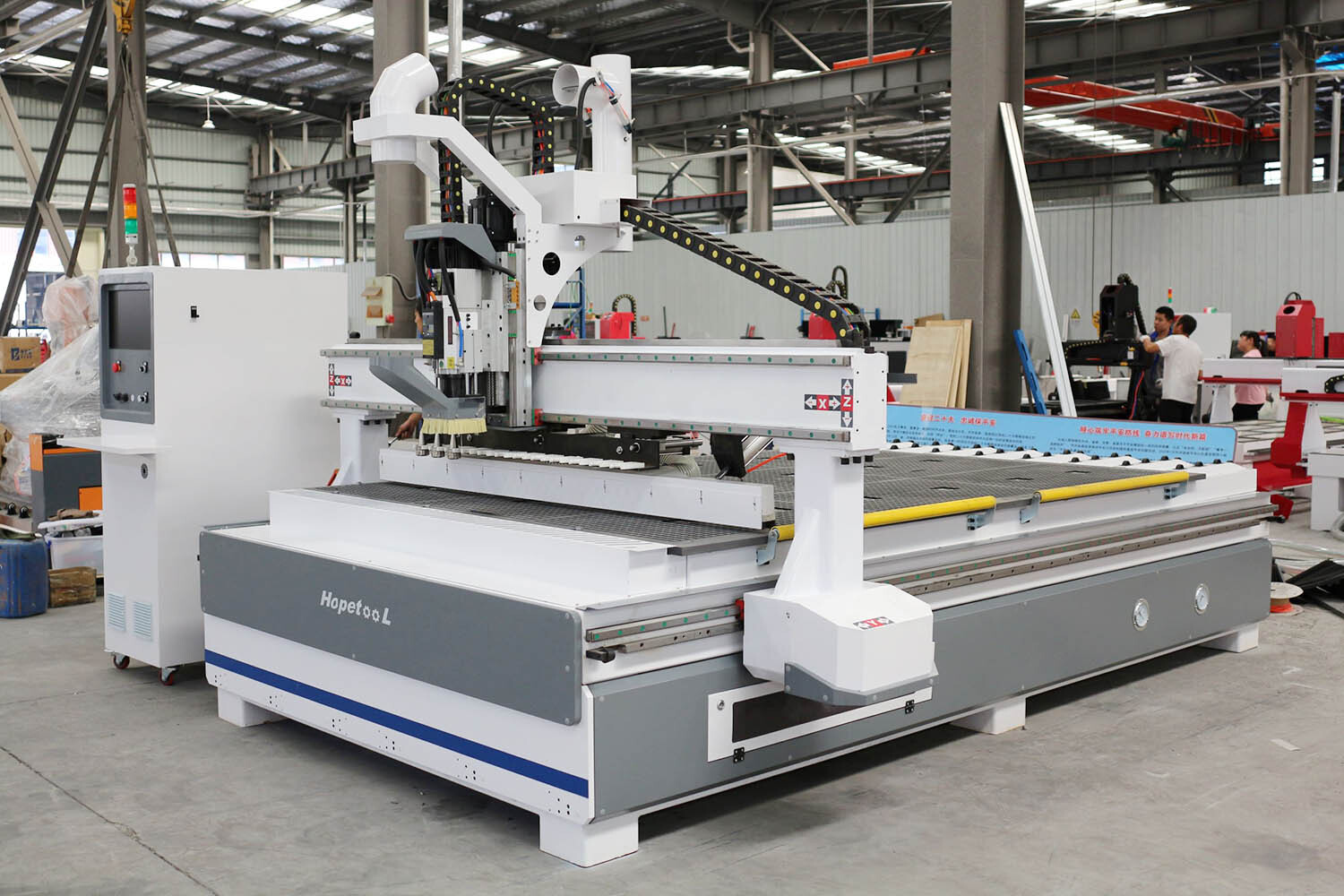

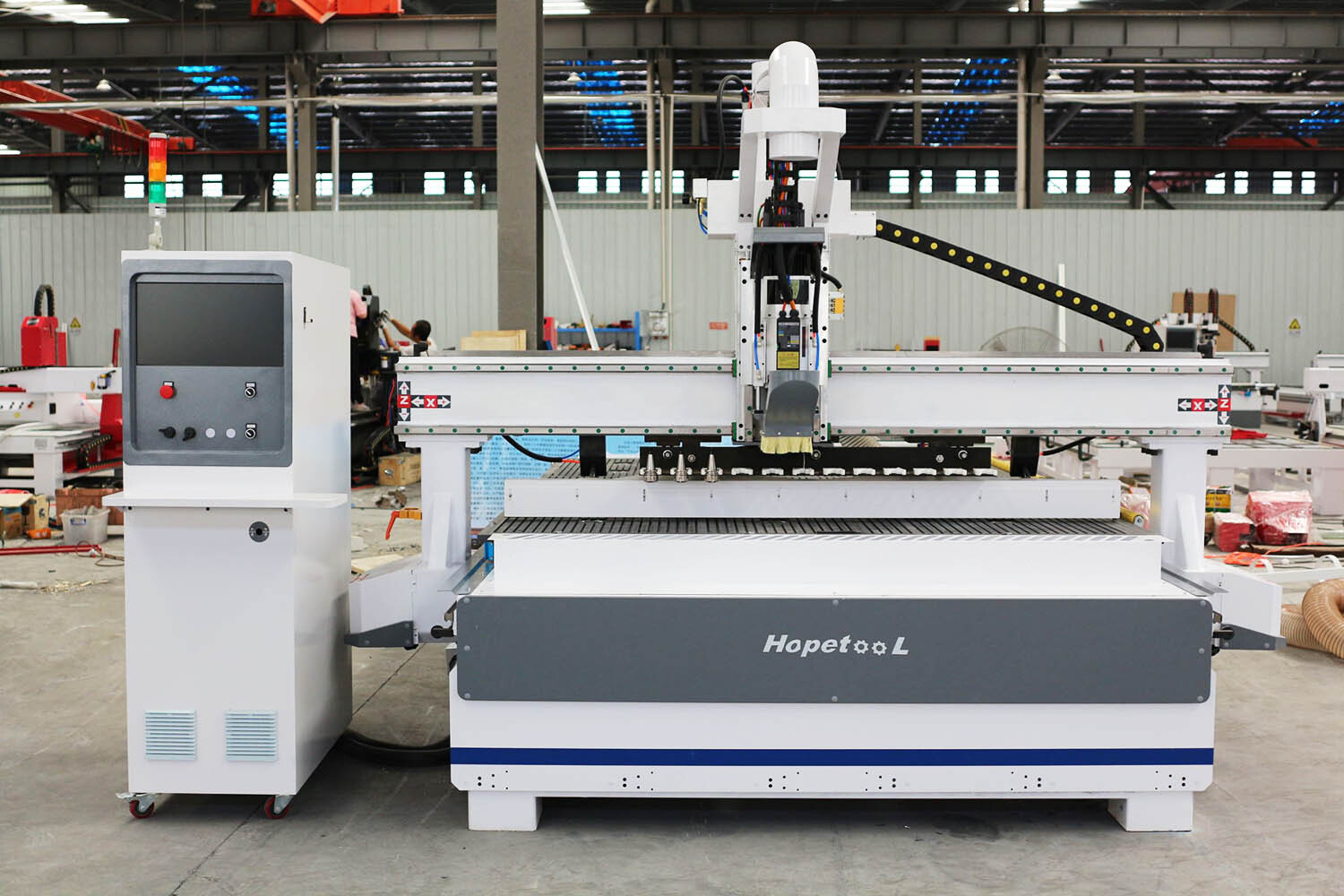

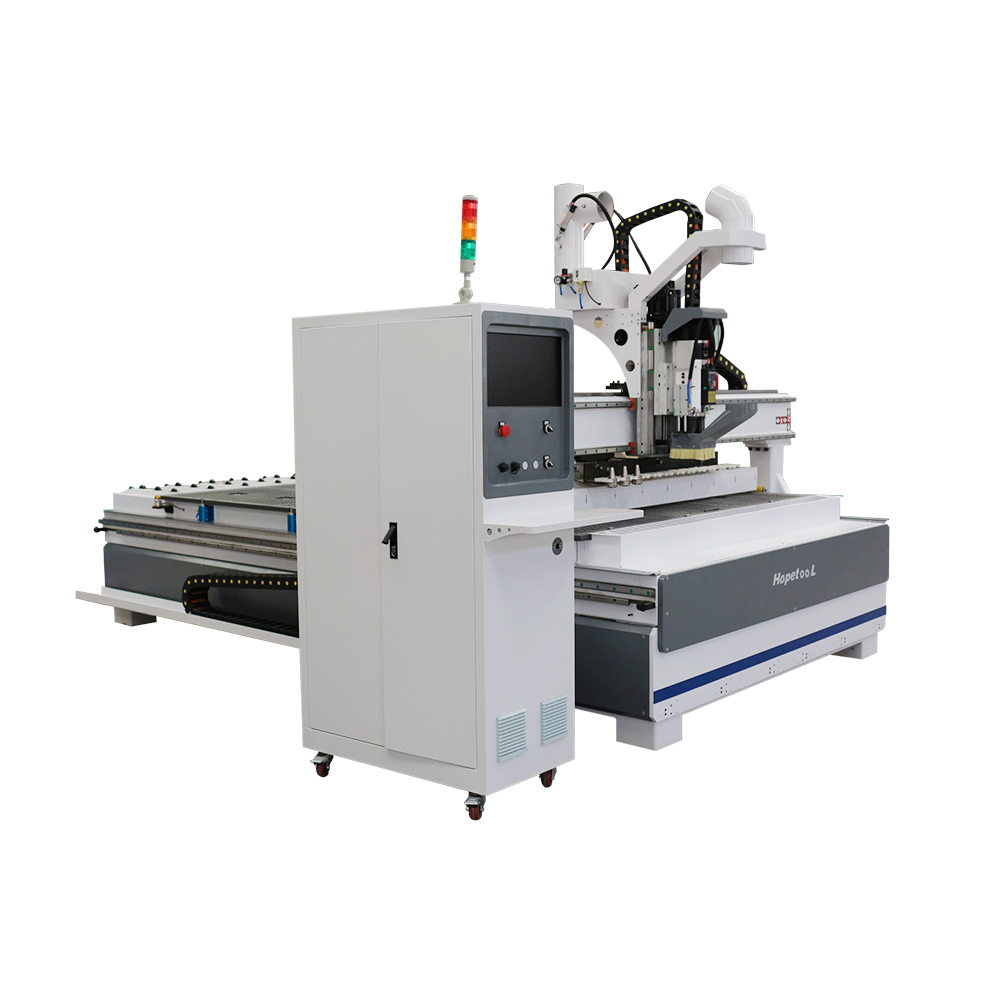

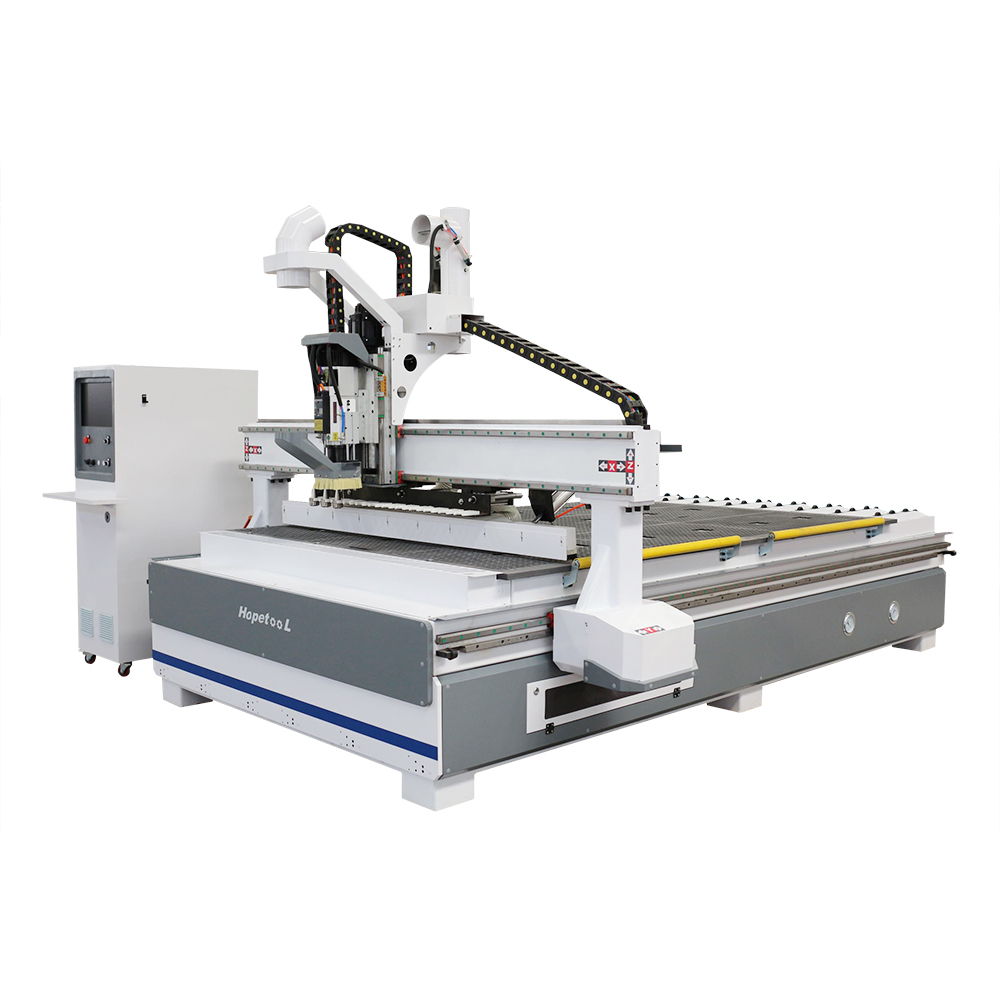

2030 cnc router with atc machine
Product Description:
1. The 2030 cnc router with atc machine with atc tool changing system and 12 tools, which are controlled by a CNC system to quickly change tools for sample processing.
2. Adopting computer control system to ensure high-speed and high-precision machining of the machine tool, meeting the requirements of precision machining.
3. The 2030 cnc router with atc machine tool is welded from thick walled steel pipes, providing a rigid and stable processing platform that increases its service life and accuracy.
4. 2030 cnc router with atc machinewith 9kw air-cooled spindle, the high-power spindle meets the processing needs of different materials.
5. The six zone vacuum adsorption table can effectively adsorb plates of different sizes, improving processing efficiency.
Product Parameters：
| Description | Parameter |
| XYZ working area | 2000*3000*300mm/2100*3000*300mm/2100*4000*300mm |
| XYZ travel positioning accuracy | ±0.03/300mm |
| XYZ repositioning positioning accury | ±0.02mm |
| Table surface | Vacuum table |
| Drive system X-Y axis | Rack actuation |
| Max velocity | 0-60000mm/min |
| Max working speed | 0-25000mm/min |
| Work mode | Servo |
| Working voltage | AC220V or 380V |
| Operating system | LNC/SYNTEC System |
| X-Y resolution | <0.02mm |
| Table size | 2750*4000mm/2850*4000mm/2850*5000mm |
| Gross weight | 2000kg |
This 2030 cnc router with atc machine has multiple sizes to choose . Our factory produces CNC router machine，and exported to more than 80 countries and cooperate with sales representatives from multiple countries. We can provide OEM and ODM.
Main accessories：
|
|
9KW air cooled spindle,with high precision and high power | Linear tool changing system with 12 tools |
|
|
Yako servo motor, Can carving high-precision samples | High quality closed drag chain，Can ensure the safety of machines and staff |
|
|
Auxiliary feeding wheel saves manpower and increases work efficiency | Vacuum table can absorb different sizes and different shaped materials tightly. |
|
|
Taiwan guide,it has bearing gravity, smooth operation and high precision. | Automatic lubrication system, so it can lubricate more easily. |
The application fields of 2030 cnc router with atc machine are very wide：
1. Woodworking industry: furniture manufacturing, door and window processing, handicraft production, etc. Such as cabinets, wardrobes, bedside tables, sofas, coffee tables, solid wood doors, composite doors, anti-theft doors, aluminum alloy doors and windows, etc. In terms of handicraft production, such as picture frames, photo frames, pendants, ornaments, boxes, etc.
2. Advertising industry: advertising signs, logo production, acrylic cutting, molding system modules, material advertising decoration products, etc
Our factory:
- Name:
- CNC Router Machine atc
- Table Surface:
- Vacuum Table
- Xyz Working Area:
- 2100*3000*300/2000*3000*300/2100*4000*300mm
- Table Size:
- 2750*4000mm/2850*4000mm/2850*5000mm
- Work Mode:
- Servo Motor
- Spindle Power:
- 9 Kw JST or HQD ATC air cooled spindle
- Spindle Speed:
- 0-24000rmp
- Max.Working Speed:
- 0-25000mm/Min
- Working Voltage:
- AC220V or 380V
- Operating System:
- Taiwan Lnc/Syntec System
- Weight (Kg):
- 2000kg
