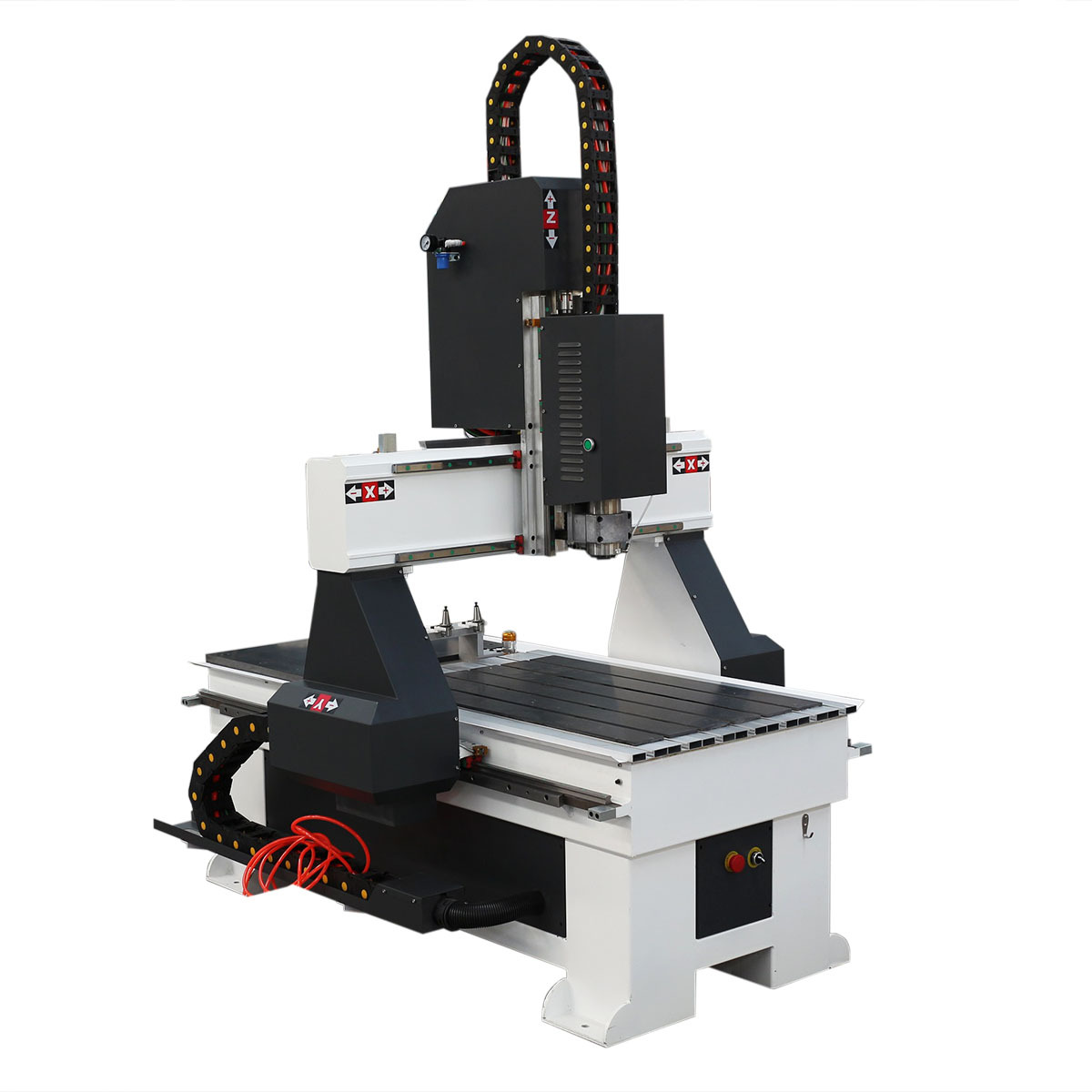

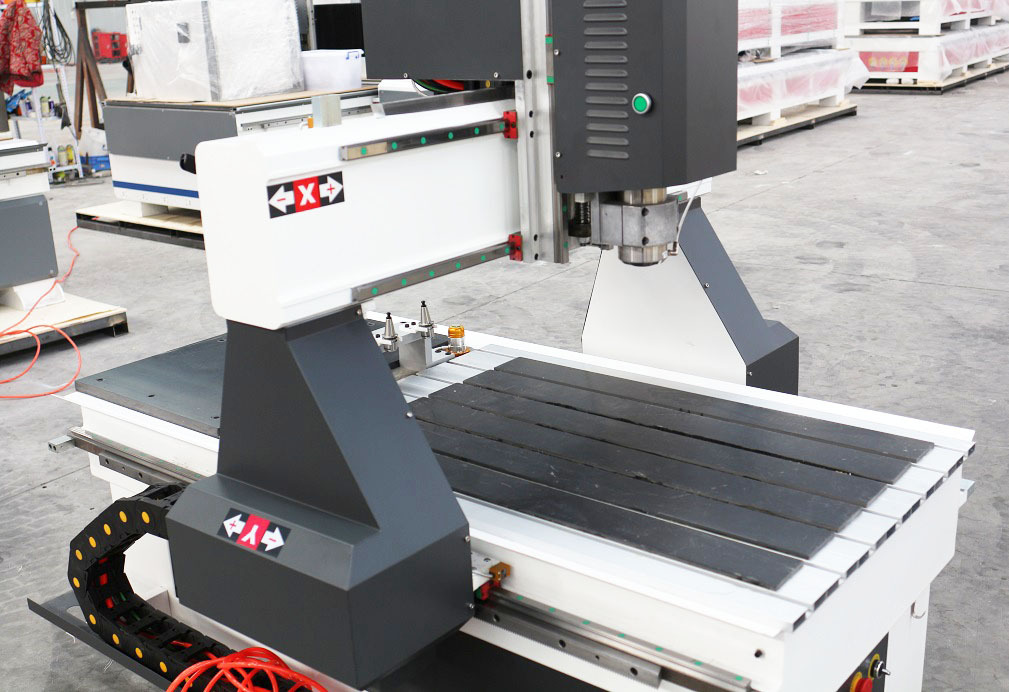

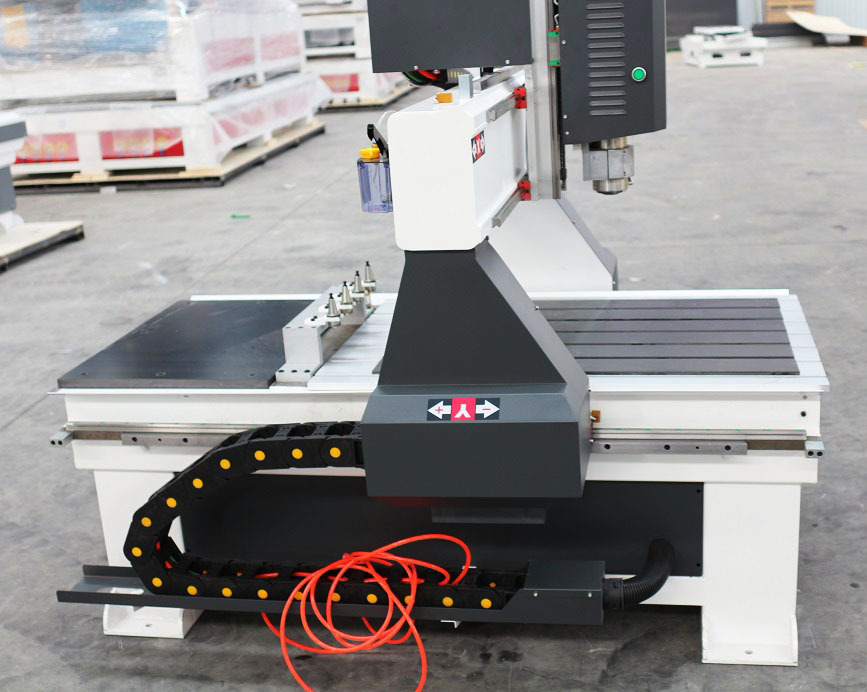

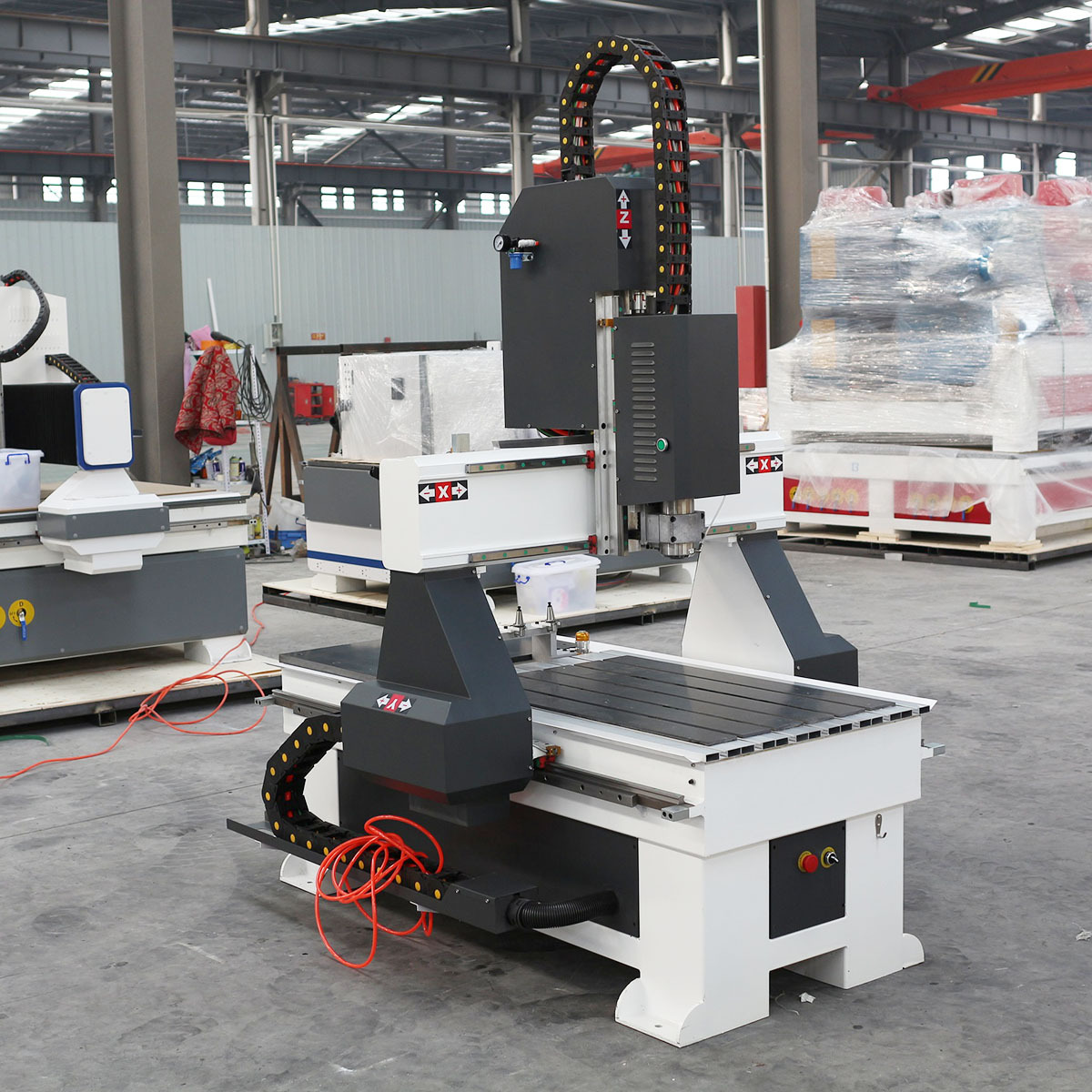

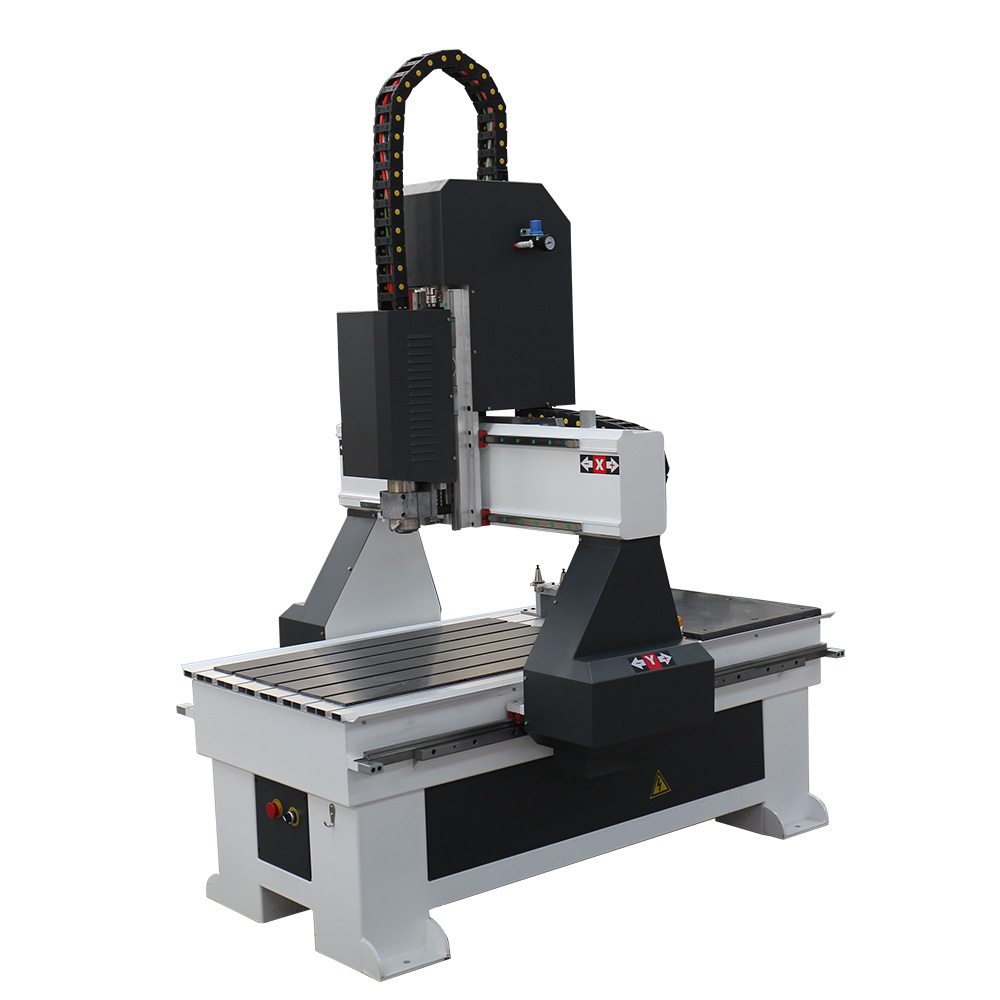

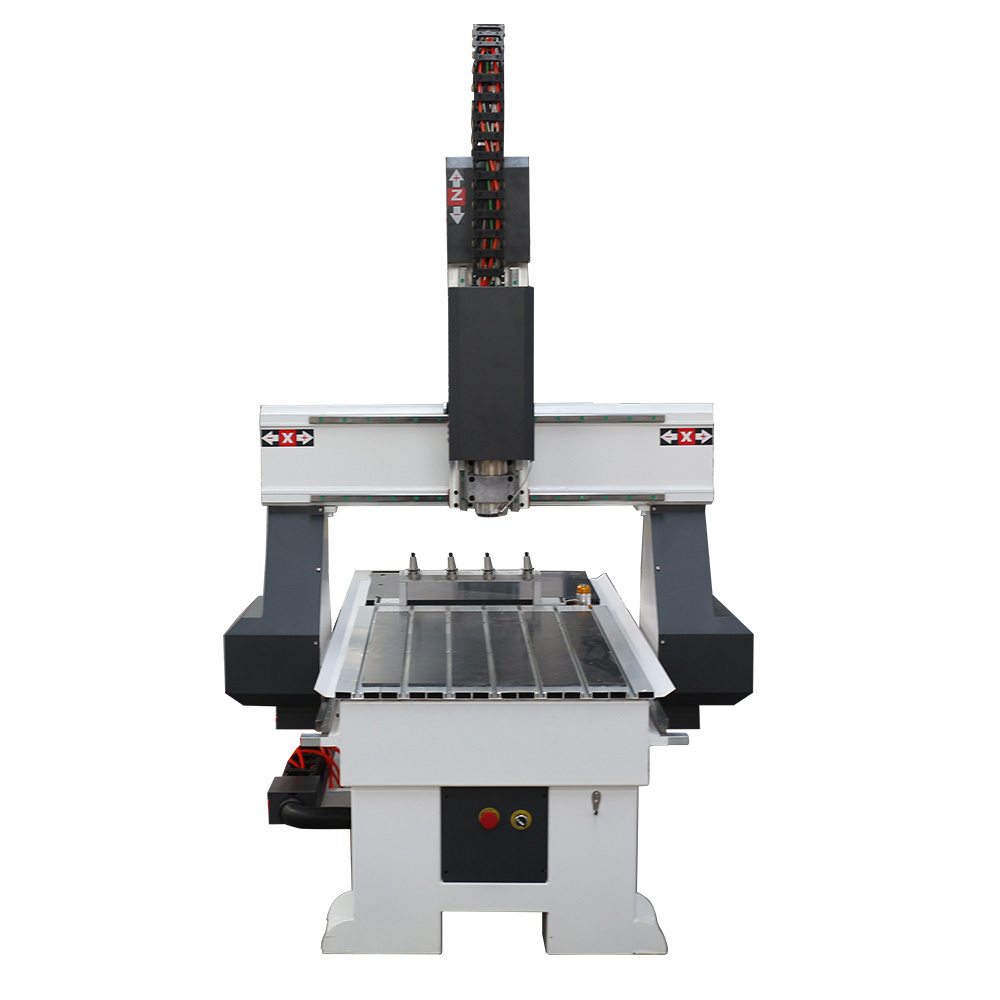

small cnc router with atc
Characteristics of small cnc router with atc
1. The Steel tube welded frame
2. Taiwan TBI Ballscrew transmission for Z axis，Hiwin square linear guide，Helical Rack and gear for X,Y axis。
3. 2.2kw water cooling spindle, Linear automatic tools changer 8 tools，fast speed 0-24000rpm, low noise.
4.Weihong control system,NCStudio is a standard Windows user interface that is easy to operate, reliable, and easy to learn.
5. compatible with various CAD/CAM design and production software such as TYPE3, Artcam, Jingdiao JD, Wentai Carving, UG, MasterCAM, PowerMill, etc.
Product Parameters：
| Description | Parameter |
| XYZ working area | 600*900mm/600*1200mm/900*1200m*200mm |
| XYZ travel positioning accuracy | ±0.03/300mm |
| XYZ repositioning positioning accury | ±0.02mm |
| Table surface | Aluminium T slot table |
| Drive system X-Y axis | Rack actuation |
| Max velocity | 0-60000mm/min |
| Max working speed | 0-25000mm/min |

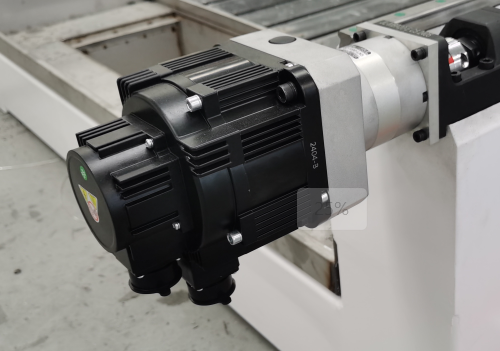

| Work mode | Hybrid servo motor |
| Working voltage | AC220V or 380V |
| Operating system | DSP/Weihong /Mach3 control System |
| X-Y resolution | <0.025mm |
| Gross weight | 1000kg |
This small cnc router with atc has ultiple sizes to choose . We can customize the size, color, configuration, and appearance according to customer requirements.
Main accessories：
|
|
|
|
|

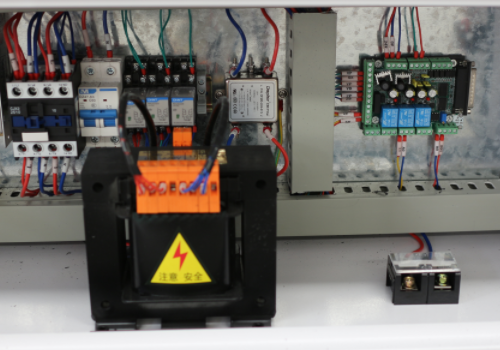

2.2kw Water cooled spindle | Weihong leading control system,Easy to operate | Hybrid servo motor improves the engraving accuracy of the machine |
|
|
|
| BEST inverter | Leadshin driver | Linear guides and sliders |
1. Woodworking
The processing of various wooden furniture, such as doors, windows, cabinets, craft wooden doors, screens, decorations, etc.
2. Advertising
Carving and cutting various advertising signs, logos, labels, and license plates.
3. Artwork
Carving any language and graphic text on gifts and souvenirs, 3D carving, relief and other craft gift making
Applicable materials:
Non metallic materials such as wood, aluminum plate, plastic, density board, PVC, acrylic, crystal, lightweight marble, and lightweight metallic materials.
Our factory:
- Name:
- small cnc router with atc
- Table Surface:
- Aluminium T slot table
- Xyz Working Area:
- 600*900mm
- Work Mode:
- Hybrid servo motor
- Spindle Power:
- 2.2 KW water cooling spindle with tool change
- Spindle Speed:
- 0-24000rmp
- Max.Working Speed:
- 0-25000mm/Min
- Working Voltage:
- AC220V or 380V
- Operating System:
- DSP/Mach3/Ncstudio control system
- Weight (Kg):
- 1000kg
