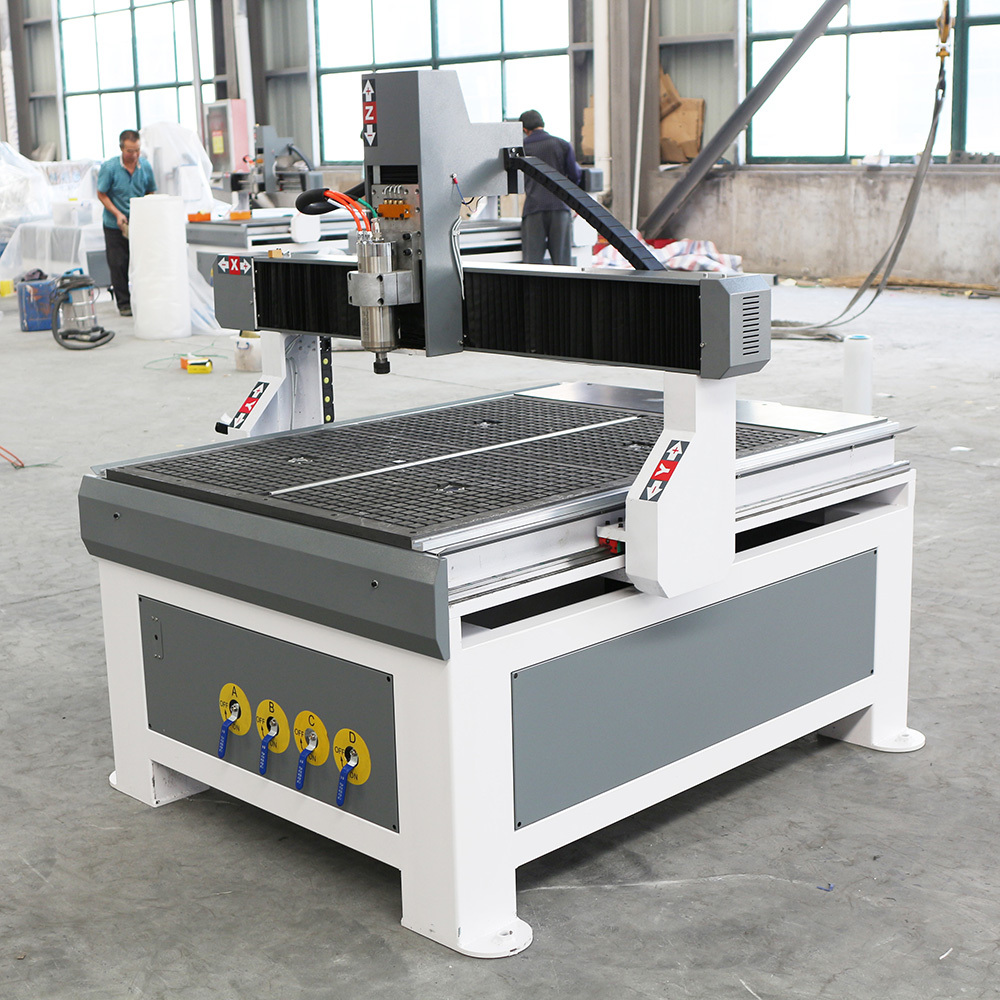

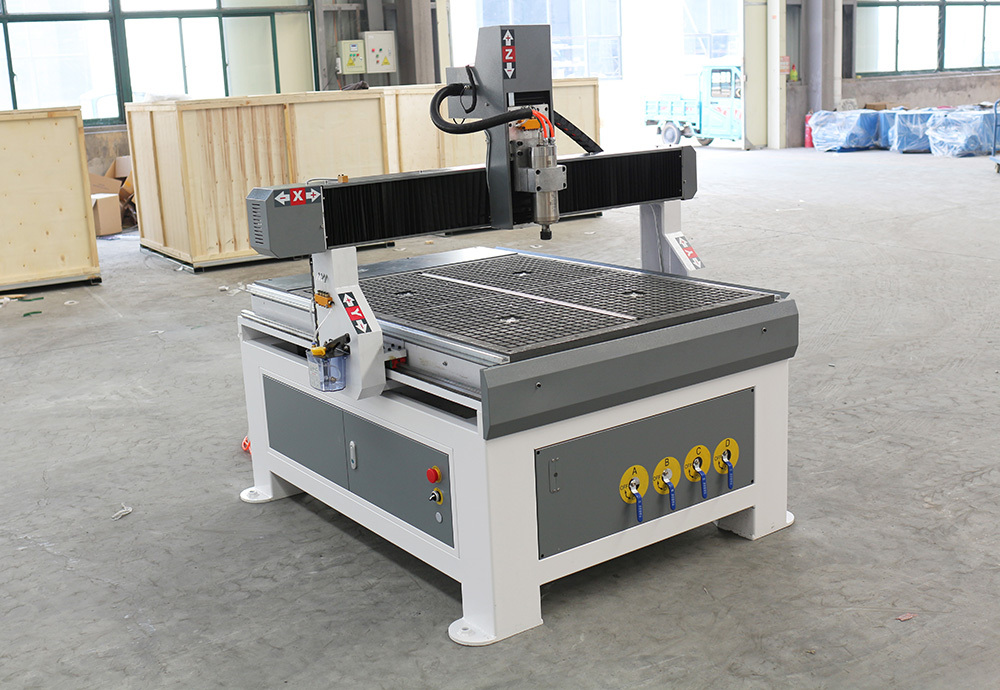

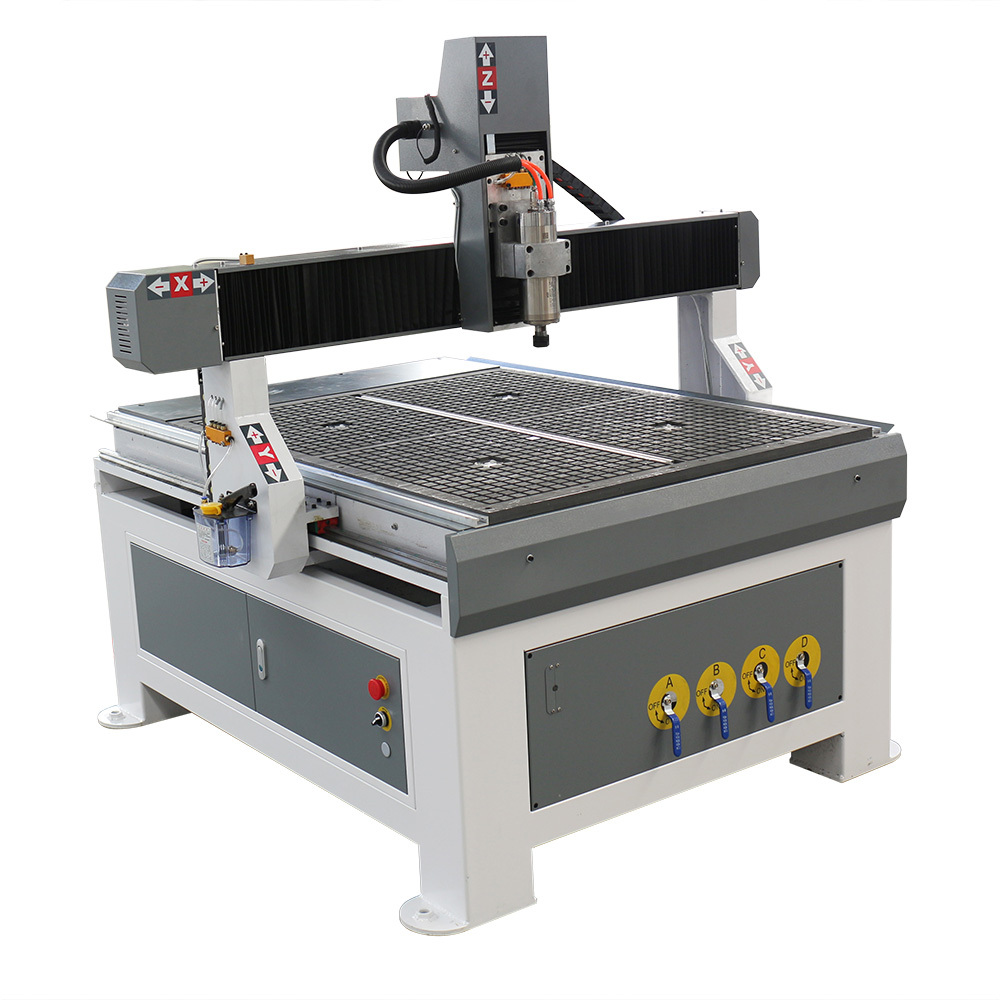

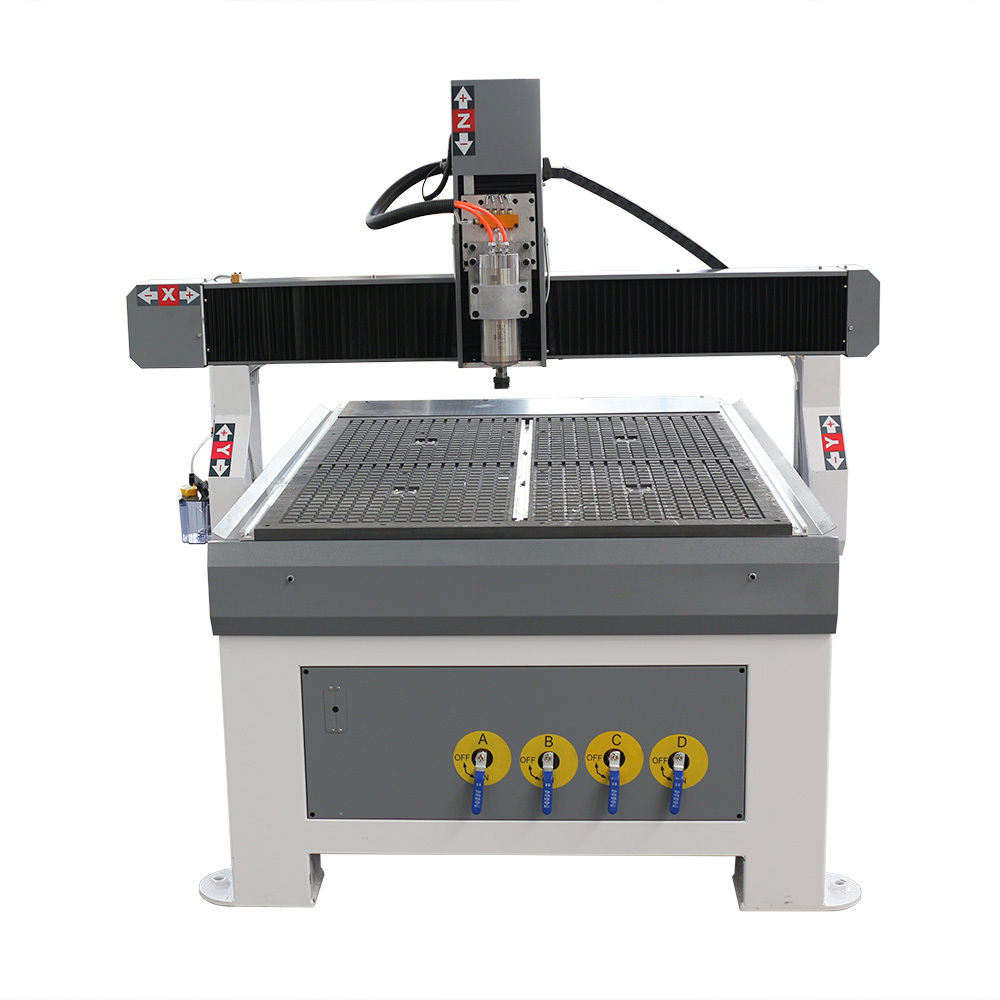

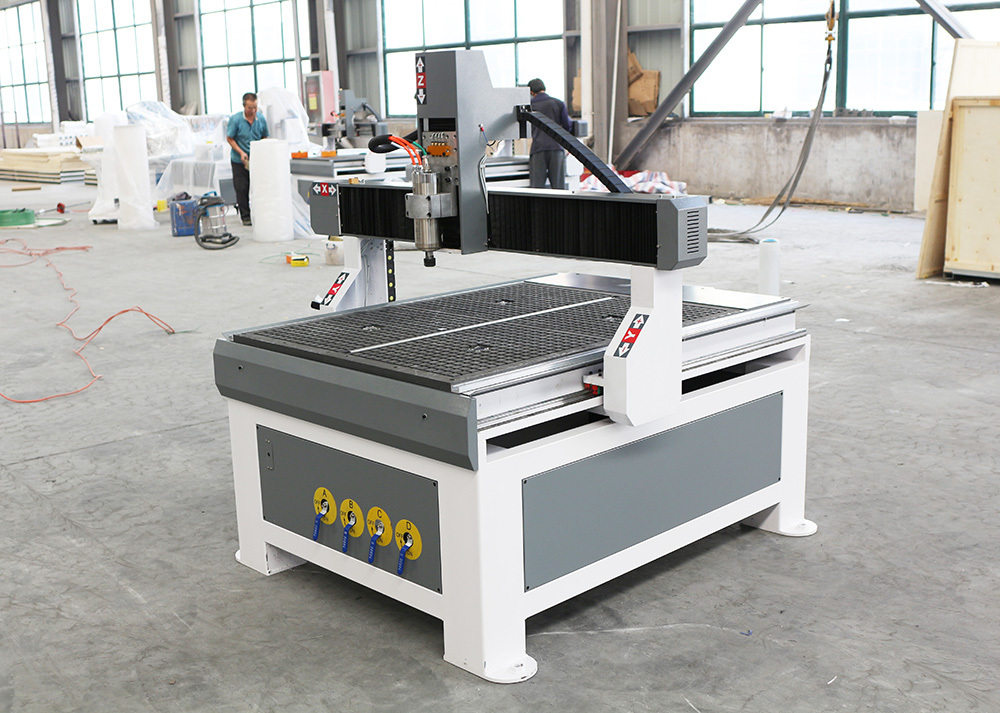

small cnc wood router
Characteristics of small cnc wood router 9012 machine:
1. The cast iron body design and three-axis ball screw transmission method provide fast speed, high precision, and simple maintenance
2. The internationally recognized CNC machining system is easy to operate and can receive data through a USB flash drive or network.
3. Hybrid servo motor and drives increases processing speed and accuracy, with low noise.

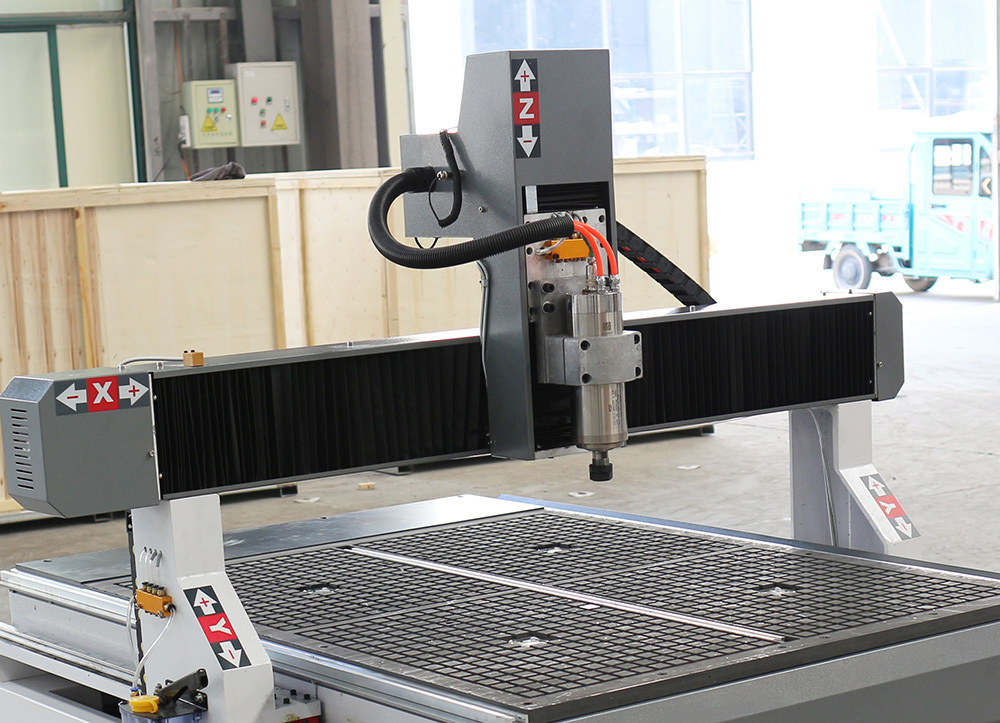

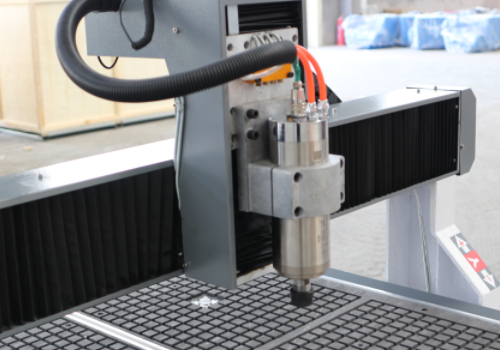

4. 2.2kw water cooling spindle, fast speed 0-24000rpm, low noise.
5. Imported high-precision linear track, running smoothly and with high precision.
6. The Z-axis adopts imported industrial grade ball screws for accurate positioning, making the processing effect more perfect.
7. Good software compatibility, compatible with various CAD/CAM design and production software such as TYPE3, Artcam, Jingdiao JD, Wentai Carving, UG, MasterCAM, PowerMill, etc.
Product Parameters：
| Description | Parameter |
| XYZ working area | 900*1200mm/1200*1200mm/1300*1300m*200mm |
| XYZ travel positioning accuracy | ±0.01/200mm |
| XYZ repositioning positioning accury | ±0.02mm |

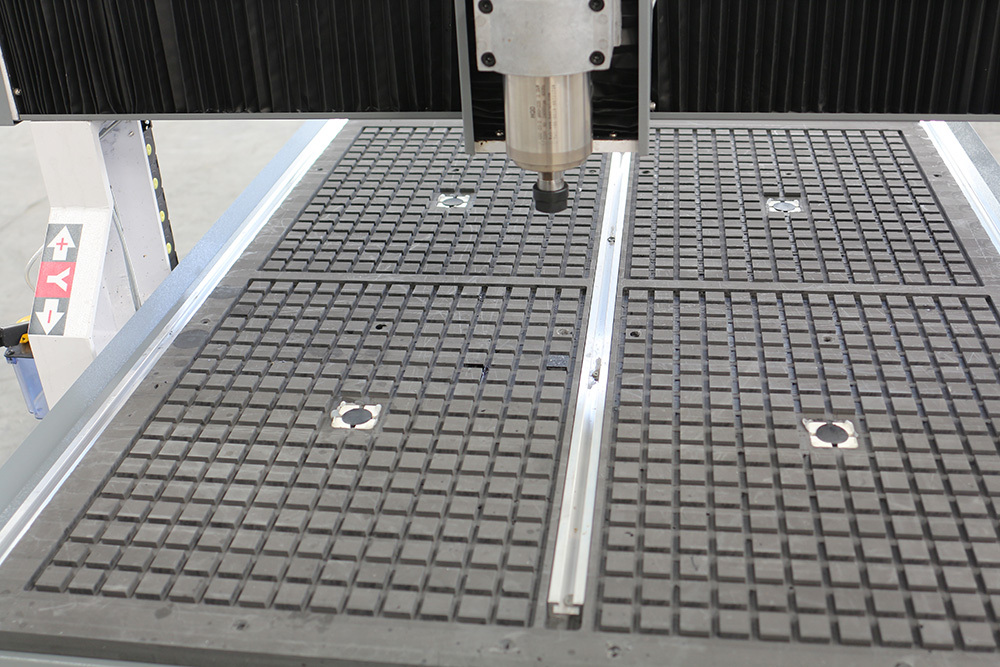

| Table surface | Vacuum table |
| Drive system X-Y axis | Rack actuation |
| Max velocity | 0-60000mm/min |
| Max working speed | 0-25000mm/min |
| Work mode | Hybrid servo motor |
| Working voltage | AC220V or 380V |
| Operating system | DSP/Weihong /Mach3 control System |
| X-Y resolution | <0.025mm |
| Gross weight | 400kg |
This small cnc wood router 9012 machine has multiple sizes to choose . We can customize the size, color, configuration, and appearance according to customer requirements.
Main accessories：
|
|
|
|
|
3.2kw Water cooled spindle | Weihong leading control system,Easy to operate | Hybrid servo motor improves the engraving accuracy of the machine |
|
|
|
| BEST inverter | Leadshin driver | Linear guides and sliders |
1. Woodworking
The processing of various wooden furniture, such as doors, windows, cabinets, craft wooden doors, screens, decorations, etc.
2. Advertising
Carving and cutting various advertising signs, logos, labels, and license plates.
3. Artwork
Carving any language and graphic text on gifts and souvenirs, 3D carving, relief and other craft gift making
Applicable materials:
Non metallic materials such as wood, aluminum plate, plastic, density board, PVC, acrylic, crystal, lightweight marble, and lightweight metallic materials.
Our factory:
- Name:
- small cnc wood router
- Table Surface:
- Vacuum Table
- Xyz Working Area:
- 900*1200mm/600*1200mm/1200*1200mm
- Work Mode:
- Hybrid servo motor
- Spindle Power:
- 2.2 KW water cooling spindle
- Spindle Speed:
- 0-24000rmp
- Max.Working Speed:
- 0-25000mm/Min
- Working Voltage:
- AC220V or 380V
- Operating System:
- DSP/Mach3/Ncstudio control system
- Weight (Kg):
- 400kg
